TP-LINK 3G/4G Omada N300-as VPN Router 3xWAN/LAN(1000Mbps) Kültéri, ER603WP-4G-OUTDOOR
TP-LINK 3G/4G Omada N300-as VPN Router 3xWAN/LAN(1000Mbps) Kültéri, ER603WP-4G-OUTDOOR

TP-LINK 3G/4G Omada N300-as VPN Router 3xWAN/LAN(1000Mbps) Kültéri, ER603WP-4G-OUTDOOR

Rendelhető
Cikkszám:
CS_396841
nettó: 75 260 Ft bruttó: 95 580 Ft
TP-LINK 3G/4G Omada N300-as VPN Router 3xWAN/LAN(1000Mbps) Kültéri, ER603WP-4G-OUTDOOR
Adatok
Gyártó:
TP-LINK
Gyártói cikkszám:
ER603WP-4G-OUTDOOR
Garancia:
60 hónap
Garancia (hónap):
60
Termék gyártója:
TP-LINK
Részletek
4G
Network Type LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz)
SIM Type 1 Nano SIM slot (CAT4 4G)
Frequency • Downlink: 150 Mbps
• Uplink: 50 Mbps
SECURITY
Access Control • Source/Destination IP Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL
DNS Proxy DNSSEC, DoH, DoT, DNS Override
Filtering • Web Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets
• ARP Scanning§
• IP-MAC Binding
• ARP Detection
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES

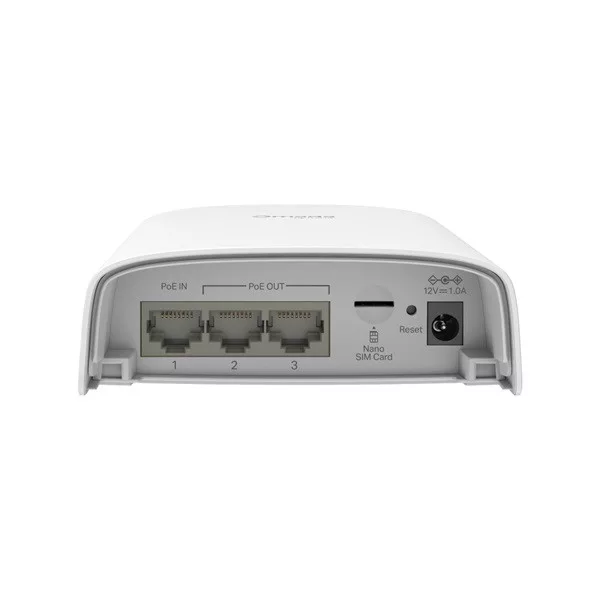

Interface 3 Gigabit WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply Passive/802.3af/at/bt PoE; 12V/1A Adapter
(A passive PoE adapter is provided)
Wi-Fi Frequency & Signal Rate 2.4 GHz: 300 Mbps
Flash 128 MB NAND
DRAM 256 MB DDR3
LED 4G Signal, WLAN. WAN/LAN, SYS
Dimensions ( W x D x H ) 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8mm)(excluding antennas)
Antenna 2 internal Wi-Fi antennas
2 external LTE antennas
Mounting Wall/Pole Mounting (Kits included)
Max. Power Consumption • 10 W without PoE
• 62 W with PoE
PERFORMANCE
Concurrent Session 50,000
New Sessions /Second 2,028
NAT (Static IP) 944.785 Mbps / 939.201 Mbps
NAT(DHCP) 944.545 Mbps / 927.491 Mbps
NAT(PPPoE) 939.278 Mbps / 928.516 Mbps
NAT (L2TP) 432.126 Mbps / 355.712 Mbps
NAT (PPTP) 513.104 Mbps / 457.323 Mbps
66 Byte Packet Forwarding Rate 1,419,519 pps / 1,418,731 pps
1,518 Byte Packet forwarding rate 81,068 pps / 81,068 pps
IPsec VPN Throughput • ESP-SHA1-AES256: 192.432 Mbps
• ESP-SHA256-AES256: 195.445 Mbps
• ESP-SHA384-AES256: 48.55 Mbps
• ESP-SHA512-AES256: 48.363 Mbps
GRE • Unencrypted: 425.292 Mbps
• Encrypted: 164.058 Mbps
WireGuard VPN 50.175 Mbps
OpenVPN 11.369 Mbps
L2TP VPN Throughput • Unencrypted: 370.822 Mbps
• Encrypted: 144.05 Mbps
PPTP VPN Throughput • Unencrypted: 408.038 Mbps
• Encrypted: 35.912 Mbps
WIRELESS FEATURES
Advanced Features • WPA/WPA2 Personal, WPA/WPA2 Enterprise
• Multiple SSIDs: 8 in total (8 per radio)
• Rate Limit: Based on SSID/Client
Guest Network Support
BASIC FUNCTIONS
LAN DNS LAN DNS
WAN Connection Type • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Clone Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server§
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• WAN DHCP 60
Stateful ACL ?
Quality of Service ?
Bridge VLAN ?
SMS Receive/Send SMS
mDNS Repeater ?
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Bandwidth Control IP-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
• Disable NAT
Routing • Static Routing
• Policy Routing
• RIP§
• OSPF§
Session Limit IP-based Session Limit
VPN
GRE ? (Only in Standalone Mode)
SD-WAN ? (Only in Controller Mode)
IPsec VPN • 6 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec
• Failover
• IKE v1/v2
• MD5, SHA1, SHA-256, SHA2-384, SHA2-256 and SHA2-512
• Authentication Algorithm NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (6)
• 6 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (6)
• 6 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (3)
• 18 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN ?
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password
• Hotspot (Local User / Voucher# / SMS# / Radius#)
• External Radius Server
• External Portal Server#
• LDAP
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Management Features Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHERS
Certification CE, RoHS
Package Content • ER603WP-4G-Outdoor
• Mounting Kits
• Passive PoE Adapter
• Quick Installation Guide
Environment • Operating Temperature: -30°C–60 °C (-22 °F–140 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 5%–95% non-condensing
• Storage Humidity: 5%–90% non-condensing
