Connector(s)

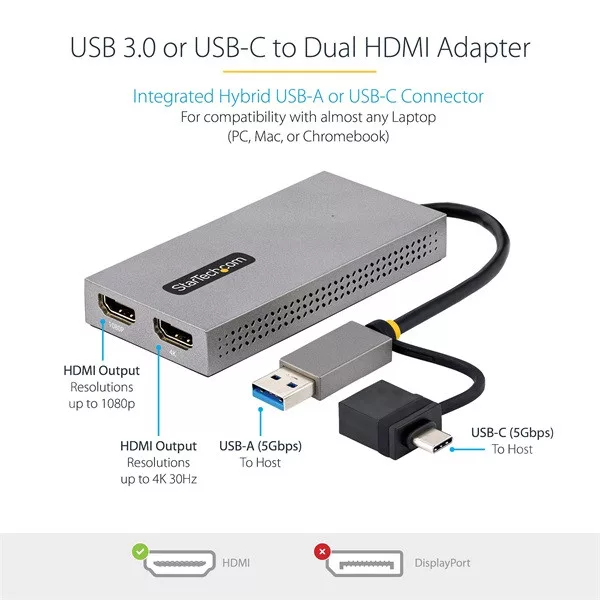

Connector A
1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Connector B
2 - HDMI (19 pin)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% to 90% RH
Hardware
AV Input
USB-C
USB 3.2 Gen 1 (5Gbps)
Ports
2
AV Output
HDMI - 1.4
USB Pass-Through
No
Memory
8Gb DDR3
Chipset ID
Silicon Motion - SM768
Indicators
LED Indicators
1 - Power (Blue)
Packaging Information
Package Length
6,8 in [17,2 cm]
Package Width
5,6 in [14,3 cm]
Package Height
1,2 in [3,0 cm]
Shipping (Package) Weight
5,7 oz [162,0 g]
Package Quantity
1
Performance
Maximum Digital Resolutions
3840 x 2160 @ 30Hz
Supported Resolutions
Output 1:
3840×2160, 2560×1440, 1920×1080, 1600×900, 1280×720
Output 2:
1920 x 1080, 1600 x 900, 1280x720
Other lower resolutions may be supported
Wide Screen Supported
Yes
Audio Specifications
HDMI - 2 Channel Audio
Physical Characteristics
Color
Gray
Product Length
10,8 in [27,5 cm]
Product Width
2,0 in [5,0 cm]
Product Height
0,6 in [1,5 cm]
Weight of Product
3,0 oz [86,0 g]
Material
Plastic
Cable Length
4,3 in [11 cm]
Power
Power Source
Bus Powered
Software
OS Compatibility
Windows 7
Windows 8.1
Windows 10
Windows 11
macOS Mojave (10.14)
macOS Catalina (10.15)
macOS Big Sur (11.0)
macOS Monterey (12.0)
macOS Ventura (13.0)
macOS Sonoma (14.0)
Chrome OS
Special Notes / Requirements
System and Cable Requirements
Manual driver installation is required for macOS
Note
This device is HDCP compliant, and will not playback copy protected content
What's in the Box
Included in Package

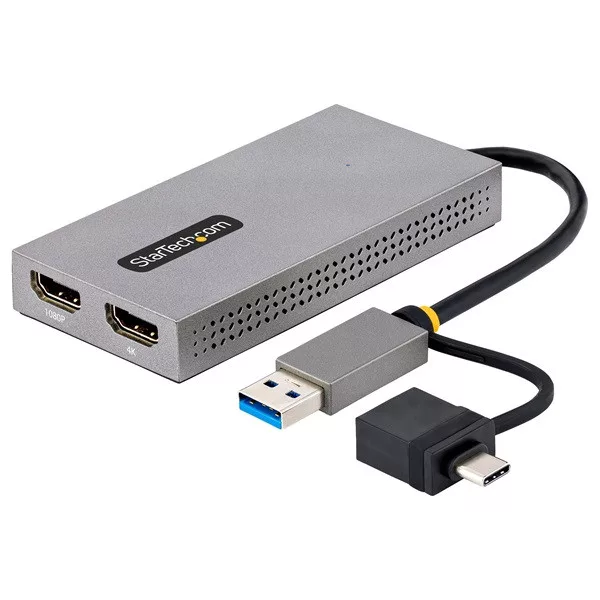

1 - USB-A/USB-C to Dual HDMI Adapter
1 - Quick-Start Guide
