Model
DUAL-RX9060XT-16G
Graphic Engine
AMD Radeon™ RX 9060 XT
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6
Engine Clock
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)
Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)
Stream Processors
2048
Memory Speed
20 Gbps?
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320

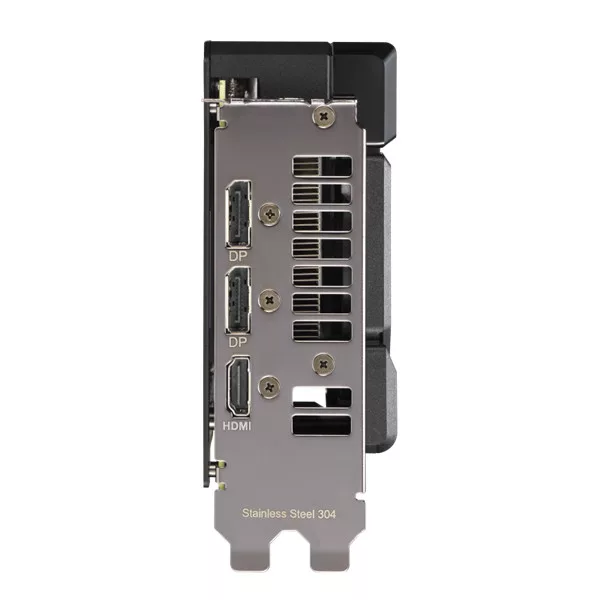

Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 2 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)
Maximum Display Support
3
NVlink/ Crossfire Support
No
Accessories
1 x Thank you card
1 x Speedsetup Manual
Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
202 x 120 x 49mm
Recommended PSU
550W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
