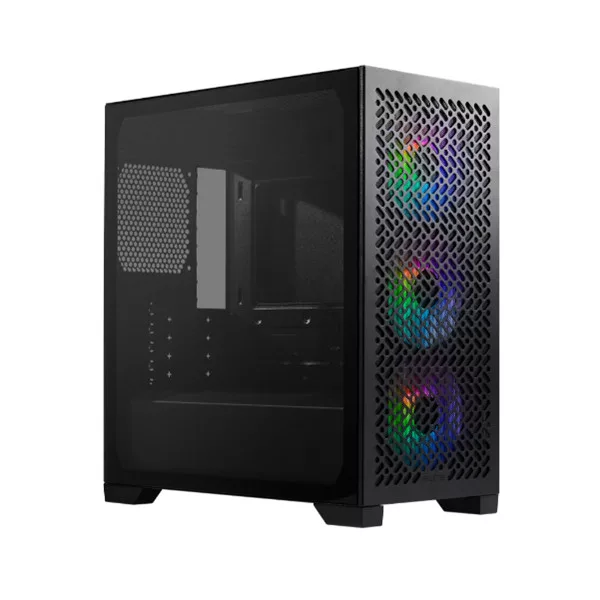

Model NumberELITE 302: E302-KGNN-S00
Model NumberELITE 302 White: E302-WGNN-S00
Exterior ColorBlack, White
Materials - ExteriorSteel
Materials - Side panel (Right / Left)TG / Steel
Dimensions (L x W x H)390 x 203.5 x 430mm? (Incl. Protrusions), 377 x 203.5 x 410mm? (Excl. Protrusions)
Volume (incl. Protrusions)34.13L?
Motherboard SupportMini-ITX, Micro-ATX
Expansion Slots4
5.25" Drive BaysN/A
3.5" Drive Bays1
2.5" Drive Bays1 (Max. 2)
I/O Panel - USB Ports1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C?
I/O Panel - Audio In / Out1x 3.5mm Combo (Audio + Mic)?
Fan Support - Front3x 120mm
Fan Support - Top2x 120mm / 2x 140mm
Fan Support - Rear1x 120mm
Pre-installed Fans - FrontBlack: 3x 120mm ARGB Black??, White: 3x 120mm ARGB White
Pre-installed Fans - TopN/A
Pre-installed Fans - RearN/A
Radiator Support - Front120 / 240 / *360 mm (*Supported within 60mm thickness)?
Radiator Support - Top120 / 140 / 240 / 280mm
Radiator Support - Rear120mm
Clearance - CPU Cooler163.5mm
Clearance - PSU160mm
Clearance - GFX365mm (without front fans & radiator)
Cable Routing18.5mm
Dust FiltersTop / Bottom / Front
Power Supply SupportATX
Warranty2 years
SizeMini Tower
SeriesElite Series
