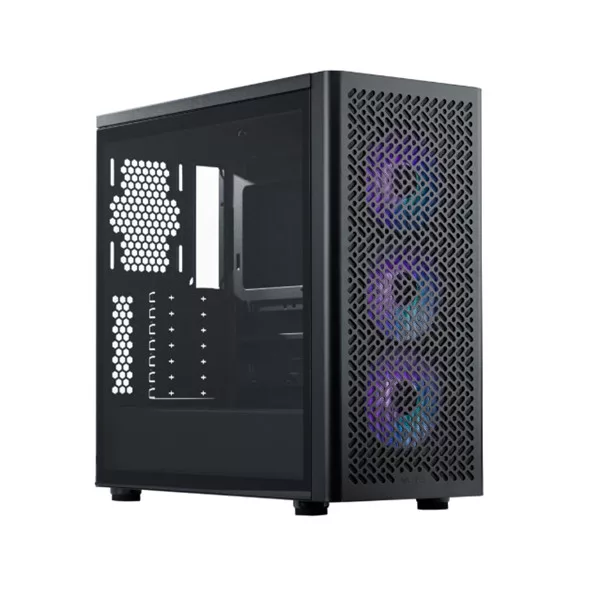

Product NameELITE 502
Product NameELITE 502 White
Model NumberELITE 502: E502-KGNN-S00
Model NumberELITE 502 White: E502-WGNN-S00
Color(s)ELITE 502: Black / ELITE 502 White: White
Materials - ExteriorSteel
Materials - Right Side PanelSteel
Materials - Left Side PanelTG
Dimensions (L x W x H)474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)
Volume (incl. Protrusions)49.73 L
Motherboard SupportITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots7
5.25" Drive BaysN/A
3.5" Drive Bays2
2.5" Drive Bays2 (Max.6)
I/O Panel - USB Ports1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C?
I/O Panel - Audio In / Out3.5 mm Combo x 1
Fan Support - Front(Filtered) 140 mm x 3 / 120 mm x 3
Fan Support - Top(Filtered) 140 mm x 2 / 120 mm x 3
Fan Support - Rear1x 120mm
Pre-installed Fans - Front3x 120mm ARGB Fans
Pre-installed Fans - TopN/A
Pre-installed Fans - RearN/A
Radiator Support - Front120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
Radiator Support - Top120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear120mm
Clearance - CPU Cooler170mm
Clearance - PSU170 / 210mm (w/o HDD Cage)
Clearance - Graphics Card (installed 3.5"HDD BRK)360 / 410 mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray33-35 mm
Dust FiltersTop, Front, Bottom
Power Supply SupportATX
Warranty2 years
SeriesElite Series
SizeMid Tower
