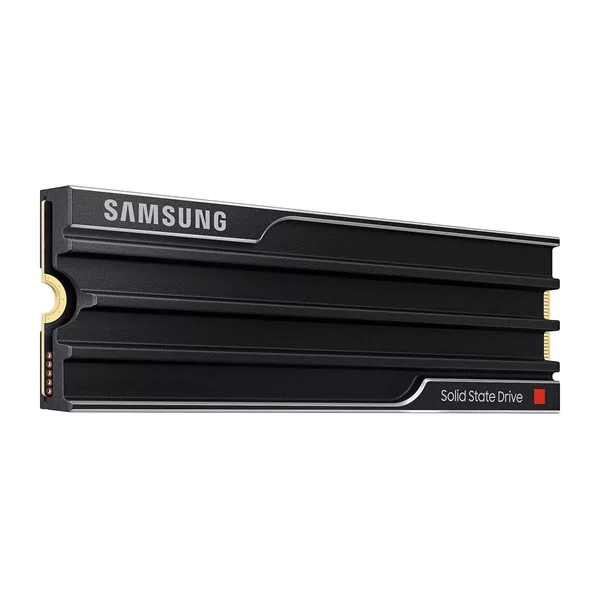

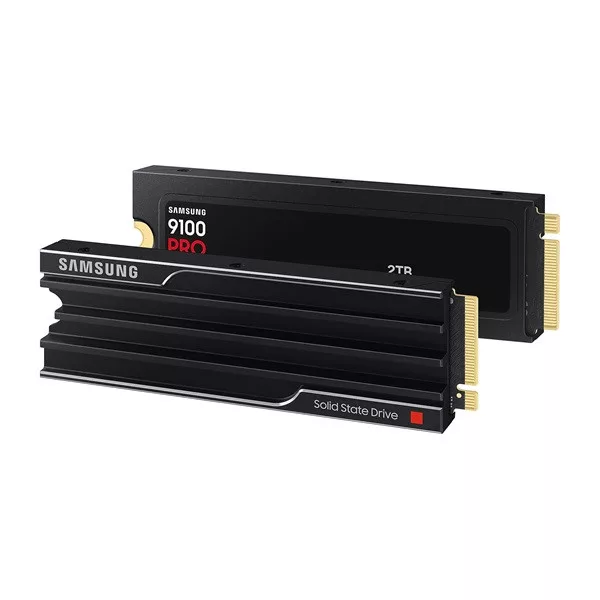

SAMSUNG 9100 PRO with Heatsink PCIe 5.0 NVMe™ M.2 SSD 2TB

• Application: Client PCs, Game Consoles

• ---

  Capacity: 2,000GB (1GB=1 Billion byte by IDEMA)

  * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

• ---

  Form Factor: M.2 (2280)

• ---

  Interface: PCIe® 5.0 x4, NVMe™ 2.0

• ---

  Dimension (WxHxD): Max 80.15 x Max 25 x Max 8.88mm (with Heatsink)

• ---

  Weight: Max 30.0g Weight

• ---

  Storage Memory: Samsung V-NAND TLC

• ---

  Controller: Samsung in-house Controller

• ---

  Cache Memory: Samsung 2GB Low Power DDR4X SDRAM

  ---



• TRIM Support: Supported

• ---

  S.M.A.R.T Support: Supported

• ---

  GC (Garbage Collection): Auto Garbage Collection Algorithm

• ---

  Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

• ---

  WWN Support: Not supported

• ---

  Device Sleep Mode Support: Yes

  ---

  .

• Sequential Read: Up to 14,700 MB/s

  * Performance may vary based on system hardware & configuration

• ---

  Sequential Write: Up to 13,400 MB/s

  * Performance may vary based on system hardware & configuration

• ---

  Random Read (4 KB, QD32): Up to 1,850,000 IOPS

  * Performance may vary based on system hardware & configuration

• ---

  Random Write (4KB, QD32): Up to 2,600,000 IOPS

  * Performance may vary based on system hardware & configuration

  ---



• Average Power Consumption (system level): Average: Read 8.1 W / Write 7.9 W*

  * Actual power consumption may vary depending on system hardware & configuration

• ---

  Power consumption (Idle): Typical 4.8 mW

  * Actual power consumption may vary depending on system hardware & configuration

• ---

  Power consumption (Device Sleep): Typical 4 mW

            * Actual power consumption may vary depending on system hardware & configuration

• ---

  Allowable Voltage: 3.3 V ± 5 % Allowable voltage

• ---

  Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)

• ---

  Operating Temperature: 0 - 70 °C Operating Temperature

• ---

  Shock: 1,500 G & 0.5 ms (Half sine)

  ---

  .

• Installation Kit: Not Available

  ---

  .

• Management SW: Magician Software for SSD management

  ---

  .

• 5-Year Limited Warranty or 1.200 TBW Limited Warranty

  ---

  .
