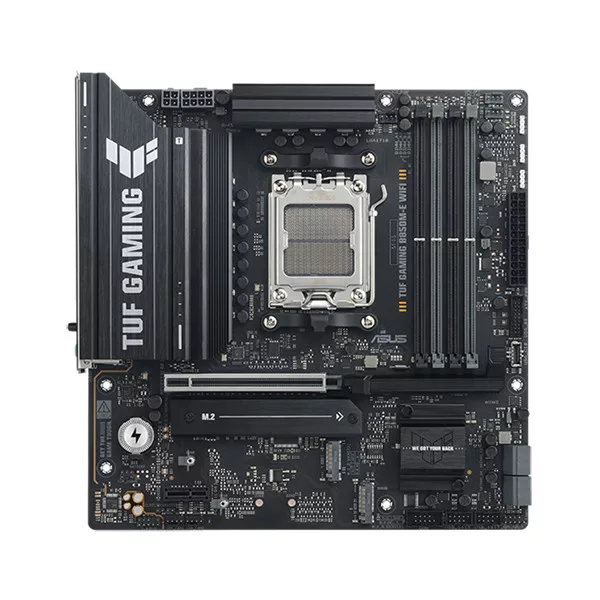

ASUS Alaplap AM5 TUF GAMING B850M-E WIFI AMD B850, mATX

Name: ASUS Alaplap AM5 TUF GAMING B850M-E WIFI AMD B850, mATX
Brand: ASUS PCC
SKU: CS_385856
Price: 77590 HUF
Availability: InStock

Központi készleten, szállítás 2-3 nap!

Cikkszám:

CS_385856

Megtakarítás: 29 530 Ft

RRP: 84 346 Ft + Áfa - 107 120 Ft

61 094 Ft + Áfa - 77 590 Ft

Raktárkészletek

Központi készleten 8 db

ASUS Alaplap AM5 TUF GAMING B850M-E WIFI AMD B850, mATX

Adatok

Gyártó:

ASUS PCC

Gyártói cikkszám:

TUF GAMING B850M-E WIFI

EAN:

4711636068499

EAN:

4711636068499

Garancia:

36 hónap

Wireless:

Van

HDMI:

Van

D-Sub:

Nincs

Kivitel:

Dobozos

Memória órajel:

5200

Memória típus:

DDR5

DVI:

Nincs

Chipset gyártó:

AMD

Display Port:

Van

Thunderbolt:

Nincs

USB 2.0:

USB 3.0:

USB 3.1:

Párhuzamos port:

Nincs

Soros port:

Nincs

Foglalat típusa:

AM5

SATA III:

Quad Channel:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16

Form Factor:

mATX

LAN1:

100/1000/2500 Mb/s

Max memória:

256

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nincs

SATA II:

Garancia (hónap):

Termék gyártója:

ASUS PCC

Gyártó:

ASUS

Tömeg:

1,58 kg/db

Részletek

Model

TUF GAMING B850M-E WIFI

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset

AMD B850 Chipset

Memory

4 x DIMM slots, Max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

2 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x Chassis Intrusion header

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- DIGI+ VRM
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
