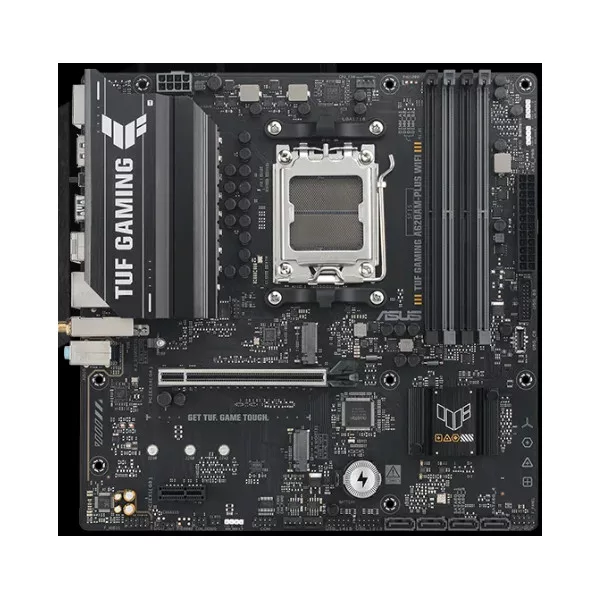

ASUS Alaplap AM5 TUF GAMING A620AM-PLUS WIFI AMD A620, mATX

Name: ASUS Alaplap AM5 TUF GAMING A620AM-PLUS WIFI AMD A620, mATX
Brand: ASUS PCC
SKU: CS_385861
Price: 52820 HUF
Availability: InStock

Központi készleten, szállítás 2-3 nap!

Cikkszám:

CS_385861

Megtakarítás: 4 160 Ft

RRP: 44 866 Ft + Áfa - 56 980 Ft

41 591 Ft + Áfa - 52 820 Ft

Raktárkészletek

Központi készleten 17 db

ASUS Alaplap AM5 TUF GAMING A620AM-PLUS WIFI AMD A620, mATX

Adatok

Gyártó:

ASUS PCC

Gyártói cikkszám:

TUF GAMING A620AM-PLUS WIFI

EAN:

4711636231817

EAN:

4711636231817

Garancia:

36 hónap

Wireless:

Van

HDMI:

Van

D-Sub:

Nincs

Kivitel:

Dobozos

Memória órajel:

5200

Memória típus:

DDR5

DVI:

Nincs

Chipset gyártó:

AMD

Display Port:

Van

Thunderbolt:

Nincs

USB 2.0:

USB 3.0:

USB 3.1:

Párhuzamos port:

Nincs

Soros port:

Nincs

Foglalat típusa:

AM5

SATA III:

Quad Channel:

Nincs

M.2 foglalat:

Van

Audio:

7.1 HD

Grafikus foglalat:

PCI-Ex16

Form Factor:

mATX

LAN1:

100/1000/2500 Mb/s

Max memória:

256

Memória foglalatok száma:

Raid:

Igen

PS/2 Port:

PCI foglalatok száma:

PCI-E foglalatok száma:

VGA integrált:

Nincs

SATA II:

Garancia (hónap):

Termék gyártója:

ASUS PCC

Gyártó:

ASUS

Tömeg:

1,37 kg/db

Részletek

Model

TUF GAMING A620AM-PLUS WIFI

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

CPU

AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD A620A Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5 ECC and Non-ECC Un-buffered DIMM*
Supports up to 7600+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

2 x DisplayPort**
1 x HDMI^™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen^™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620A Chipset
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen^™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
AMD A620A Chipset
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.

RAID Support

AMD RAIDXpert2 Technology*
Ryzen^™ 9000 Series Processors: RAID 0/1/5/10
Ryzen^™ 8000 Series Processors: RAID 0/1
Ryzen^™ 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth^® v5.3*
* The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI^™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^™ button
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack^™ button
- BIOS FlashBack^™ LED
Aura Sync
- Addressable RGB Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS DriverHub
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O shield
2 x Screw packages for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
