ASUS Alaplap AM4 TUF GAMING B550-PLUS AMD B550, ATX
ASUS Alaplap AM4 TUF GAMING B550-PLUS AMD B550, ATX

ASUS Alaplap AM4 TUF GAMING B550-PLUS AMD B550, ATX

Rendelhető
Cikkszám:
CS_284658
52 393 Ft + Áfa - 66 539 Ft
ASUS Alaplap AM4 TUF GAMING B550-PLUS AMD B550, ATX
Adatok
Gyártó:
ASUS PCC
Gyártói cikkszám:
TUF GAMING B550-PLUS
EAN:
4718017749435
EAN:
4718017749435
Garancia:
36 hónap
Wireless:
Nincs
HDMI:
Van
D-Sub:
Nincs
Kivitel:
Dobozos
Memória órajel:
3200
Memória típus:
DDR4
DVI:
Nincs
Chipset gyártó:
AMD
Display Port:
Van
Thunderbolt:
Nincs
USB 2.0:
6
USB 3.0:
0
USB 3.1:
8
Párhuzamos port:
Nincs
Soros port:
Nincs
Foglalat típusa:
AM4
SATA III:
6
Quad Channel:
Nincs
M.2 foglalat:
Van
Audio:
7.1 HD
Grafikus foglalat:
2 x PCI-Ex16x
Form Factor:
ATX
LAN1:
100/1000/2500 Mb/s
Max memória:
128
Memória foglalatok száma:
4
Raid:
Igen
PS/2 Port:
0
PCI foglalatok száma:
0
PCI-E foglalatok száma:
3
VGA integrált:
Nincs
Garancia (hónap):
36
Termék gyártója:
ASUS PCC
Gyártó:
ASUS
Tömeg:
1,1 kg/db
Részletek
  • CPU
    Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B550
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
    Next Generation AMD Ryzen PRO Processors
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic

    1 x DisplayPort 1.4 **
    1 x HDMI 2.1(4K@60HZ)
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    AMD B550 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    3 x PCIe 3.0 x1 *1
    * Support PCIe bifurcation for RAID on CPU function.
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    AMD B550 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
    6 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Realtek RTL8125B 2.5Gb Ethernet
    TUF LANGuard
  • Wireless Data Network
    M.2 slot only (Key E) (Support PCIe interface)*
    *Wi-Fi module is sold separately.
  • Audio
    Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Exclusive DTS Custom for GAMING Headsets.
    - Optical S/PDIF out port(s) at back panel
    - Audio cover
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
    - Unique de-pop circuit
  • USB Ports
    Rear USB Port ( Total 8 )
    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
    4 x USB 3.2 Gen 1 port(s)( x Type-A)
    2 x USB 2.0 port(s)( x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - AI Noise Cancelling Microphone
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 2+
    - EZ update
    TUF GAMING CPU-Z
    AI Charger
    ASUS Turbo LAN
    DAEMON Tools
    DTS Custom for GAMING Headsets
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS TUF PROTECTION
    - ASUS DIGI+ VRM (Digital power design with Dr. MOS)
    - ASUS Enhanced DRAM Overcurrent Protection
    - ASUS ESD Guards
    - TUF LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum M.2 heatsink
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - Procool
    AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB header

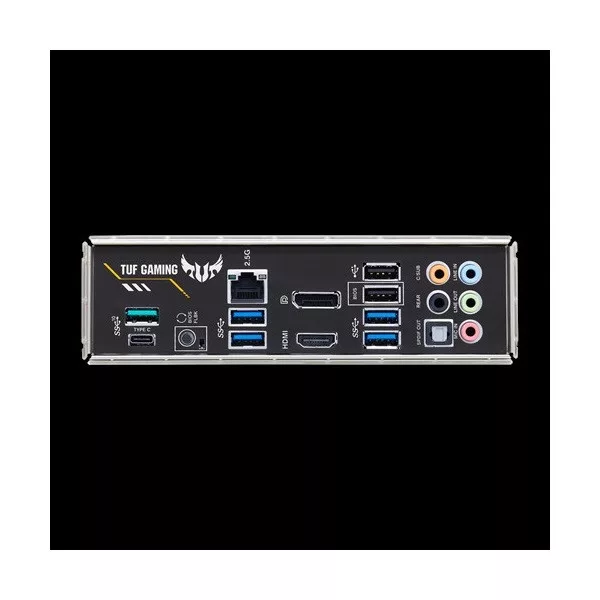

  • Back I/O Ports
    1 x DisplayPort
    1 x HDMI
    1 x LAN (2.5G) port(s)
    2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x BIOS FlashBack™ Button(s)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 with E key for Wi-Fi module
    1 x SPI TPM header
    6 x SATA 6Gb/s connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x TUF Gaming Sticker
    1 x TUF Certification card(s)
    1 x M.2 SSD screw package(s)
    1 x M.2 Rubber Package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
    *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
