| W371 |
|
| Bright projection |
|
| |
|
| |
|
| Specification |
|
| Display/image |
|
| Display technology |
DLP |
| Resolution |
WXGA (1280x800) |
| Brightness |
3,800 lumens |
| Contrast ratio |
25,000:1 |
| Native aspect ratio |
16:10 |
| Aspect ratio - compatible |
4:3, 16:9 |
| Keystone correction - vertical |
+/-40° |
| Horizontal scan rate |
15.38 ~ 91.15Khz |
| Vertical scan rate |
50 ~ 85(120 for 3D)Hz |
| Uniformity |
75% |
| Screen size |
0.82m ~ 7.61m (32.24" ~ 299.53") diagonal |
| |
|
|
|
| |
|
| Lamp info |
|
| Light source type |
Lamp |
| Lamp watts |
203 |
| Lamp life hours (up to) |
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+) |
| |
|
|
|
| |
|
| Optical |
|
| Throw ratio |
1.55:1 ~ 1.73:1 |
| Projection distance (m) |
1m - 12m |
| Zoom |
1.1 |
| Zoom type |
Manual |
| Focal length (mm) |
21.85 ~ 24 |
| Native offset |
112% |
| |
|
|
|
| |
|

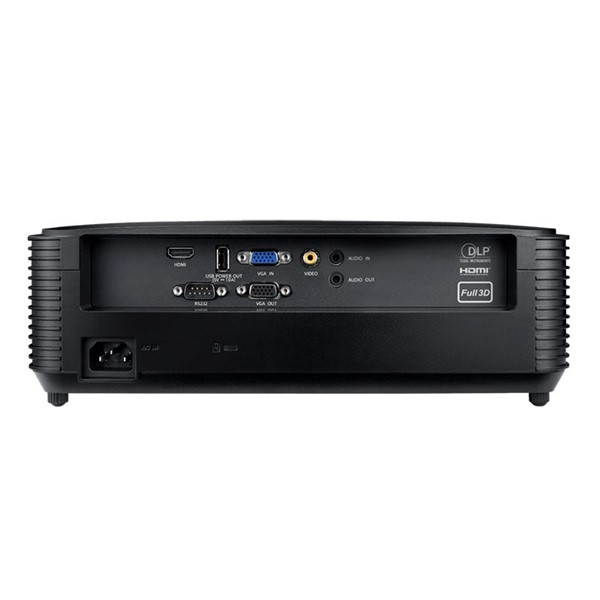

| Connectivity |
|
| Connections |
Inputs 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm |
| |
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1A |
| |
Control 1 x RS232 |
| |
|
|
|
| |
|
| General |
|
| Noise level (typical) |
27dB |
| Noise level (max) |
29dB |
| PC compatibility |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 2D compatibility |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
| 3D compatibility |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| 3D |
Full 3D |
| Security |
Security bar, Kensington Lock, Password protected interface |
| OSD / display languages |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| Operating conditions |
5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m |

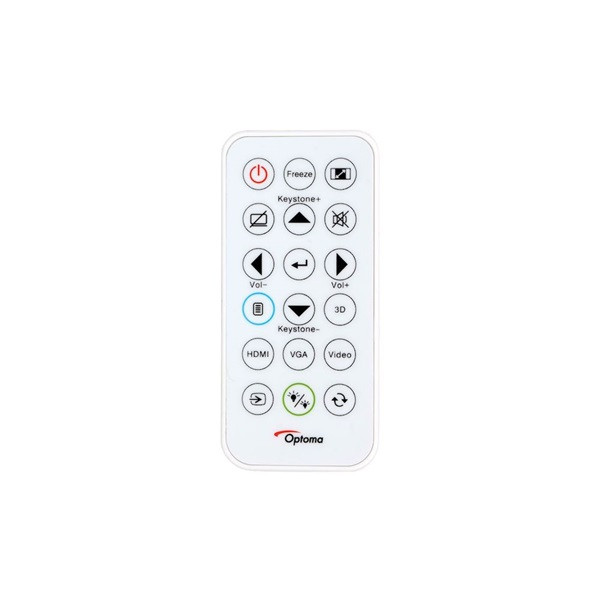

| Remote control |
Card style |
| Speaker count |
1 |
| Watts per speaker |
10W |
| In the box |
AC power cord, Remote control, Battery, Basic user manual |
| Optional wireless models |
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200 |
| |
|
|
|
| |
|
| Power |
|
| Power supply |
100 ~ 240V, 50 ~ 60Hz |
| Power consumption (standby) |
0.5W |
| Power consumption (min) |
187W |
| Power consumption (max) |
225W |
| |
|
|
|
| |
|
| Weight and dimensions |
|
| Dimensions (W x D x H) mm |
316 x 244 x 108 |
| Gross weight |
4.4 kg |
| Net weight |
3 kg |
