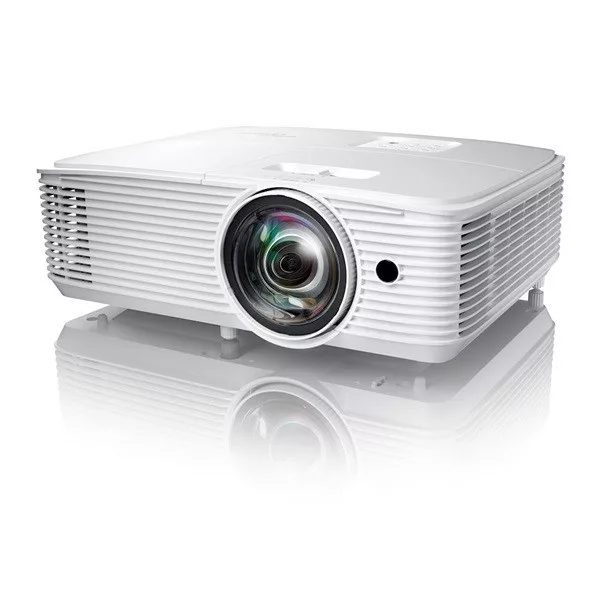

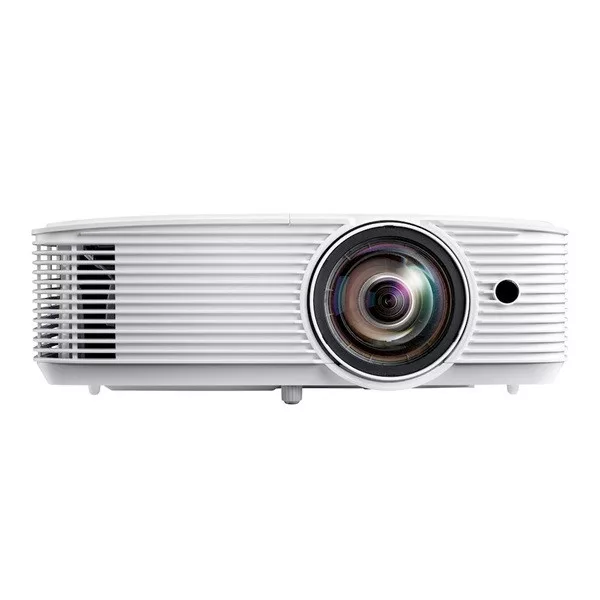

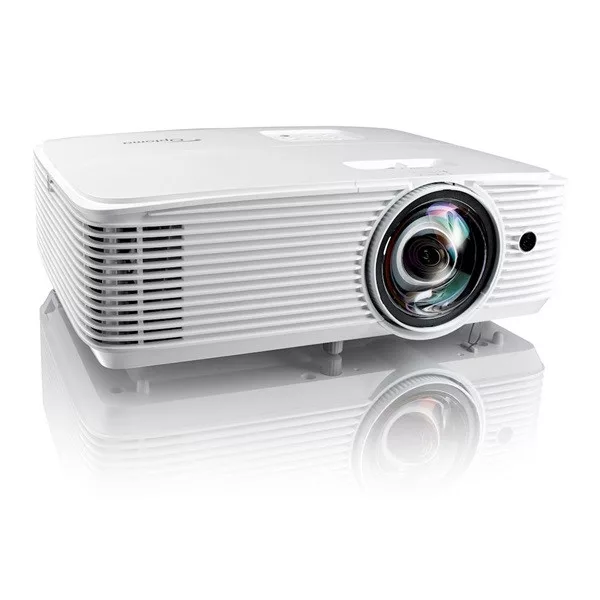

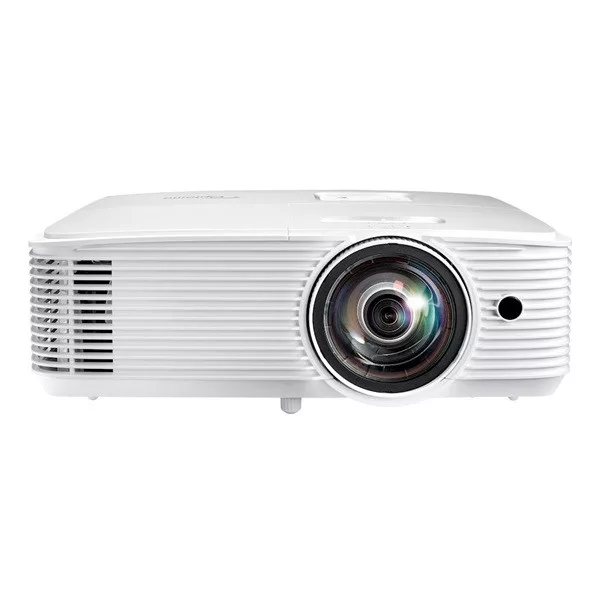

| W309ST |
|
|
| Short throw, bright and compact projector |
|
| |
|
|
| |
|
|
| Specification |
|
|
| |
|
|
|
Display/image
|
|
Resolution
|
| |
DLP™
|
WXGA (1280x800)
|
| |
|
|
| |
Brightness
|
Contrast ratio
|
| |
3,800 lumens
|
25,000:1
|
| |
|
|
| |
Native aspect ratio
|
Aspect ratio - compatible
|
| |
16:10
|
4:3,16:9 |
| |
|
|
| |
Keystone correction - vertical
|
Horizontal scan rate
|
| |
+/-40°
|
15.38 ~ 91.15Khz
|
| |
|
|
| |
Vertical scan rate
|
Uniformity
|
| |
50 ~ 85(120 for 3D)Hz
|
75%
|
| |
|
|
| |
Screen size
|
|
| |
0.91m ~ 7.7m (35.64" ~ 302.98") diagonal
|
|
| |
|
|
|
|
|
| |
|
|
|
Lamp info
|
|
Lamp watts
|
| |
Lamp
|
240
|
| |
|
|
| |
Lamp life hours (up to)
|
|
| |
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
|
|
| |
|
|
|
|
|
| |
|
|
|
Optical
|
|
Projection distance (m)
|
| |
0.52:1 |
0.4m - 3.4m
|
| |
|
|
| |
Focal length (mm)
|
Native offset
|
| |
7.51
|
112%
|
| |
|
|
|
|
|
| |
|
|
|
Connectivity
|
|
|
| |
Inputs 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm
|
| |
Outputs 1 x VGA, 1 x Audio 3.5mm, 1 x USB-A power 1A |
|
| |
Control 1 x RS232 |
|
| |
|
|
|
|
|
| |
|
|
|
General
|
|
Noise level (max)
|
| |
26dB
|
28dB
|
| |
|
|
| |
PC compatibility
|
2D compatibility
|
| |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| |
|
|
| |
3D compatibility
|
3D
|
| |
Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60
|
Full 3D
|
| |
|
|
| |
Security
|
OSD / display languages
|
| |
Security bar,
Kensington Lock,
Password protected interface
|
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| |
|
|
| |
Operating conditions
|
Remote control
|
| |
5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m
|
Card style
|
| |
|
|
| |
Speaker count
|
Watts per speaker
|
| |
1
|
10W
|
| |
|
|
| |
In the box
|
Optional wireless models
|
| |
AC power cord, Remote control, Battery, Basic user manual
|
HDCast Pro, QuickCast Bundle, QuickCast starter kit, WHD200
|
| |
|
|
|
|
|
| |
|
|
|
Power
|
|
Power consumption (standby)
|
| |
100 ~ 240V, 50 ~ 60Hz
|
0.5W
|
| |
|
|
| |
Power consumption (min)
|
Power consumption (max)
|
| |
187W
|
225W
|
| |
|
|
|
|
|
| |
|
|
|
Weight and dimensions
|
Dimensions (W x D x H) mm
|
Gross weight
|
| |
316 x 244 x 108
|
3.83 kg
|
| |
|
|
| |
Net weight
|
|
| |
3.25 kg
|
|
