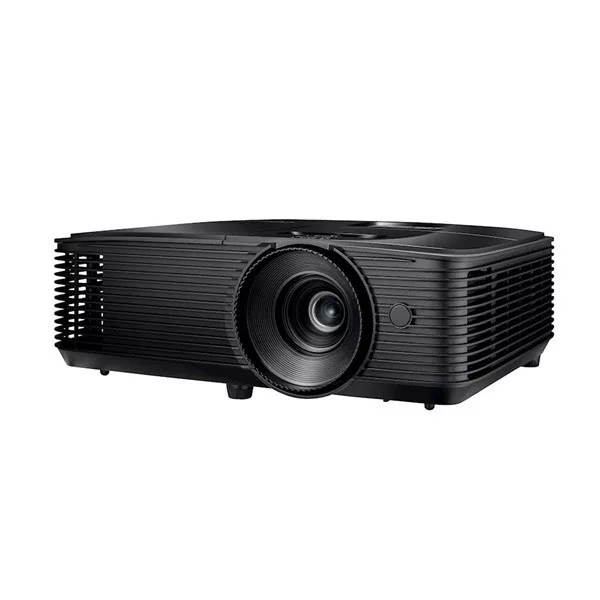

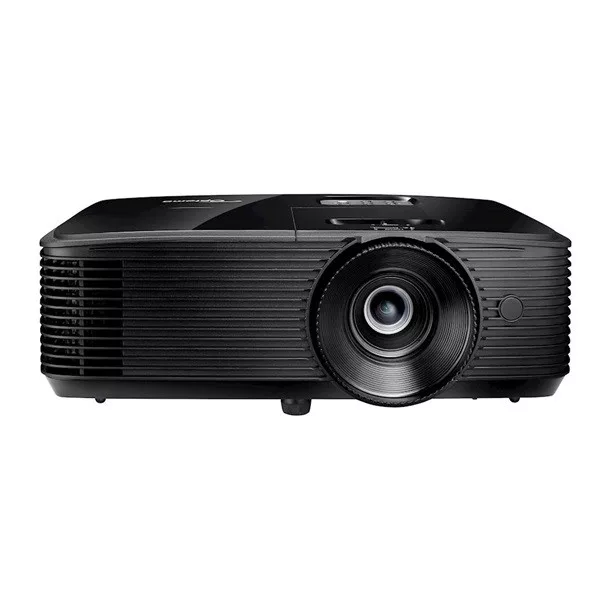

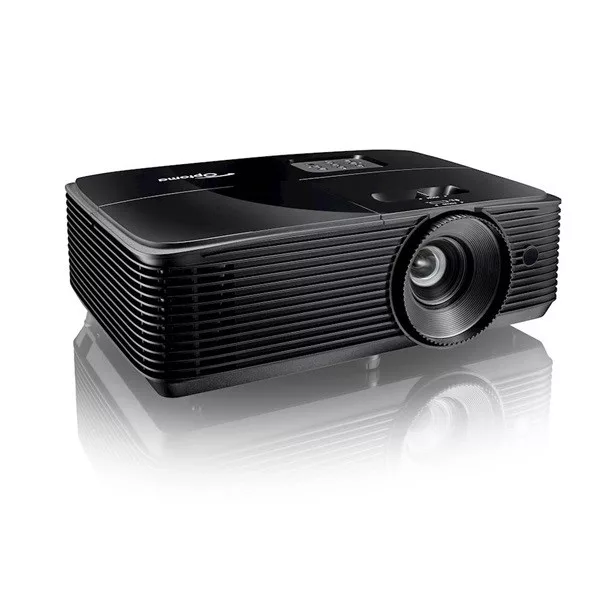

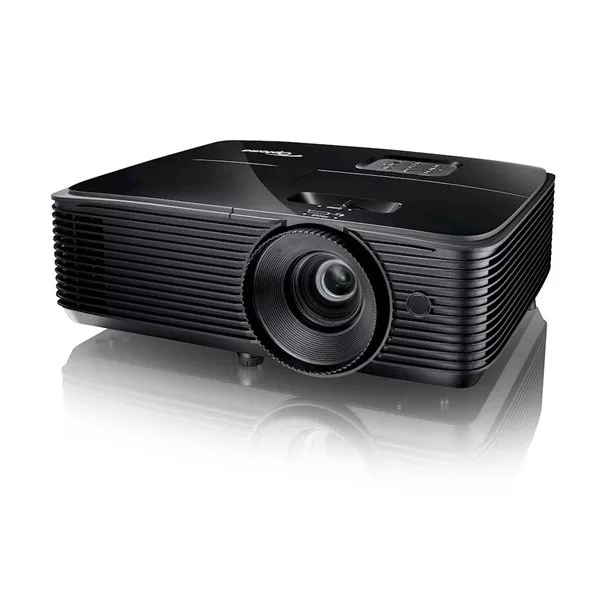

| HD146X |
|
| Big Screen Entertainment |
|
| |
|
| |
|
| Specification |
|
| |
|
|
Display/image
|
|
| |
DLP™
|
| |
|
| |
Resolution
|
| |
1080p Full HD (1920x1080)
|
| |
|
| |
Brightness
|
| |
3,600 lumens
|
| |
|
| |
Contrast ratio
|
| |
25,000:1
|
| |
|
| |
Native aspect ratio
|
| |
16:9
|
| |
|
| |
Aspect ratio - compatible
|
| |
4:3
|
| |
|
| |
Keystone correction - vertical
|
| |
+/-40°
|
| |
|
| |
Uniformity
|
| |
80%
|
| |
|
| |
Screen size
|
| |
0.71m ~ 7.65m (28" ~ 301") diagonal
|
| |
|
|
|
| |
|
|
Lamp info
|
|
| |
Lamp
|
| |
|
| |
Lamp watts
|
| |
240
|
| |
|
| |
Lamp life hours (up to)
|
| |
4000 (Bright), 15000 (Dynamic), 10000 (Eco)
|
| |
|
|
|
| |
|
|
Optical
|
|
| |
1.47:1 ~ 1.62:1
|
| |
|
| |
Projection distance (m)
|
| |
1m - 9.8m
|
| |
|
| |
Zoom
|
| |
1.1
|
| |
|
| |
Zoom type
|
| |
Manual
|
| |
|
| |
Focal length (mm)
|
| |
15.59mm~17.14mm/0.614"~0.675"
|
| |
|
| |
Native offset
|
| |
116%
|
| |
|
|
|
| |
|
|
Connectivity
|
|
| |
Inputs 1 x HDMI 1.4a 3D support
|
| |
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A |
| |
|
|
|
| |
|
|
General
|
|
| |
26dB
|
| |
|
| |
Noise level (max)
|
| |
28dB
|
| |
|
| |
PC compatibility
|
| |
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| |
|
| |
2D compatibility
|
| |
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
|
| |
|
| |
3D compatibility
|
| |
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
|
| |
|
| |
3D
|
| |
Full 3D
|
| |
|
| |
Security
|
| |
Security bar, Kensington Lock, Password protected interface
|
| |
|
| |
OSD / display languages
|
| |
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
|
| |
|
| |
Operating conditions
|
| |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|
| |
|
| |
Remote control
|
| |
Backlit home remote
|
| |
|
| |
Speaker count
|
| |
1
|
| |
|
| |
Watts per speaker
|
| |
5W
|
| |
|
| |
In the box
|
| |
AC power cord
|
| |
Remote control |
| |
2x AAA batteries |
| |
Basic user manual |
| |
|
| |
Input lag
|
| |
16.00ms
|
| |
|
| |
Optional wireless models
|
| |
WHD200
|
| |
|
|
|
| |
|
|
Power
|
|
| |
100 ~ 240V, 50 ~ 60Hz
|
| |
|
| |
Power consumption (standby)
|
| |
0.5W
|
| |
|
| |
Power consumption (min)
|
| |
205W
|
| |
|
| |
Power consumption (max)
|
| |
295W
|
| |
|
|
|
| |
|
|
Weight and dimensions
|
Dimensions (W x D x H) mm
|
| |
316 x 244 x 108
|
| |
|
| |
Gross weight
|
| |
3.81 kg
|
| |
|
| |
Net weight
|
| |
3.24 kg
|
