| Display |

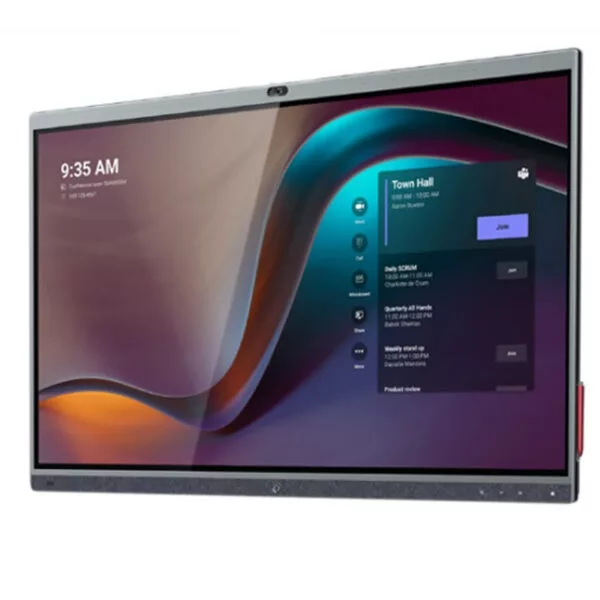

• MeetingBoard 65: 65-inch D-LED touch screen
MeetingBoard 86: 86-inch D-LED touch screen
• Ultra HD 4K (3840 x 2160 screen resolution)
• Anti-glare and anti-fingerprint coating
• Contrast ratio 1200:1(typ.)
• Brightness: 350 nits
• Viewing angle 178°(H) / 178°(V)
• Ratio 16:9
• Refreshing Frequency 60Hz
• Touch Points 20 points
• Location Accuracy ± 1mm(over 90% Area)
• Contact Height < 2mm |
| Camera |
• Built-in Camera
- 8MP Sony sensor
- 120° Diagonal field of view
- HFOV: 110°
- 4x e-PTZ
- Electric privacy shutter
• MB-Camera-6X
- 8MP Sony sensor
- 6x optical zoom
- FOV: 80°
- HFOV (Rotational): ±100°
- VFOV (Rotational): 0° /-90°
• MB-Camera-12X
- 8MP Sony sensor
- 12x optical zoom
- FOV: 90°
- HFOV (Rotational): ±100°
- VFOV (Rotational): 0° /-90°
• Intelligence Features
- Auto Framing
- Speaker Tracking
- Multi-focus Framing (Integrated)
- PiP Mode
- Smart Gallery (Zoom) |
| Audio |
• Built-in 16 MEMS Mic Array
• Support RCA input/output
• Yealink Enhanced Noise Proof Technology
• Acoustic Echo Cancellation
• Reverberation Suppression
• Auto Gain Control
• Beamforming Technology
• CNG/PLC/AJB/De-Rerb
• Speaker:
-4 full range+2 tweeter stereo speakers
-Frequency Response: 90Hz~20kHz
-Sensitivity: 95dB SPL @ 1W, 0.5 meter
-Sampling Rate: 48kHz
-Rated Sound emission angle: Forward-facing?Downward-facing
-Total Harmonic Distortion (THD): 1kHz <1% at 1 meter
-Rated Impedance: 4 ohms
-Rated Power: 15W
-Maximum Power: 24W |
| Operating System |
• Android 10 |
| Meeting Features |
• Calendar
• One-click join
• Meeting collaboration
- Content sharing
- WPP20/WPP30 Wireless Content Sharing
- VCH51 Wired Content Sharing
- AirPlay
- Miracast
- Whiteboard
• Meeting control
- Add par ticipates
- Hold/Resume
- Camera On/Off
- Mute/Unmute
- Volume Up/Down
- Hang up |
| Video Standard |
• Video codecs: H.264 High profile, H.264 SVC, H.264 |
| Network and Security Features |
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X
- EAP-MD5/EAP-TLS
- PEAP-MSCHAPv2
- EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate
• Simple Certificate Enrollment Protocol (SCEP)
• WiFi 6
• 2x2 MIMO dual-band
• Built-in Bluetooth 5.0
• NFC supported |
| Connections |
• 1 x detachable PTZ camera port
• 1 x HDMI output (CEC supported)
• 1 x HDMI input (only for source input)
• 2 x RCA audio input
• 2 x RCA audio output
• 1 x Yealink VCH port (RJ-45)
• 2 x USB Type A 3.0 interface
• 1 x USB Type A 2.0 interface
• 1 x USB Type B Touch output interface
• 1 x 10/100M/1000M Ethernet port
• 1 x Power port
• 1 x Windows OPS slot
• 1 x Security lock slot
• 1 x Reset slot |
| Buttons |
• LED lightstrips
• Home button
• Input source button
• Volume up/down button
• Motion sensor |
| Optional Accessories |
• MB-CAM-6X module
• MB-CAM-12X module
• VCM36-W wireless microphone
• Windows OPS module |
| Other Physical Features |
• Storage: built-in 64 GB (Available: 40G)
• Power Adapter: AC 100~240V input
• USB Output: 5V 0.5A
• Power consumption
- MeetingBoard 65: 128w
- MeetingBoard 86: 338w
• Dimension (W.D.H)
-Wall mount:
MeetingBoard 65:
- V1 Hardware: 1512mm x 953mm x 92mm (VESA: 600 mm x 400 mm)
- V2 Hardware: 1490 mm x 936 mm x 96 mm (VESA: 600 mm x 400 mm)
MeetingBoard 86: 1967 mm x 1205 mm x 96 mm (VESA: 800 mm x 600 mm)
V1 Hardware: For the 7th to 9th digits of the serial number (SN), E01-E08 represent the old models, while E09 and onwards, as well as FXX, represent the new models.
V2 Hardware: For the 7th to 9th digits of the serial number (SN), E01-E09 represent the old models, while E10 and onwards, as well as FXX, represent the new models.
-Floor stand:
MeetingBoard 65: 1154mm × 835mm × 1043mm
MeetingBoard 86: 1468mm × 905mm × 942mm
• Operating humidity: 10 - 95%
• Operating temperature: 0 - 40°C
• Storage temperature: -30 - 70°C |
| Package Features |
• Package contents
- MeetingBoard 65/86 endpoint
- 3m Ethernet cable
- 3m Power cable
- 4 x Stylus pen
- Mounting Bracket and Accessories
- Quick Start Guide
• N.W/CTN
- MeetingBoard 65: 51 kg
- MeetingBoard 86: 84.5 kg
• G.W/CTN
- MeetingBoard 65: 65.7kg
- MeetingBoard 86: 103.7kg
• Carton Meas
- MeetingBoard 65: 1660 mm x 1075 mm x 280 mm
- MeetingBoard 86: 2090 mm x 1320 mm x 280 mm
- Floor stand (optional)-65 : 1225 mm x 743 mm x 148 mm
- Floor stand (optional)-86 : 1425 mm x 843 mm x 148 mm |
