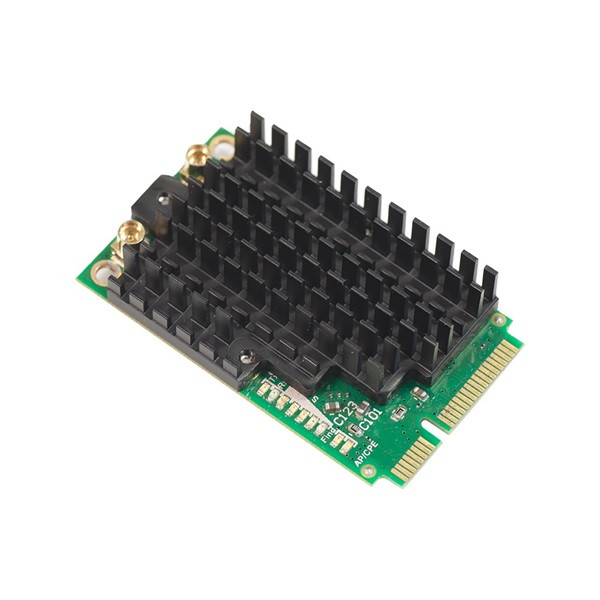

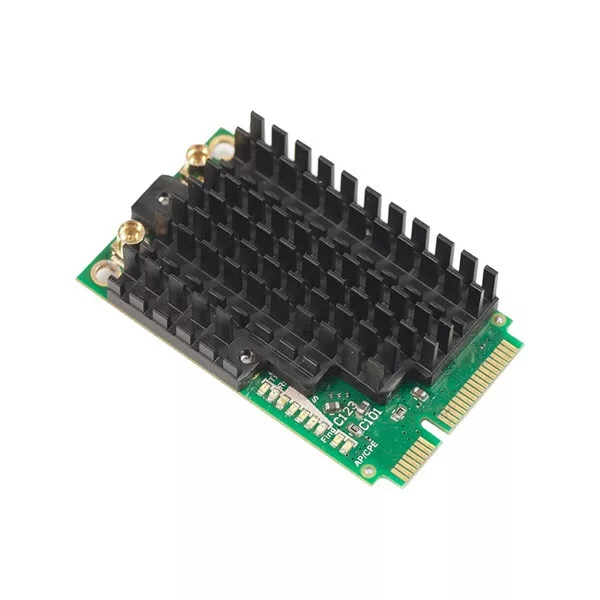

R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU
Unit is equipped with two MMCX connectors
Product specifications
| Details |
| Product code |
R11e-2HPnD |
| Antenna header count |
2 |
| Can be used indoors |
Yes |
| Can be used outdoors |
Yes |
| Certification |
FCC, IC |
| IP |
IP00 |
| MTBF |
Approximately 100'000 hours at 25C |
| Max power consumption |
5 W |
| Storage size |
4 KB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40C to +65C |
| Wi-Fi generation |
Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz chip model |
AR9582 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wireless standards |
802.11b/g/n |
| |
|
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
29 |
-100 |
| 11MBit/s |
29 |
-94 |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
30 |
-96 |
| MCS7 |
24 |
-79 |
