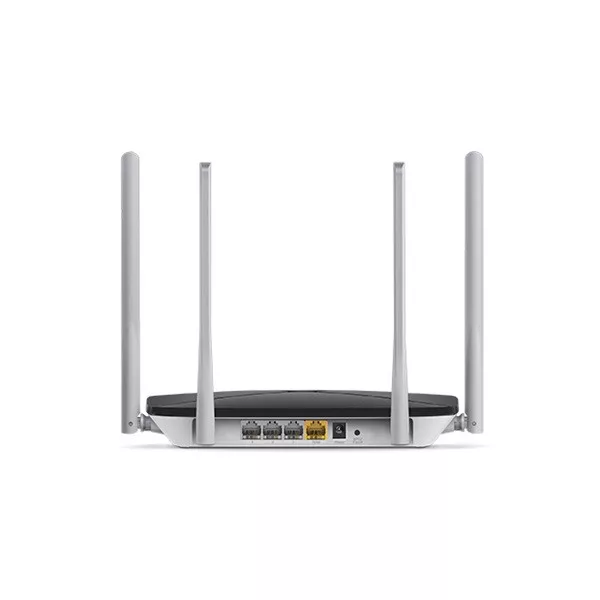

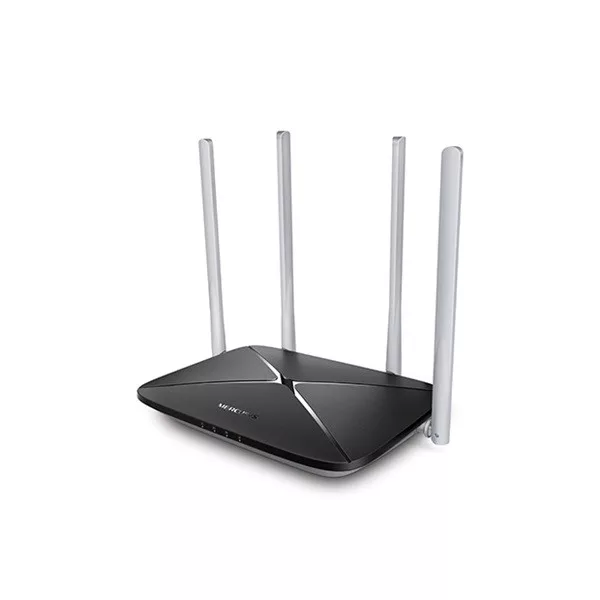

MERCUSYS Wireless Router Dual Band AC1200 1xWAN(100Mbps) + 3xLAN(100Mbps), AC12

3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port

WPS/Reset Button

9V/0.85A

222 x 140 x 32 mm

4 * 5dBi

• AC1200 Wireless Dual Band Router (AC12)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

2.4 - 2.5GHz, 5.15 - 5.25GHz

300Mbps at 2.4GHz, 867Mbps at 5GHz

5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm

2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm

Enable/Disable Wireless Radio, Wireless Statistics

WPA-PSK / WPA2-PSK

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Server

Virtual Server, UPnP, DMZ

Access Control
Local Management
Remote Management

IP and MAC Address Binding

2.4GHz Guest Network, 5GHz Guest Network

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
