MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G

Name: MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G
Brand: TP-LINK
SKU: CS_384675
Price: 27320 HUF
Availability: InStock

Központi készleten, szállítás 2-3 nap!

Cikkszám:

CS_384675

nettó: 21 512 Ft bruttó: 27 320 Ft

Raktárkészletek

Központi készleten 5 db

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

MB135-4G

EAN:

6957939004170

EAN:

6957939004170

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac

Garancia:

36 hónap

Gyártó::

TP-LINK

Frekvencia:

2.4 GHz és 5 GHz

Wifi sebesség:

1200 Mbit/s

SIM:

Van

LAN portok:

Mesh router:

Van

WAN sebesség:

10/100 Mbit/s

LAN sebesség:

10/100 Mbit/s

Gyártó:

TP-LINK

Garancia (hónap):

Termék gyártója:

TP-LINK

Tömeg:

710 g/db

Részletek

Network Type

EU: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40 (2600/2300 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:

FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 ΜHz)

TDD-LTE: B40 (2300 MHz)

HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Wi-Fi Class

AC1200

Wi-Fi (2.4 GHz)

300 Mbps

Wi-Fi ( 5 GHz)

867 Mbps

Wireless Standards

IEEE 802.11ac/a/b/g/n

Frequency

5 GHz, 2.4 GHz

Reception Sensitivity

11g 6Mbps: -95dBm

11g 54Mbps: -77dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBm

11a 6Mbps: -92dBm

11a 54Mbps: -75dBm

11ac VHT20 MCS8: -70dBm

11ac VHT40 MCS9: -65dBm

11ac VHT80 MCS9: -61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

smart connect WPS Wireless Schedule Wireless Clients Statistics

Others

Package Contents

AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Software

Operation Mode

3G/4G Router Wireless Router

Cellular Mode

4G Preferred 4G Only 3G Only

Cellular APN

Data Roaming Network Search Profile Create APN Settings ISP File Upgrade PIN Management

WAN Mode

Dynamic IP Static IP PPPoE PPTP L2TP

NAT Forwarding

ALG Virtual Server Port Triggering UPnP DMZ

Protocols

IPv4, IPv6

Data Settings

Data Statistics Data Limit

Parental Controls

Time Control Website Filtering

Guest Network

2.4 GHz Guest Network 5 GHz Guest Network

DHCP

Server DHCP Client List Address Reservation

DDNS

MERCUSYS DDNS DynDns NO-IP

VPN Server

OpenVPN PPTP VPN Connections

SMS

Inbox New Message Outbox Drafts

QoS

√

Security

IPv4 SPI Firewall DoS Protection Service Filtering Access Control IP & MAC Binding IPv6 Firewall

System Settings

Time Settings LED Control Diagnostics Firmware Upgrade Backup&Restore Reboot Administration System Log CWMP Settings SNMP Settings Traffic Monitor

Device Management

MERCUSYS APP Web GUI

System Language

English German Spanish Greek French Italian Polish Indonesian Russian Thai

TR-069

√

Hardware

Dimensions

219 × 140 × 32 mm

(8.62 × 5.51 × 1.26 in)

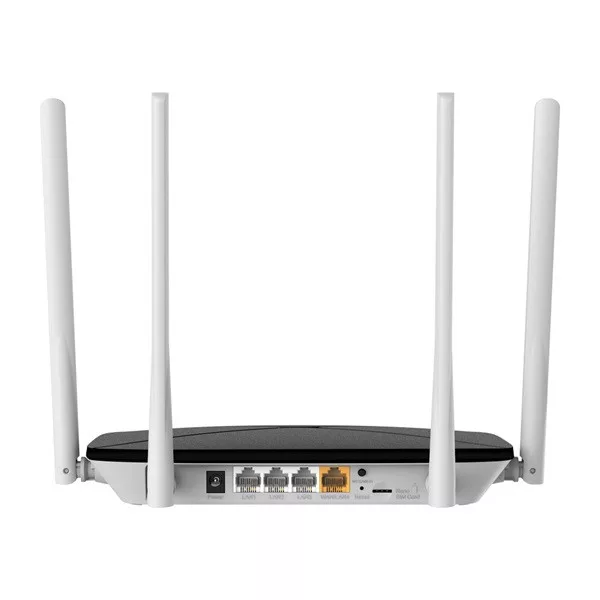

Interfaces

1× 10/100Mbps LAN/WAN Port

3× 10/100Mbps LAN Ports

1× Nano SIM Card Slot

Antenna

2× External Detachable 4G LTE Antennas, 2× External Wi-Fi Antennas

Button

WPS/Wi-Fi?Reset Button

External Power Supply

12V/1A

LED

1× Power 1× Internet 1× LAN 3× Signal

Ethernet Ports

1× 10/100 Mbps LAN/WAN Port +

3× 10/100 Mbps LAN Ports

LTE Standard

Cat 4 150/50Mbps DL/UL

Wireless
