| PERFORMANCE |
| Processor |
Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB |
| AI PC Category |
AI PC |
| NPU |
Integrated Intel® AI Boost, up to 12 TOPS |
| Graphics |
Integrated Intel® Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
1x 16GB SO-DIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5600 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Slot |
One M.2 2280 PCIe® 4.0 x4 slot |
| Max Storage Support |
One drive, up to 2TB M.2 2280 SSD |
| Card Reader |
None |
| Audio Chip |
High Definition (HD) Audio, Senary SN6147 codec |
| Speakers |
Stereo speakers, 2W x2, optimized with Dolby Atmos® |
| Microphone |
2x, Array |
| Camera |
5.0MP + IR Discrete with Privacy Shutter |
| Battery |
57Wh |
| Power Adapter |
65W USB-C® (3-pin) |
| DESIGN |
| Display |
16" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz |
| Touchscreen |
None |
| Screen-to-Body Ratio |
87% |
| Pen |
Pen Not Supported |
| Keyboard |
Backlit, Hungarian |
| Dimensions (WxDxH) |
357.2 x 253.4 x 10.96/19.67 (front/rear), 24.75(maximum) mm; 14.06 x 9.98 x 0.43/0.77 (front/rear), 0.97 (maximum) inches |
| Weight |
Starting at 1.79 kg (3.96 lbs) |
| Case Color |
Black |
| Case Material |
PC-ABS (Top), PC-ABS (Bottom) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3 |
| WWAN |
WWAN Upgradable to 4G |
| SIM Card |
None |
| Ethernet |
100/1000M (RJ-45) |
| NFC |
None |

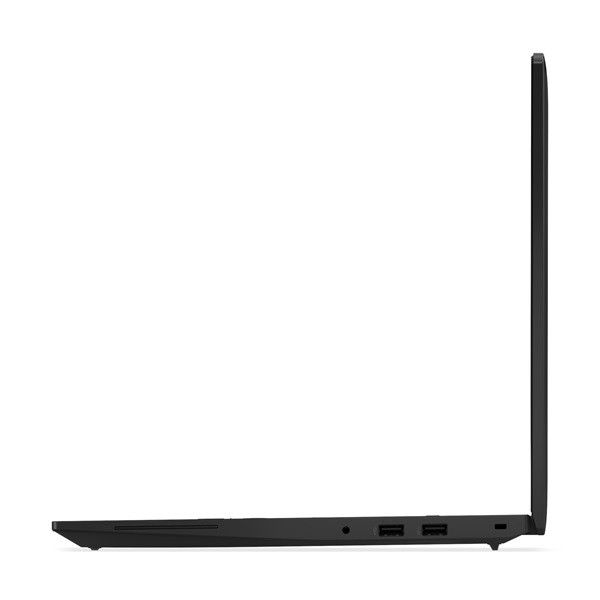

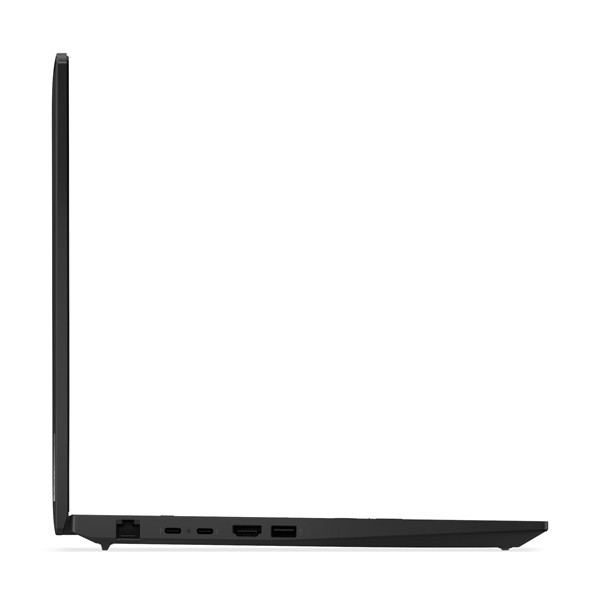

| Standard Ports |
- 1x USB-A (Hi-Speed USB / USB 2.0)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.1 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
|
| Optional Ports (configured) |
- 1x Smart Card Reader
- 1x Nano-SIM Card Slot
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad L16 Gen 2 (Intel) |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0 Enabled |
| Physical Locks |
Kensington® Nano Security Slot, 2.5 x 6 mm |
| Smart Card Reader |
Smart Card Reader |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Other Security |
- Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
- ThinkShield
- Privacy Guard with Privacy Alert (software solution)
|
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in ESS (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 6/26
- RoHS compliant
- TCO Certified, generation 10
|
| Mil-Spec Test |
MIL-STD-810H military test passed |
| Other Certifications |
- |
| MODEL INFORMATION |
| Model |
21SA002PHV |
| Machine Type |
21SA |
| Region |
EET |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0198158719865 |
| Announce Date |
2025-05-20 |
| End of Support |
2031-12-20 |
