Product Description
The Smarter Way To Work. Designed to enhance everyday productivity, the Lenovo™ ThinkPad® Universal USB-C Smart Dock is at the cutting edge of our new series of docks offering a smarter way to work. A bridge to a more intelligent future, the dock features a rich array of data, display, and power ports, including universal USB-C compatibility, while driving incredible performance for commercial users and a secure cloud-based management solution for IT managers. And it’s all powered by Microsoft Azure Sphere.
Top Features
- One Cable For All Your Needs;
- Get more from your workday by adding 11+ expansion possibilities in a single quick-release cable for maximum efficiency. Expand your creative potential with access to multiple 4K monitors, and blazing-fast data transfers with USB-C and USB-A. Plus, rapid-charging for your laptops up to 100W so you can remain energized at all time.
- Universal Dock Compatibility
- Boost the value of your investment with the broad compatibility of the ThinkPad Universal USB-C Smart Dock. Supporting both Thunderbolt™ 3 and 4, USB 4™ and USB-C, and extended compatibility in a Multi-OS environment
- Streamlined Dock Management.
- Break free from the old docking paradigm and streamline your management workflow with a range of time-saving innovations. With the ThinkPad Universal USB-C Smart Dock, you can remotely update its firmware without a connected PC, remotely manage ports, conduct data analytics, utilize diagnostic tools, and keep your system safe with Microsoft Azure Sphere security solution.
Tech Specs
| Warranty Period |
3 Years |
| JAN |
4580551463081 |
| EAN |
0195477286993 |
| UPC |
195477286993 |

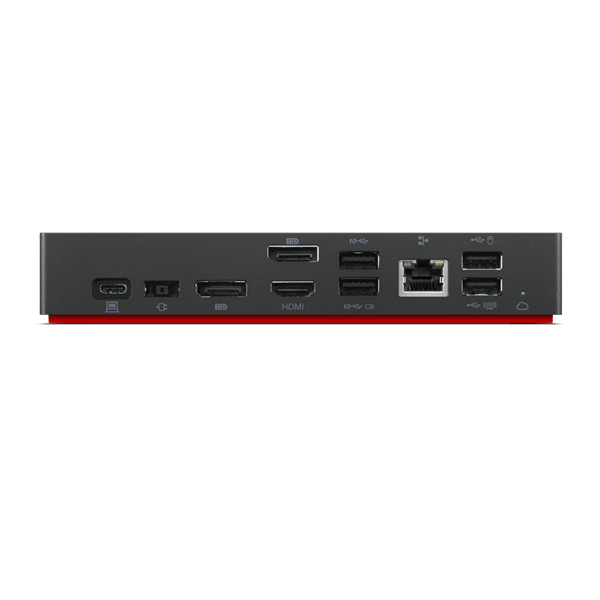

| USB Ports |
3 x USB-A 3.2 Gen 2 2 x USB-A 2.0 1 x USB-C 3.2 Gen 2 |
| Warranty Type |
CRU |
| Maximum Relative Humidity (%) |
95% ( no Condensation) |
| Minimum Relative Humidity (%) |
20% |
| Maximum Operating Temperature |
35° C |
| Minimum Operating Temperature |
0° C |
| Packed Weight |
1245g |
| Packed Dimensions (L x D x H) |
210*158*75mm |
| Package Type |
Brown Box |
| Shipment Group |

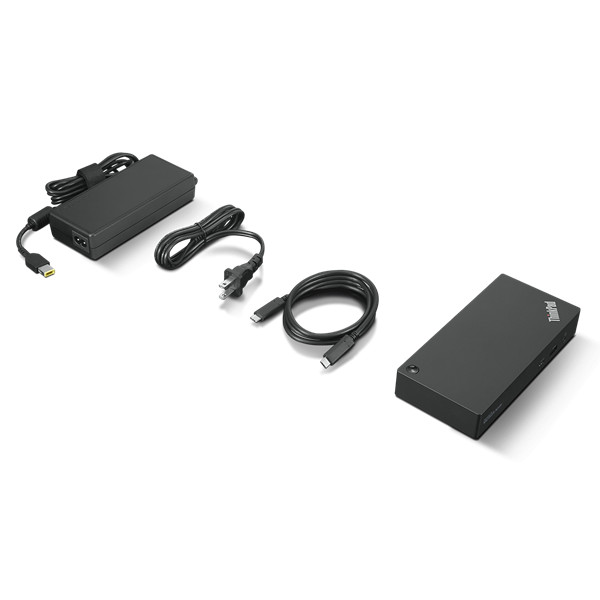

ThinkPad Universal USB-C Dock 90W AC Power adapter Power cord Pubs Cable |
| Product Weight |
388g |
| Height |
30.75 mm |
| Depth |
80mm |
| Length |
171mm |
| Driver Needed |
Yes |
| Video Ports |
2x Display Port 1x HDMI Port |
| Agency Approvals |
FCC/ICES CE RCM BSMI VCCI CB cULus TUV- Mark LoA |
| Color |
Black |
| Power Plug |
Slim-tip |
| Power Button |
Yes |
| Output Power |
96W |
| Power Delivery |
Yes |
| Input Power |
135W |
| Charging Port |
DC-IN |
| Maximum Resolution/Refresh Rate |
2x 3840x2160 @60Hz 1x 3840x2160 @30Hz |
| Max Number of External Monitors |
3 |
| Physical Security Feature |
2x Security lock slot |
| Ethernet |
1x Gigabit Ethernet |
| Audio Ports |
1x Combo Audio Jack |
| Supported OS |
Windows 11 Windows 10 Windows 7 |
| Brand |
ThinkPad |
