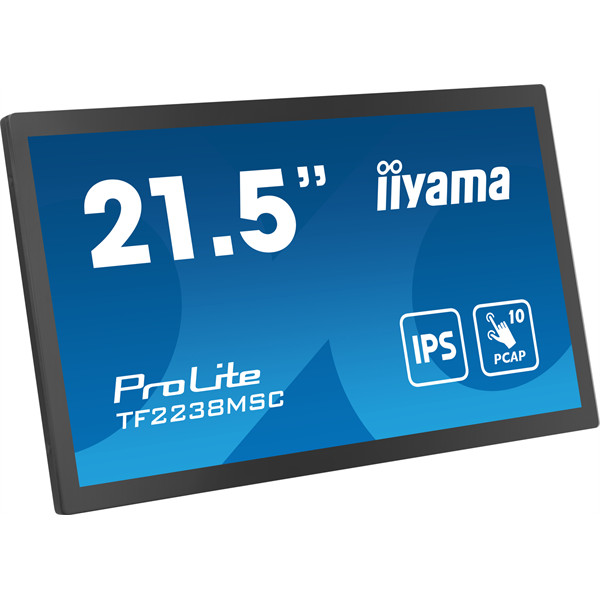

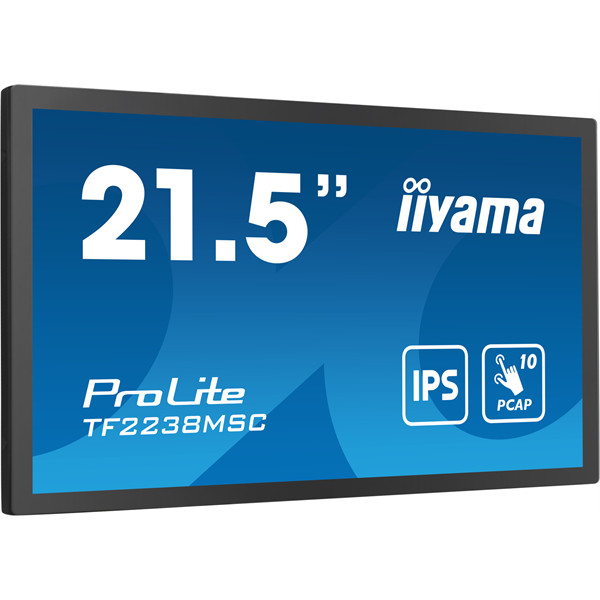

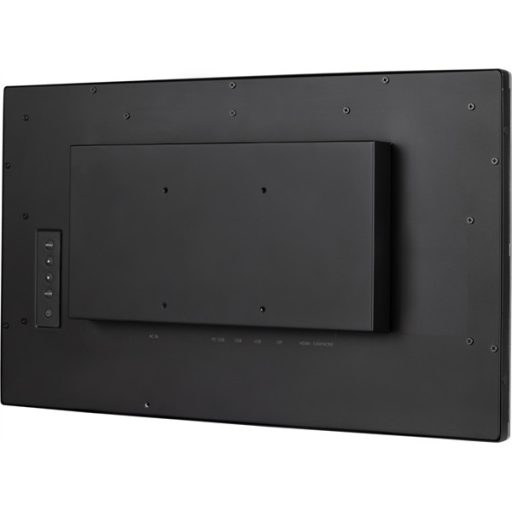

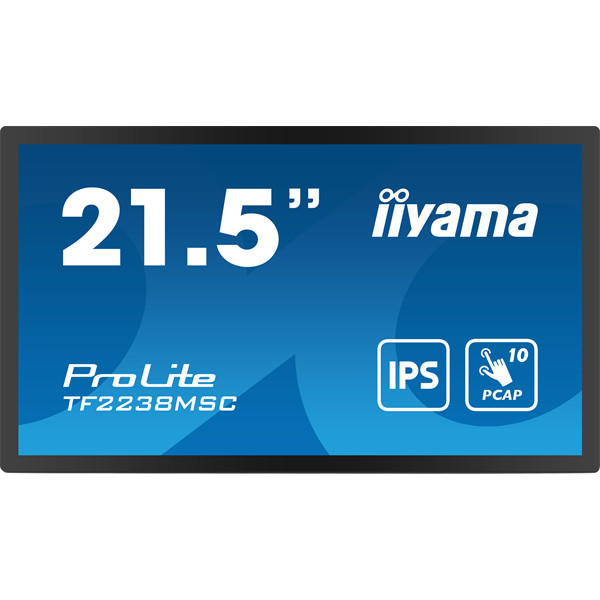

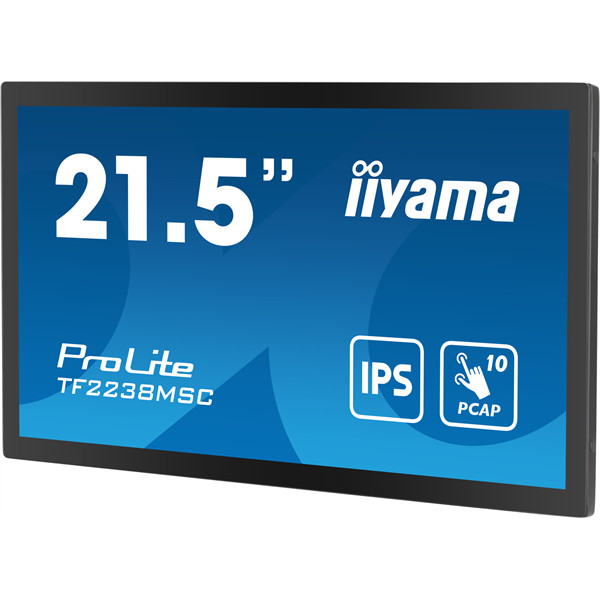

IIYAMA touch IPS monitor 21.5" TF2238MSC-B1, 1920x1080, 16:9, 525cd/m2, 5ms, DP/HDMI//USB, hangszóró, open frame

Cikkszám:
CS_346349
IIYAMA touch IPS monitor 21.5" TF2238MSC-B1, 1920x1080, 16:9, 525cd/m2, 5ms, DP/HDMI//USB, hangszóró, open frame
Rendelhető
294 860 Ft
Részletek





Design

Edge to edge glass, Open Frame

Diagonal

21,5", 54.5cm

Panel

IPS

Native resolution

1920 x 1080 (2.1 megapixel Full HD)

Aspect ratio

16:9

Panel brightness

600 cd/m²

Brightness

525 cd/m² with touch

Light transmittance

87%

Static contrast

1000:1

Response time (GTG)

5ms

Viewing zone

horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support

16.7mln

Horizontal Sync

30 - 83kHz

Viewable area W x H

479 x 260mm, 20.2 x 11.8"

Bezel width (sides, top, bottom)

17mm, 19.8mm, 19.8mm

Pixel pitch

0.249mm

Bezel colour and finish

black, matte

TOUCH

Touch technology

bonded PCAP

Touch points

10 (HID, only with supported OS)

Touch method

stylus, finger, glove

Touch interface

USB

Supported operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

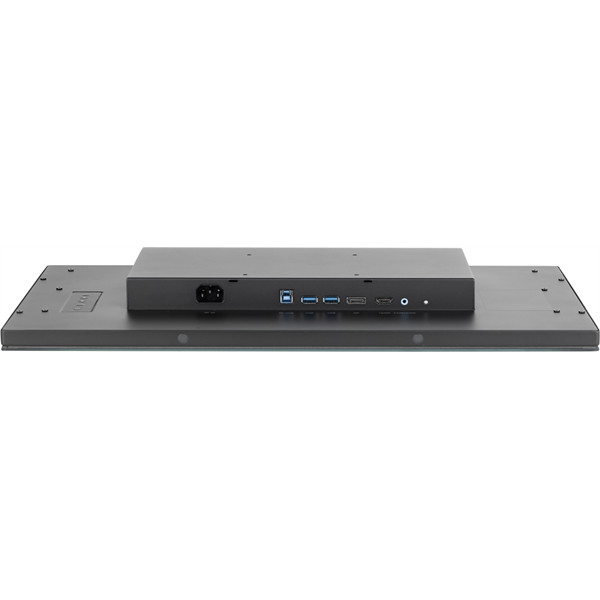

INTERFACES / CONNECTORS / CONTROLS

Digital signal input

HDMI x1
DisplayPort x1

Audio output

Speakers 2 x 2W

HDCP

yes

USB HUB

x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))

FEATURES

Extra

Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function

Glass thickness

3.6mm

Glass hardness

7H

60950 Ball drop test

yes

Water and dust protection

IP1X (front)

Housing (bezel)

metal

OSD key lock

yes

GENERAL

OSD languages

EN, DE, FR, CN, RU, JP, NL, PL

Control buttons

Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power

User controls

Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)

Blue light reducer

yes

Plug&Play

DDC2B

MECHANICAL

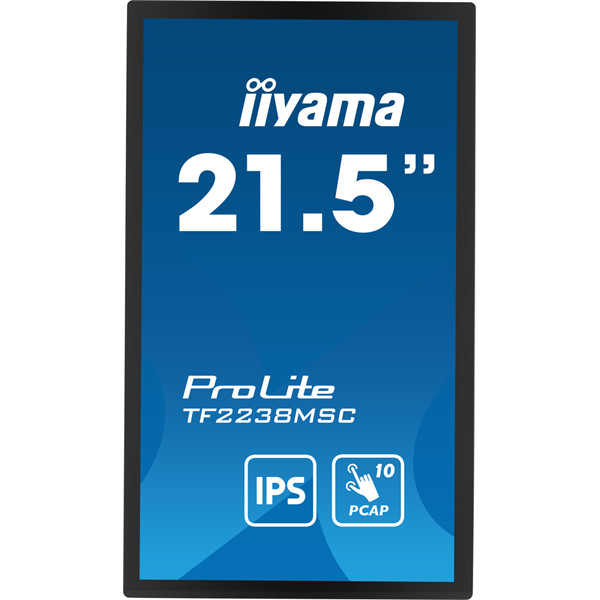

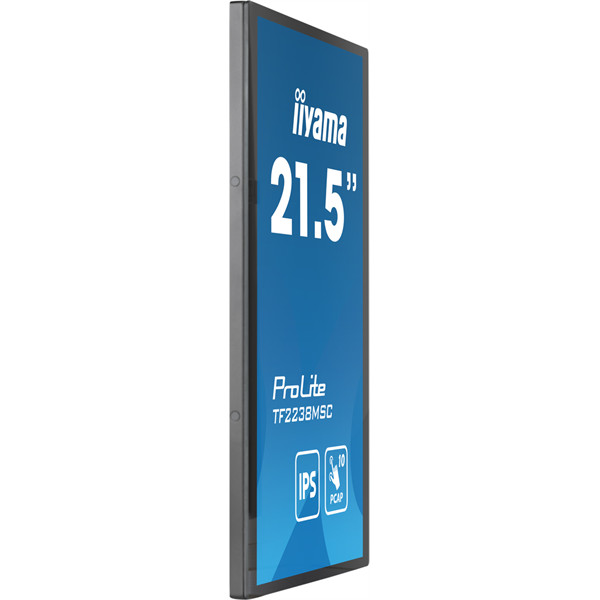

Orientation

landscape, portrait, face-up

Fanless design

yes

VESA mounting

100 x 100mm

ACCESSORIES INCLUDED

Cables

power, USB, HDMI

Guides

quick start guide, safety guide

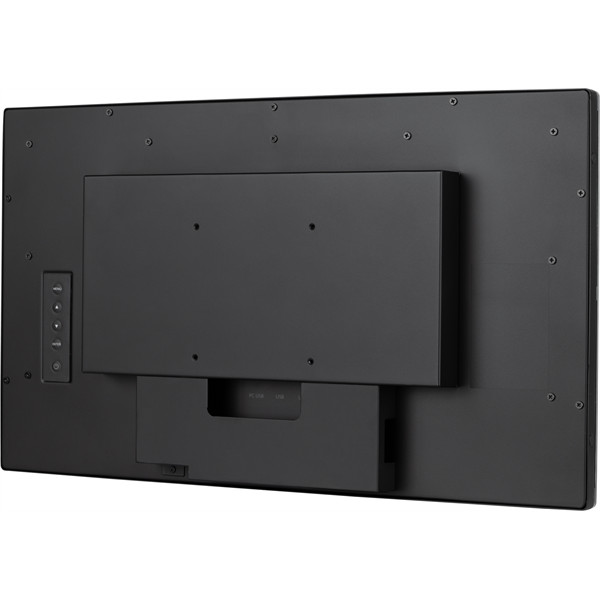

Cable cover

yes

POWER MANAGEMENT

Power supply unit

internal

Power supply

AC 100 - 240V, 50/60Hz

Power usage

17W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations

CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)

D

REACH SVHC

above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D

512.5 x 300 x 47mm

Box dimensions W x H x D

572 x 364 x 112mm

Weight (without box)

5.1kg

Weight (with box)

6.4kg

EAN code

4948570121618

RELATED INFORMATION



Adatok
Gyártó:
IIYAMA
Gyártói cikkszám:
TF2238MSC-B1
EAN:
4948570121618
EAN:
4948570121618
Típus:
Touch monitor
Szín:
Fekete
Garancia:
36 hónap
Gyártó:
IIYAMA
Felbontás:
1920 x 1080 (FHD1080) 16:9
Képátló:
21,5
Képarány:
16:9
Fali rögzítés:
100x100mm VESA falitartó-támogatás
Kontrasztarány:
1000
Fényerő:
520
HDMI:
Van
Válaszidő:
5
Panel típus:
IPS
Energia hatékonyság:
D
Hangszóró:
Van
Display Port:
Van
USB:
Van
Technológia:
LCD
Beépített tápegység:
Van
Pivot (forgatható):
Van
Egyéb csatlakozók:
x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))
Tömeg:
6,4 kg/db
