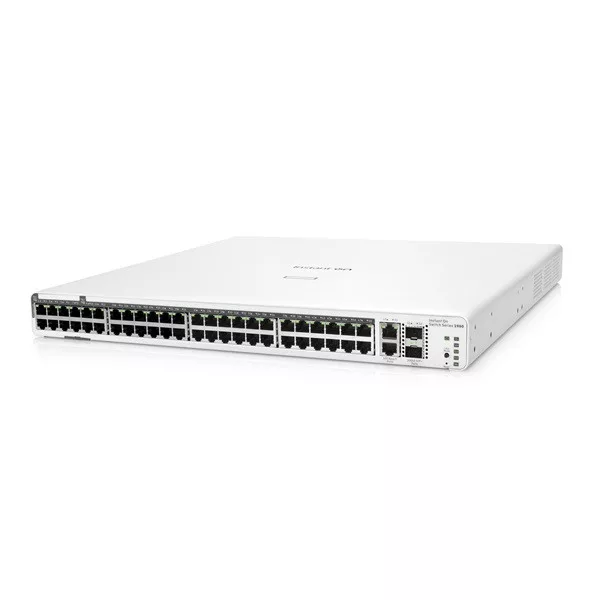

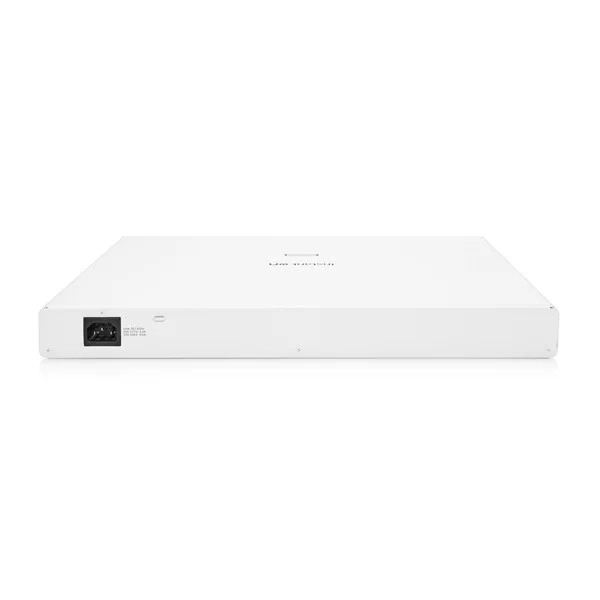

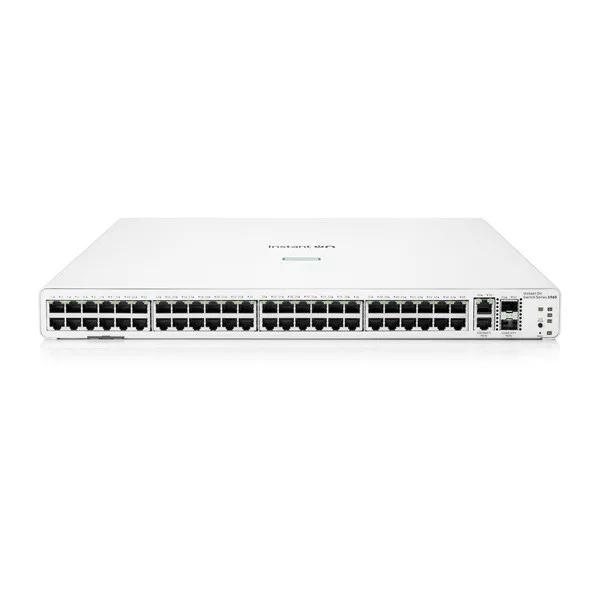

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960

Name: HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960
Brand: HP NW
SKU: CS_383370
Price: 459570 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_383370

nettó: 361 866 Ft bruttó: 459 570 Ft

HPE Networking Instant On Switch 48p Gigabit 2p 10GBT 2p SFP+ 1960

Adatok

Gyártó:

HP NW

Gyártói cikkszám:

JL808A

Garancia:

1188 hónap

Gyártó::

HP HEWLETT PACKARD

Gyártó:

HP HEWLETT PACKARD

Garancia (hónap):

1188

Termék gyártója:

HP NW

Tömeg:

6,17 kg/db

Részletek

Product	1960 48G 2XGT 2SFP+
Part Number	JL808A
Switch Type	Fixed Port
Network OS	Aruba Instant On
Routing / Switching	Layer 2 Only
Management	Smart Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.42(w) x 13.8(d) x 1.73(h) in (44.25 x 35.05 x 4.4 cm) (1U height)
Weight	9.8 lb (4.4 kg)
Port Types
LAN Ports	48 RJ-45 autosensing 10/100/1000 Mbps ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	N/A
SFP+ Ports	2 10GbE SFP+ ports
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	2 10GBASE-T ports
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD Ports	N/A
Module Slots	N/A
Console Port	N/A
Power Supplies
Power supply slots	Internal power supply
Power supply requirements	N/A
Memory and Processor
Memory and Processor	Single-Core ARM v7 Cortex-A9 @800MHz
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Performance
100 Mb Latency	< 4.4 µs
1000 Mb Latency	< 2.2 µs
10 Gbps Latency	< 1.1 µs
40 Gbps Latency	N/A
Throughput	up to 131 Mpps
Switching Capacity	176 Gbps
Switch Fabric Speed	N/A
Routing Table Size	32 IPv4/IPv6
MAC Address Table Size	16000 entries
MACsec Capable Hardware	N/A
MACsec Software Support	N/A
MACsec with EAP-TLS	N/A
MACsec Capable Uplink Ports	N/A
Electrical Characteristics
Description	N/A
Voltage	100-240 VAC
Current	1.1A/0.4A
Frequency	50/60 Hz
Maximum Power Consumption	100-127V: 110W 200-220V: 120W
Maximum Heat Dissipation	N/A
PoE power	N/A
Notes	Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Management
Management	IMC - Intelligent Management Center, Web browser, SNMP Manager, IEEE 802.3 Ethernet MIB
