| Product |

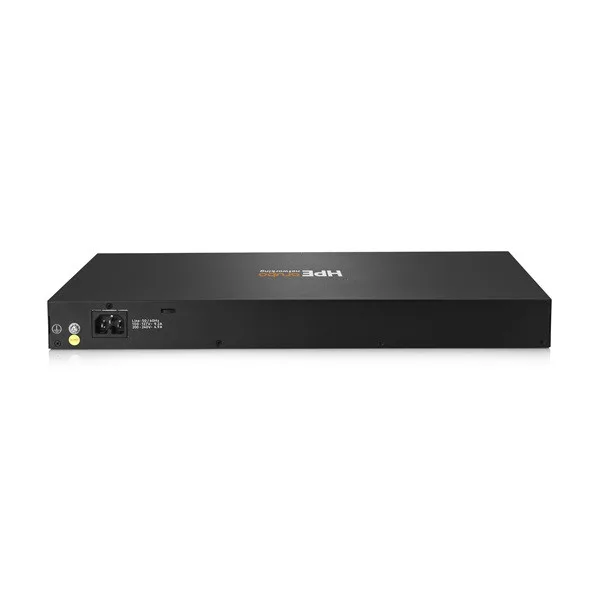

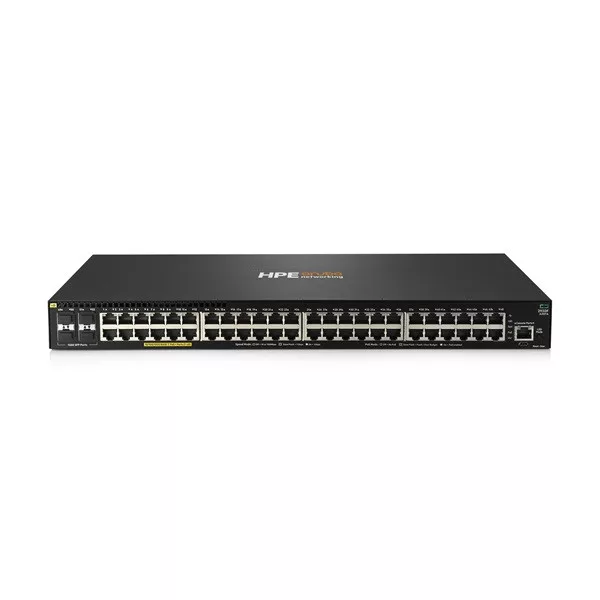

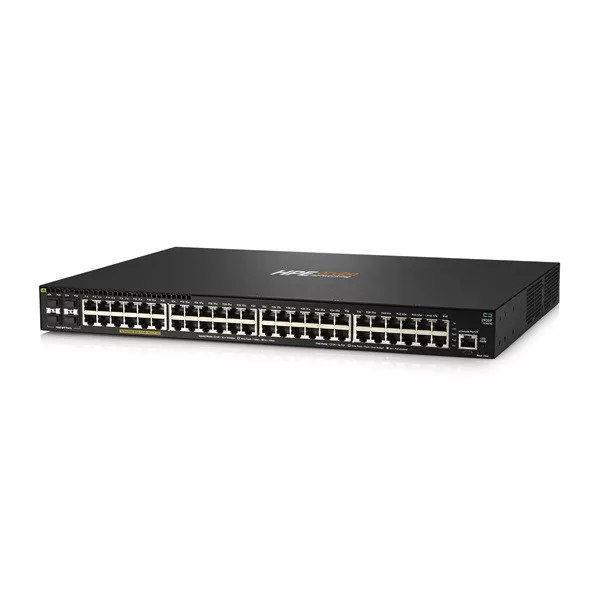

2930F 48G PoE+ 4SFP 740W |
| Part Number |
JL557A |
| Switch Type |
Fixed Port |
| Network OS |
ArubaOS |
| Routing / Switching |
Layer 3 Dynamic |
| Management |
Fully Managed |
| Included Accessories |
|
| Included Accessories |
N/A |
| Physical Properties |
|
| Dimensions |
17.42(w) x 12.77(d) x 1.73(h) in
(44.25 x 32.42 x 4.39 cm)
(1U height) |
| Weight |
10.56 lb (4.79 kg) |
| Port Types |
|
| LAN Ports |
48 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Dual Personality Ports |
N/A |
| 1/2.5/5/10GbE |
N/A |
| SFP Ports |
4 SFP ports |
| SFP+ Ports |
N/A |
| SFP28 Ports |
N/A |
| SFP56 Ports |
N/A |
| XFP Ports |
N/A |
| X2 Ports |
N/A |
| CX4 Ports |
N/A |
| 10GBASE-T Ports |
N/A |
| QSFP+ Ports |
N/A |
| QSFP28 Ports |
N/A |
| QSFP56 Ports |
N/A |
| QSFP-DD Ports |
N/A |
| Module Slots |
N/A |
| Console Port |
1 dual-personality (RJ-45 or USB micro-B) serial console port |
| Power Supplies |
|
| Power supply slots |
N/A |
| Power supply requirements |
N/A |
| Memory and Processor |
|
| Memory and Processor |
Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB, 4.5MB Ingress/7.785 Egress, 4 GB eMMC |
| Gigabit Module |
N/A |
| 10Gb Module |
N/A |
| Management Module |
N/A |
| Fabric Module |
N/A |
| I/O Module |
N/A |
| Mounting |
|
| Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting. |
| Performance |
|
| 100 Mb Latency |
N/A |
| 1000 Mb Latency |
< 3.8 µs (64-byte packets) |
| 10 Gbps Latency |
N/A |
| 40 Gbps Latency |
N/A |
| Throughput |
up to 77.4 Mpps |
| Switching Capacity |
104 Gbps |
| Switch Fabric Speed |
N/A |
| Routing Table Size |
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF,
256 Static, 10,000 RIP |
| MAC Address Table Size |
32,768 entries |
| MACsec Capable Hardware |
No |
| MACsec Software Support |
Yes |
| MACsec with EAP-TLS |
No |
| MACsec Capable Uplink Ports |
No |
| Electrical Characteristics |
|
| Description |
80plus.org Certification: Gold |
| Voltage |
100 - 127 / 200 - 240 VAC, rated |
| Current |
9.2/4.9 A |
| Frequency |
50/60 Hz |
| Maximum Power Consumption |
980 W (idle power: 49.9 W) |
| Maximum Heat Dissipation |
420.9 BTU/hr (444.1 kJ/hr) |
| PoE power |
740 W PoE+ |
| Notes |
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
| Management |
|
| Management |
Aruba AirWave Network Management, Aruba Central, IMC - Intelligent Management Center, command-line interface, Web browser, configuration menu, out-of-band management (serial RS-232), SNMP Manager, Telnet, RMON1, FTP |
