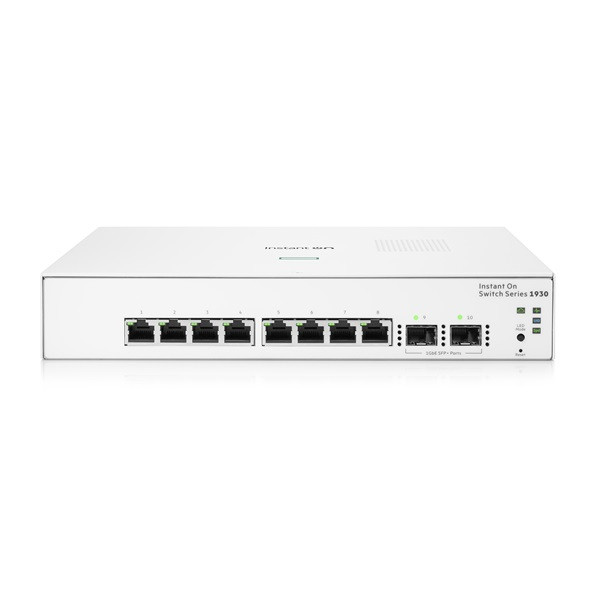

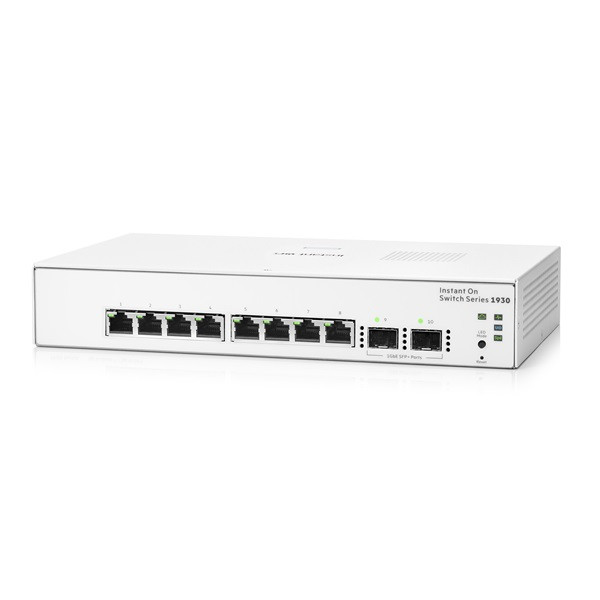

Aruba Instant On 1930 8G 2SFP Switch (JL680A)
|
|
I/O Ports and Slots
|
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports
|
|
Physical Characteristics
|
Dimensions
|
10(w) x 6.28(d) x 1.73(h) in
(25.4 x 15.95 x 4.39 cm)
(1U height)
|
|
Weight
|
2.55 lb (0.82 kg)
|
|
CPU
|
ARM Cortex-A9 @ 800 MHz
|
|
Memory And Flash
|
512 MB SDRAM
256 MB flash
|
|
Packet Buffer
|
1.5 MB
|
|
Performance
|
100 Mb latency
|
< 5.2 uSec
|
|
Packet size
|
64B
|
|
1000 Mb latency
|
<3.0 uSec
|
|
Packet size
|
64B
|
|
10000 Mb latency
|
n/a
|
|
Packet size
|
n/a
|
|
Throughput (Mpps)
|
14.88 Mpps
|
|
Packet size
|
64B
|
|
Switching capacity
|
20 Gbps
|
|
Routing table size (# of static entries)
|
32
|
|
MAC address table size (# of entries)
|
8,000
|
|
Reliability MTBF (years)
|
178
|
|
Environment
|
Operating temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C)
|
|
Non-operating temperature
|
-40°F to 158°F (-40°C to 70°C)
|
|
Non-operating relative humidity
|
15% to 95% @ 140°F (60°C)
|
|
Altitude
|
Up to 10,000ft (3.048 Km)
|
|
Acoustic
|
Power: 0 dB (no fan)
|
|
Electrical Characteristics
|
Frequency
|
50-60 Hz
|
|
AC voltage
|
100-240V
|
|
Current
|
0.2 A
|
|
Maximum power rating
|
11.0 W
|
|
Idle power
|
6.2 W
|
|
PoE power
|
n/a
|
|

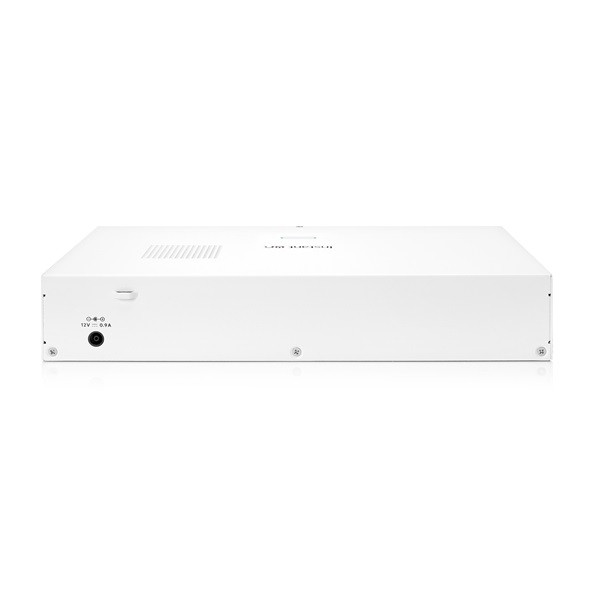

Power supply
|
External power adapter (included)
|
|
Safety
|
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
|
|
Emissions
|
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
|
|
Immunity
|
Generic
|
CISPR 24 / CISPR 35
|
|
EN
|
EN 55024:2010 / EN 55035:2017
|
|
ESD
|
IEC 61000-4-2
|
|
Radiated
|
IEC 61000-4-3
|
|
EFT/Burst
|
IEC 61000-4-4
|
|
Surge
|
IEC 61000-4-5
|
|
Conducted
|
IEC 61000-4-6
|
|
Power frequency magnetic field
|
IEC 61000-4-8
|
|
Voltage dips and interruptions
|
IEC 61000-4-11
|
|
Harmonics
|
IEC 61000-3-2, EN 61000-3-2
|
|
Flicker
|
IEC 61000-3-3, EN 61000-3-3
|
|
Device Management
|
Aruba Instant On solution; Web browser; SNMP Manager
|
