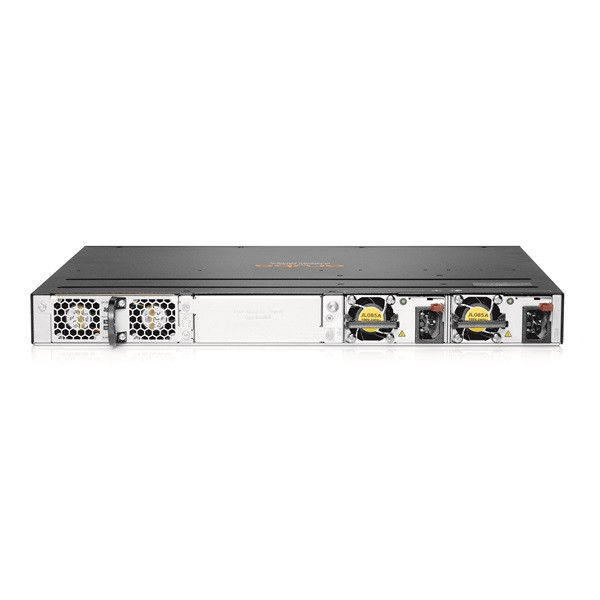

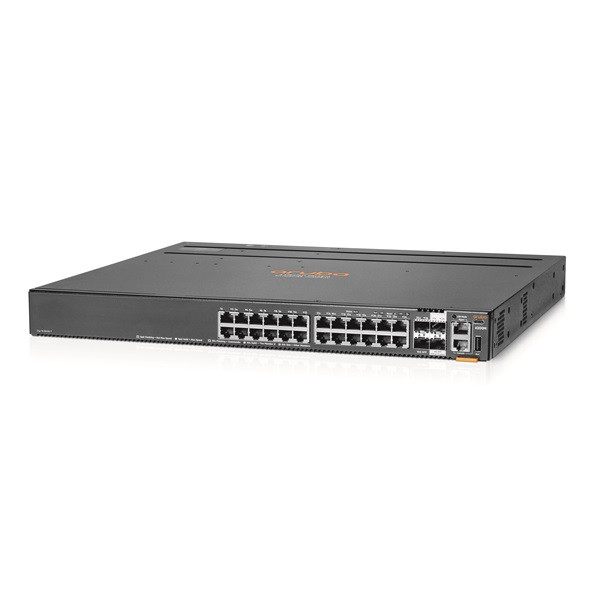

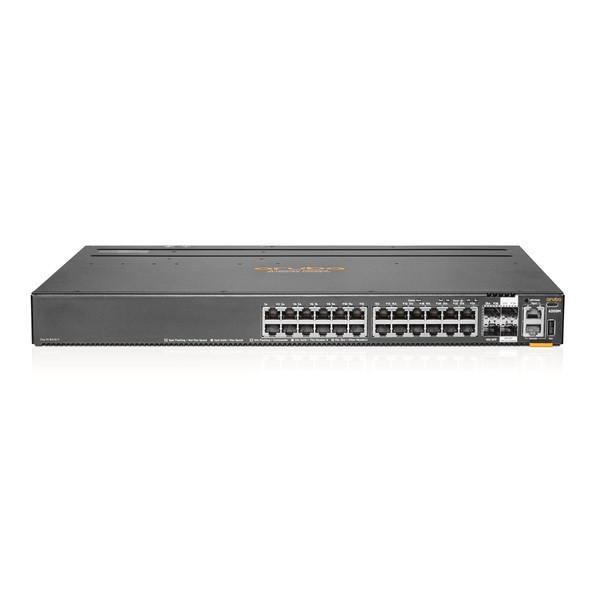

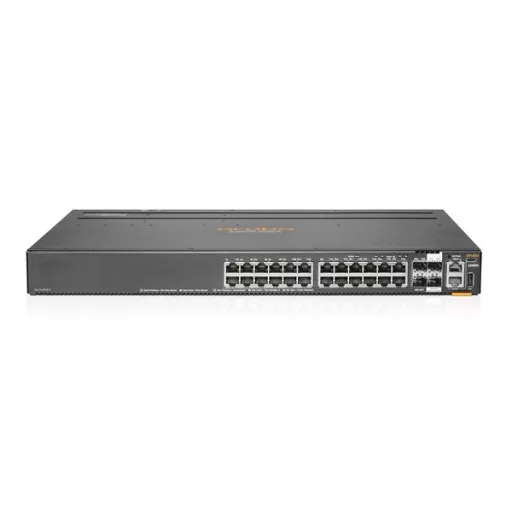

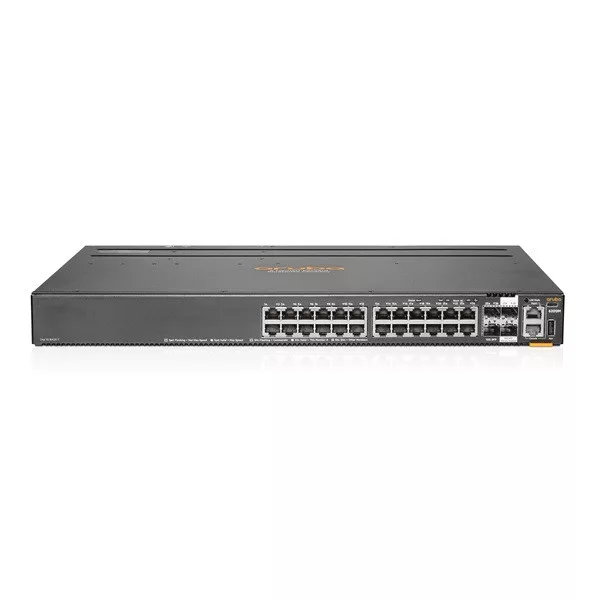

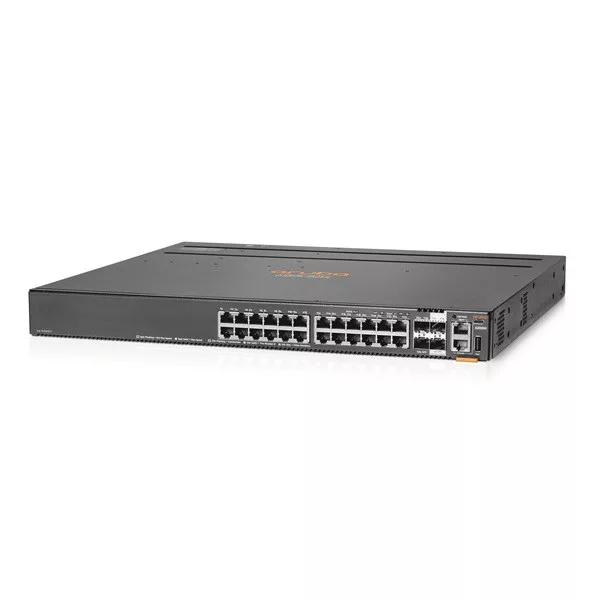

HPE ANW 6200F 48G C4 4SFP+740W Sw

Name: HPE ANW 6200F 48G C4 4SFP+740W Sw
Brand: HP NW
SKU: CS_377986
Price: 3012970 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_377986

nettó: 2 372 417 Ft bruttó: 3 012 970 Ft

HPE ANW 6200F 48G C4 4SFP+740W Sw

Adatok

Gyártó:

HP NW

Gyártói cikkszám:

JL728B

Garancia:

1188 hónap

Gyártó::

HP HEWLETT PACKARD

Gyártó:

HP HEWLETT PACKARD

Garancia (hónap):

1188

Termék gyártója:

HP NW

Tömeg:

7 kg/db

Részletek

Product	6200F 48G CL4 PoE 4SFP+ 740W
Part Number	JL728B S0M90A
Switch Type	Fixed Port
Network OS	ArubaOS-CX
Routing / Switching	Layer 3 Dynamic
Management	Fully Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.42(w) x 12.86(d) x 1.72(h) in (44.25 x 32.66 x 4.37 cm) (1U height)
Weight	11.32 lb (5.13 kg)
Port Types
LAN Ports	48 10/100/1000 CL4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	N/A
SFP+ Ports	4 SFP+ 1/10GbE ports; PHY-less
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	N/A
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD Ports	N/A
Module Slots	N/A
Console Port	1x USB-C Console Port 1x RJ45 Console Port 1x OOBM 1x USB Type-A Host port
Power Supplies
Power supply slots	N/A
Power supply requirements	N/A
Memory and Processor
Memory and Processor	Quad Core ARM Cortex A72 @ 1.8 GHz, 8 GB DDR4; 16 GB eMMC; Packet buffer size: 8 MB
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
Performance
100 Mb Latency	N/A
1000 Mb Latency	< 2.28 µs (LIFO 64-byte packets)
10 Gbps Latency	< 1.46 µs (LIFO 64-byte packets)
40 Gbps Latency	N/A
Throughput	up to 130.9 Mpps
Switching Capacity	176 Gbps
Switch Fabric Speed	N/A
Routing Table Size	2,048 IPv4, 1,024 IPv6
MAC Address Table Size	32,768 entries
MACsec Capable Hardware	No
MACsec Software Support	No
MACsec with EAP-TLS	No
MACsec Capable Uplink Ports	No
Electrical Characteristics
Description	N/A
Voltage	100-120V / 200-240V
Current	11A/6A
Frequency	50/60 Hz
Maximum Power Consumption	76W (idle power: 62W)
Maximum Heat Dissipation	260 BTU/hr 274 kJ/hr
PoE power	740W CL4 PoE
Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Management
Management	Aruba Central, IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager, RMON1

HPE ANW 6200F 48G C4 4SFP+740W Sw

nettó: 2 372 417 Ft bruttó: 3 012 970 Ft
