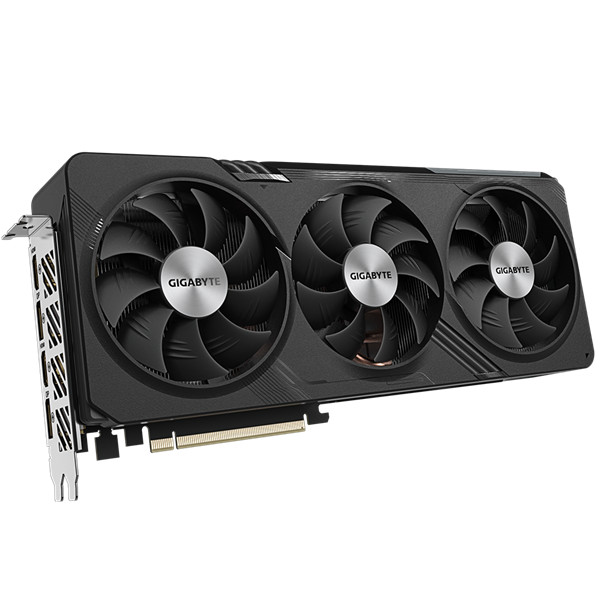

GIGABYTE Videokártya PCI-Ex16x AMD RX 7700 XT 12GB DDR6 OC

Graphics Processing

Radeon™ RX 7700 XT

Core Clock

Boost Clock* : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock* : up to 2276 MHz (Reference card: 2171 MHz)

Stream Processors

3456

Memory Clock

18 Gbps

Memory Size

12 GB

Memory Type

GDDR6

Memory Bus

192 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=302 W=130 H=56 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

700W

Power Connectors

8 Pin*2

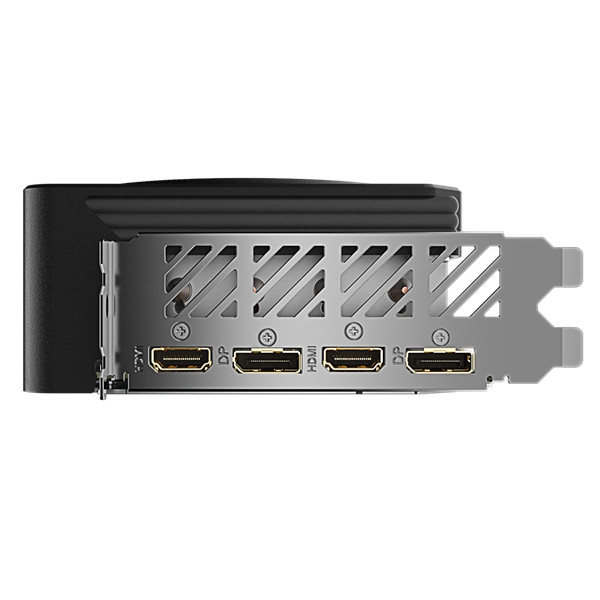

Output

DisplayPort 2.1 *2
HDMI 2.1 *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
