GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 3S Mini UPS
CATALOG NUMBER
3SM36
EAN
3553340705014
PRODUCT LENGTH/DEPTH
136 mm
PRODUCT HEIGHT
30 mm
PRODUCT WIDTH
95 mm
PRODUCT WEIGHT
.37 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
CE
IEC/EN 62040-2
IEC 62477-1
IEC 62040-5-3
MODEL CODE
Eaton 3S Mini 36W
BATTERY
BATTERY TYPE
Lithium-ion
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
User replaceable
ELECTRICAL OUTPUT
OUTPUT NOMINAL VOLTAGE
9 V (12/15/19 V)
RECEPTACLE
(4) Barrel adaptators
WATTAGE
36W
TOPOLOGY
Offline
ELECTRICAL INPUT
INPUT CONNECTION
Other
INPUT CORD LENGTH
1 m
INPUT VOLTAGE RANGE
100-240 V
INPUT FREQUENCY RANGE
46-70 Hz
COMMUNICATIONS
USER INTERFACE

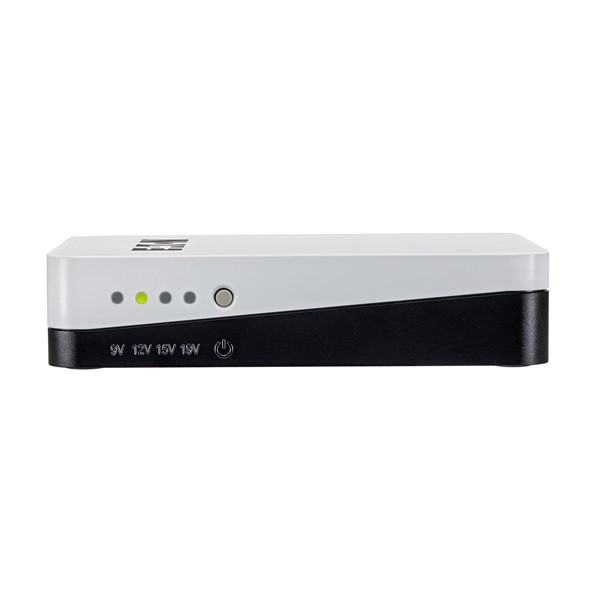

LEDs
ENVIRONMENTAL
ALTITUDE
2000 m
NOISE LEVEL
<25 dB at 1 meter
RELATIVE HUMIDITY
0-85% non-condensing
ADDITIONAL SPECIFICATIONS
PACKAGE CONTENTS
UPS
Input cable

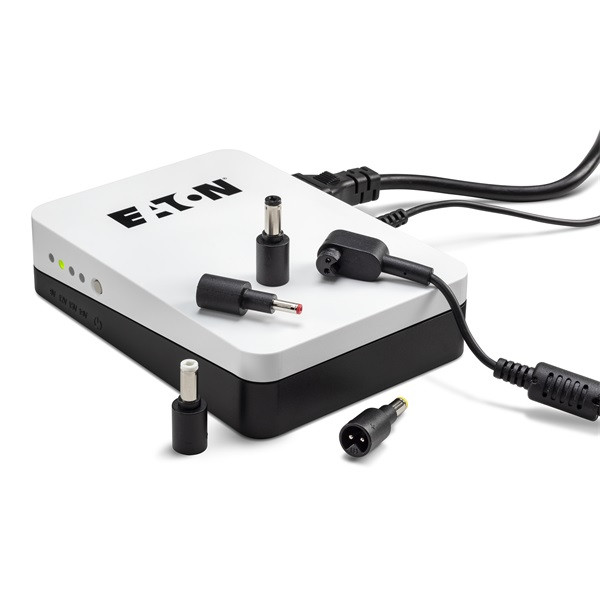

(4) Barrel adaptators
Quickstart guide
COLOR
Black/White
