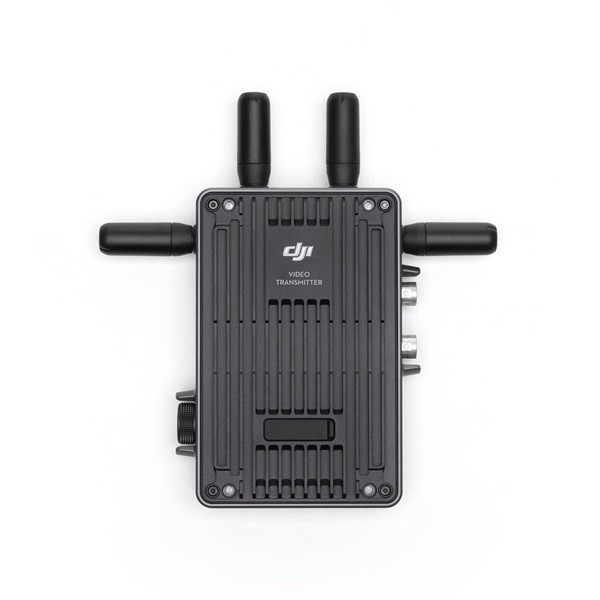

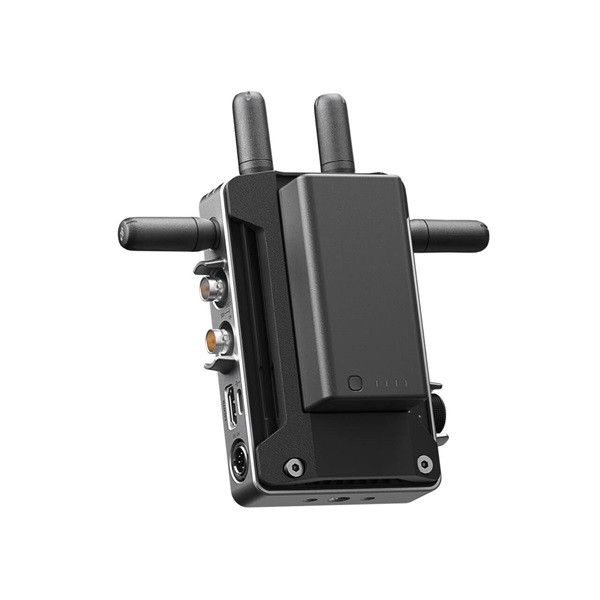

DJI Video Transmitter

Name: DJI Video Transmitter
Brand: DJI
SKU: CS_334643
Price: 495259 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_334643

389 968 Ft + Áfa - 495 259 Ft

DJI Video Transmitter

Adatok

Gyártó:

DJI

Gyártói cikkszám:

CP.RN.00000180.01

Gyártó-:

DJI

-Gyártó:

DJI

Termék gyártója:

DJI

Gyártó:

DJI

Részletek

DJI Video Transmitter

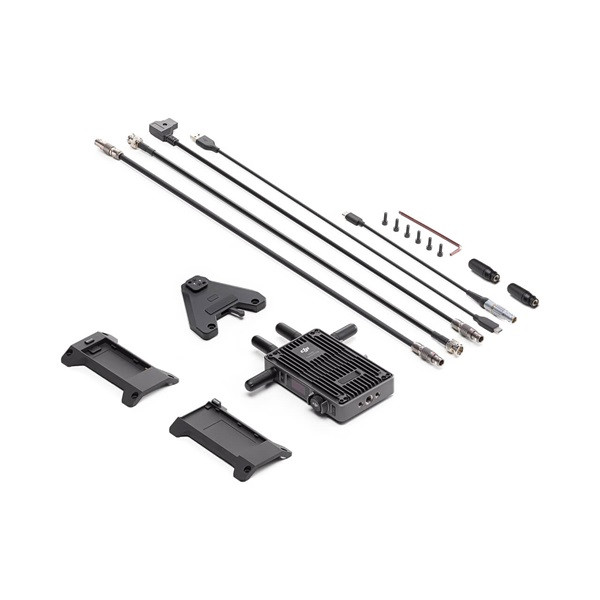

In the Box

Video Transmitter × 1
WB37 Battery Adapter (TX) × 1
NP-F Battery Adapter (TX) × 1
Ronin Video Transmission Antenna × 2
USB-C Cable × 1
SDI Cable × 1
DC Power Cable × 1
DC to P-TAP Power Cable × 1
DJI Transmission USB-C Power Cable × 1
RS Gimbal Mounting Plate × 1
Installation Toolkit × 1
.

Specs

Specifications

Weight:

Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
Dimensions:

Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
Operating Frequency:

Non DFS Frequency Band:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz"
Transmitter Power (EIRP):

2.4000-2.4835 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)

5.250-5.350 GHz:
<30 dBm (FCC)
<23 dBm (SRRC/MIC)

5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC)
<23 dBm (CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC/SRRC)
<14 dBm (CE)
Max Bandwidth: 40 MHz
Max Bitrate: 40 Mbps
Power Consumption: 11 W
Power Supply Voltage: 6 to 18 V
Output Voltage: Power Output Port: 6 to 18 V
Operating Time:

Video Transmitter: 3 hours 40 minutes ^[1]
High-Bright Remote Monitor: 2 hours ^[1]
Input Video Format:

3G SDI: YCbCr 4:2:2 10-bit
HDMI RGB 4:4:4
1080p: 24/25/30/50/60fps
1080i: 50/60fps
720p: 50/60fps
Output Video Format:

3G SDI: YCbCr 4:2:2 10-bit
1080p: 24/25/30/50/60fps
1080i: 50/60fps
720p: 50/60fps
Input Audio Format: SDI embedded, HDMI embedded
Output Audio Format: PCM
Video Transmission System: O3 Pro
Video Transmission Latency:

68 ms ^[2]
100 ms ^[3]
Video Coding Format: H.264
Max Transmission Distance:

6 km (FCC) ^[4]
4 km (CE/SRRC/MIC) ^[4]
Operating Temperature: -10° to 45° C (14° to 113° F)
Mirror Control Mode Supported Camera Models: ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
.

Other

Notes

1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
2. Measured when shooting 1080p/60fps video.
3. Measured when shooting 1080p/24fps video.
4. In open environments free of obstructions or interference.

DJI Video Transmitter

389 968 Ft + Áfa - 495 259 Ft
