Item |

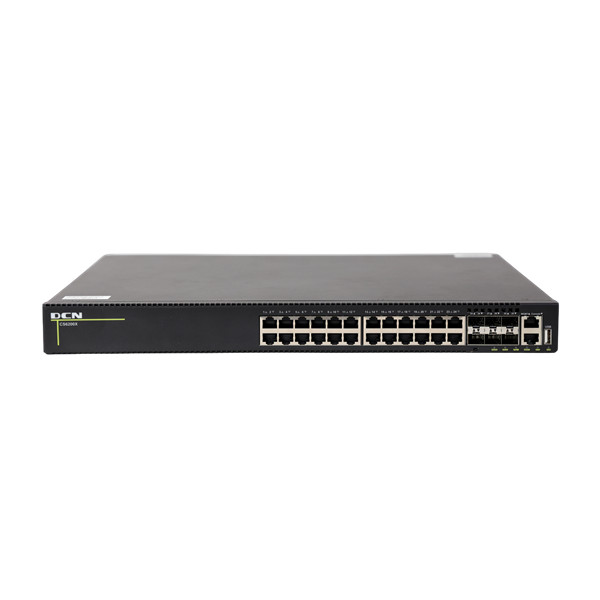

CS6200X-24T6X-EI |
CS6200X-48T6X-EI |
CS6200X-24T6X-P-EI |
CS6200X-48T6X-P-EI |
|
Port Fisik |
24*10/100/1000Base-T + 6*10GbE(SFP+) MIDX Otomatis |
48*10/100/1000Base-T + 6*10GbE(SFP+) MIDX Otomatis |
24*10/100/1000Base-T PoE + 6*10GbE(SFP+) MIDX Otomatis |
48*10/100/1000Base-T PoE + 6*10GbE(SFP+) MDIX Otomatis |
|
Port Manajemen |
1 x RJ45 port Ethernet Manajemen |
|
1x port Konsol |
|
1x interface USB2.0 |
|
Performa |
|
Kapasitas Switching |
168Gbps |
216Gbps |
168Gbps |
216Gbps |
|
Throughput |
125Mpps |
161Mpps |
125Mpps |
161Mpps |
|
Frame Jumbo |
12K |
12K |
12K |
12K |
|
Alamat MAC |
32K |
32K |
32K |
32K |
|
Tabel ARP |
8K |
8K |
8K |
8K |
|
Routing Table |
12K |
12K |
12K |
12K |
|
Tabel ACL |
3K |
3K |
3K |
3K |
|
Fisik |
|
Dimensi (L*T*D) |
440mm x 44mm x 380mm |
440mm x 44mm x 380mm |
440mm x 44mm x 380mm |
440mm x 44mm x 380mm |
|
Kelembaban Relatif |
5%~95%, non-condensing |
|
Suhu |
Kerja 0°C~50°C, penyimpanan -40°C~70°C |
|
Catu Daya |
AC:100~240VAC, 50~60Hz |
|
Konsumsi Daya |
<50W |
<55W |
<820W |
<1180W |
|
PoE |
NA |
NA |
IEEE 802.3af
IEEE 802.3at
Total daya PoE:
500W dengan PSU tunggal
& 1000W dengan PSU ganda |
IEEE 802.3af
IEEE 802.3at
Total daya PoE:
500W dengan PSU tunggal
& 1000W dengan PSU ganda |
|
Fitur Utama |
|
Fitur L1, L2 |
IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4) |
|
Deteksi loopback port
LLDP dan LLDP-MED
UDLD
802.3ad LACP, maks 128 grup trunks dengan maks 8 ports untuk setiap trunk
LACP load balance |
|
N:1 Port Mirroring
RSPAN
ERSPAN |
|
IEEEE802.1d(STP)
IEEEE802.1w(RSTP)
IEEEE802.1s(MSTP)
Root Guard
BPDU Guard
Tunel BPDU |
|
802.1Q, VLAN 4K
VLAN MAC, VLAN Vocie, PVLAN, VLAN Protokol, VLAN Multicast
QinQ, Fleksibel QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control |
|
Snooping IGMP v1/v2/v3 dan L2 Query
Snooping ND
Snooping MLDv1/v2 |
|
Keamanan Port |
|
Flow Control: HOL, IEEE802.3x
Bandwidth Control |
|
Fitur L3 |
Routing Static,RIPv1/v2,OSPFv2,BGP4
OSPFv3, BGP4+
Proses multiple OSPF
Routing LPM
Policy-based Routing(PBR) untuk IPv4 dan IPv6
VRRP
URPF,
ECMP
BFD |
|
IGMP v1/v2/v3, IGMP Proxy,
DVMRP,PIM-DM,PIM-SM,PIM-SSM, Any Cast RP, MSDP
Route Multicast Static
Multicast Receive Control
Deteksi Sumber Multicast ilegal |
|
ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP Cheat, Anti ARP Scan |
|
DNS Client, DNS Relay |
|
Tunel GRE |
|
IPv6 |
Tunel 6to4, Tunel Configured, Tunel ISATAP, Tunel GRE
ICMPv6,ND,DNSv6
Routing LPM IPv6 LPM,IPv6 Policy-based Routing(PBR)
IPv6 VRRPv3,IPv6 URPF,IPv6 RA
RIPng,OSPFv3,BGP4+
Snooping MLD, VLAN Multicast IPv6
MLDv1/v2, PIM-SM/DM for IPv6, IPv6 Any Cast RP, IPv6 ACL, IPv6 QoS |
|
QoS
|
8 Queues
SWRR, SP, WRR, WDRR, SWDRR
Klasifikasi lalu-lintas berdasarkan pada 802.1p COS, ToS, DiffServ DSCP, ACL, nomer port
Traffic Policing
PRI Mark/Remark |
|
ACL |
IP ACL ,MAC ACL,IP-MAC ACL
Standar dan Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
Redirect dan Statistik
Aturan dapat dikonfigurasi ke port, VLAN, interface routing VLAN
Time Ranged ACL |
|
Keamanan
|
802.1x AAA
Port, Otentikasi berbasis MAC
Penghitungan berdasarkan lamanya waktu dan lalu lintas
VLAN Guest dan VLAN otomatis |
|
RADIUS untuk IPv4 dan IPv6 |
|
TACACS+ untuk IPv4 dan IPv6 |
|
MAB |
|
DHCPv4/v6
|
Server/Klien DHCP untuk IPv4/IPv6
Relay DHCP/Option 82
Snooping DHCP/Option 82 |
|
Monitor lalu-lintas |
Analisa lalu lintas sFlow |
|
Manajemen keamanan Jaringan |
CLI, WEB, Telnet, SNMPv1/v2c/v3 melalui IPv4 dan IPv6
Syslog dan external Syslog Server
HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP
SNTP/NTP
RMON 1,2,3,9
Otentikasi oleh Radius/TACACS
SSH v1/v2
Image firmware ganda/File konfigurasi
802.3ah OAM, 802.1ag OAM |
|
Fitur Data Center |
VSF(Virtual Switch Framework) |
