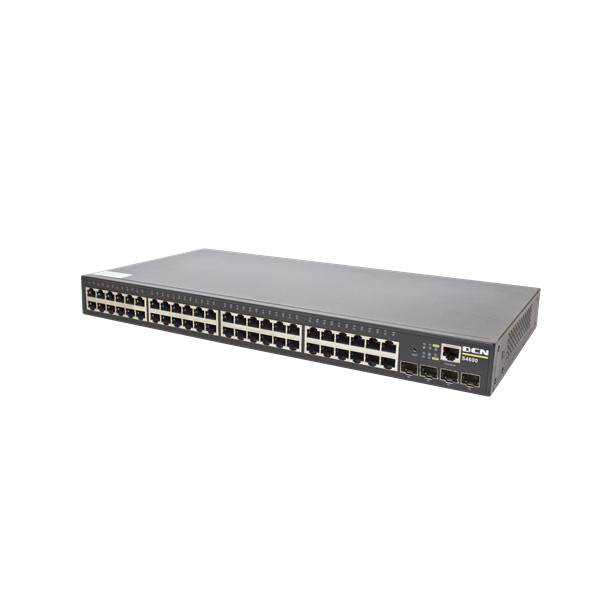

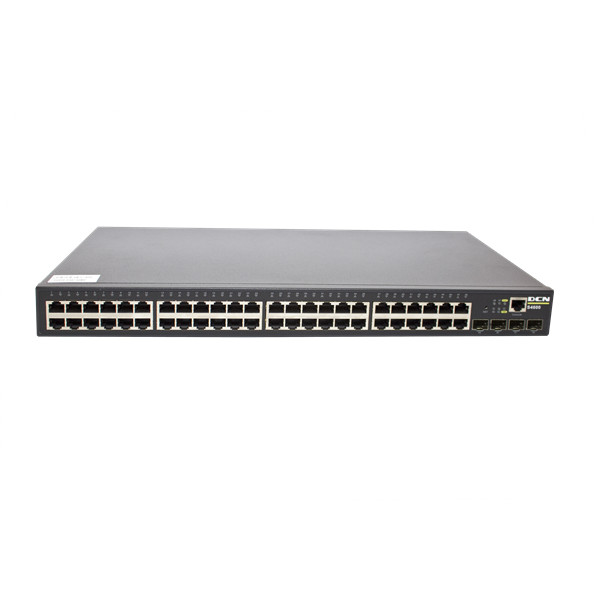

10/100/1000 Base-T (RJ45) ports
48
100/1000 Base-X (SFP) ports
4
Performance
Switching matrix
104 Gbps
Data transfer rate
78 Mpps
Packet Buffer
3 MB (2x 1,5 MB)
JUMBO Frame
12 K
Number of VLANs
4 K
MAC address table
16 K
Multi-broadcast support
1 K
MAC address table additional information
Shared MAC address array for unicast and multicast (1:1 ratio)
ACL Table
2 K
Number of Vlan Interfaces (IP)
16
CPU Clock
800 MHz
Flash memory
32 MB
RAM memory
128 MB
Features
Enhanced Accessibility Features
IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1 s (MSTP), IEEE 802.3 ad LACP, Virtual Cable Testing, DDM, LLDP, Loop Guard, ERPS (ITU-T G.8032)
Traffic control
IEEE 802.1Q, Port-based VLAN, Protocol-based VLAN, IP Subnet-based VLAN, Voice VLAN, MAC VLAN, Source/Destination IP LACP Algorithm (Load Balancing), GVRP, IEEE 802.1ad Vlan Stacking (QinQ), Selective QinQ, Flexible QinQ
Security
Layer 2 MAC filtering, BPDU Tunnel, Radius and Tacacs+ login authentication and authorization, Tacacs+ accounting/auditing, SSH v1/v2, DHCP/DCHPV6 Snooping, IP/IPv6 Source Guard, Port Security
QoS
IEEE 802.1p Priority Queues per Port (8 Queues), IEEE 802.1p Quering method, Trusted COS/TOS/IP Precedence/DSCP/Port number, Broadcast Storm Control, Rate Limiting, port based, Quering method - Strict priority/ Weighted Round Robin/ Weighted Deficit Round Robin Ścisły priorytet w Weighted Round Robin
Multiemisja L2/L3
Multicast VLAN, IGMP v1,v2, v3, IGMP Query, IGMP Snooping (v1/v2/v3), IGMP Snooping Fast Leave (v2,v3), IPv6 MLD v1/v2 Snooping
L3 IPv6
IPv4/IPv6 Dual Protocol Stack, IPv6 address
Management
Console port RS-232 (RJ45), GUI (Web), Telnet, SNMP v1/v2c/v3, TFTP/FTP, Configuration backup and restore, Multi-level CLI, DHCP Client/Relay/Server, DHCP relay per VLAN, DHCP option 43/60/82, DHCPv6 option 37/38, DHCPv6 Relay/Server, SNTP/NTP SP, sFlow, Port Mirroring for IP/TCP/UDP, RSPAN, IEEE 802.3ah EFM, IEEE 802.1ag CFM
MIB
RFC 1066 TCP/IP-based MIB, RFC1213, 1157 SNMPv2c/v3 MIB, RFC1493 bridge MIB, RFC 2674 bridge MIB extension, RFC1643 ethernet MIB, RFC1757 RMON group 1/2/3/9, RFC 2925 Remote Management MIB, RFC 2233 (rfc2233) - SMIv2 MIB
Electric
Power Supply
230 V AC
Maximum power consumption
? 40 W
