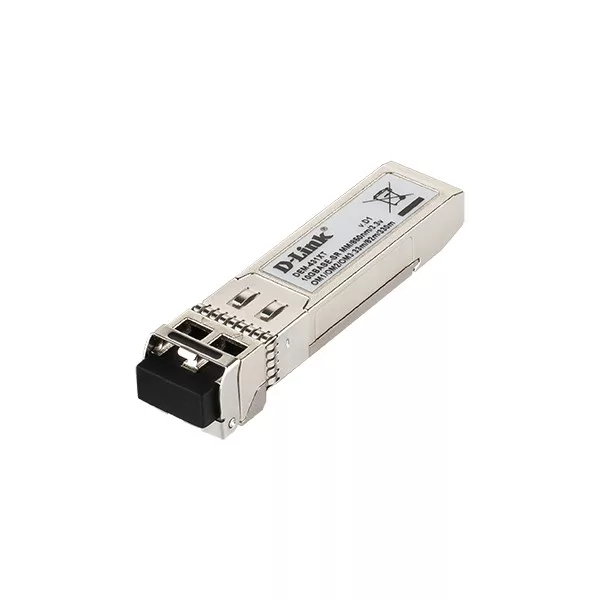

D-LINK Switch SFP+ Modul 10GBase-SR + LC adóvevő, DEM-431XT/10 (10-PACK)

Name: D-LINK Switch SFP+ Modul 10GBase-SR + LC adóvevő, DEM-431XT/10 (10-PACK)
Brand: DLINK
SKU: CS_335232
Price: 432820 HUF
Availability: InStock

Rendelhető

Cikkszám:

CS_335232

nettó: 340 803 Ft bruttó: 432 820 Ft

D-LINK Switch SFP+ Modul 10GBase-SR + LC adóvevő, DEM-431XT/10 (10-PACK)

Adatok

Gyártó:

DLINK

Gyártói cikkszám:

DEM-431XT/10

Garancia:

24 hónap

Gyártó::

DLINK

Gyártó:

DLINK

Garancia (hónap):

Termék gyártója:

DLINK

Tömeg:

800 g/db

Részletek

Specifications

Standard
Standard Compliance		IEEE-802.3ae, 10GBASE-SR
Form Factor Type		SFP+
Fibre Channel FC-PI Standard		1200-Mx-SN-I
Fiber Media Support		Multi-Mode
Distance Capacity		62.5 μm, 160 MHz-km: 26 m 62.5 μm, OM1 200 MHz-km: 33 m 50 μm, 400 MHz-km: 66 m 50 μm, OM2 500 MHz-km: 82 m 50 μm, OM3 2000 MHz-km: 300 m
Features		Hot Pluggable MSA Compliant RoHS Compliant
Speed		10 Gbps
Connector		Duplex LC Connector
Single/Bi-Directional		Single Direction
WavelengthTX		1330nm, RX: 850 nm
Output Optical Power (TX Optical Power)		Max.: -1 dBm Min.: -6.5 dBm
Input Optical Power (RX Optical Power)		Max.: -1 dBm Min.: -11.1 dBm
Sensitivity		-11.1 dBm
Cable Type		Multi-mode 50/125 um or 62.5/125 um fiber
Power		3.3V
Maximum Input Current		3.3V: 300mA
Minimum Power Budget		4.6 dB
Maximum Power Budget		10.1 dB
Heat Generated		3.6 kJ/h
MTBF (hours)		3,960,000
DDM (Digital Diagnostics Monitoring)		-
Operating temperature		0 to 70°C
Storage temperature		-40 to 85 °C
Operating humidity		5 to 85%
Storage humidity		5 to 95%
Dimensions		Compliant with SFF8432 14.8 x 56.5 x 11.85mm
Weight		18 g
Bail Latch Color		Beige
EMI		CE, FCC, VCCI
Safety		UL, TUV, CDRH

D-LINK Switch SFP+ Modul 10GBase-SR + LC adóvevő, DEM-431XT/10 (10-PACK)

nettó: 340 803 Ft bruttó: 432 820 Ft
