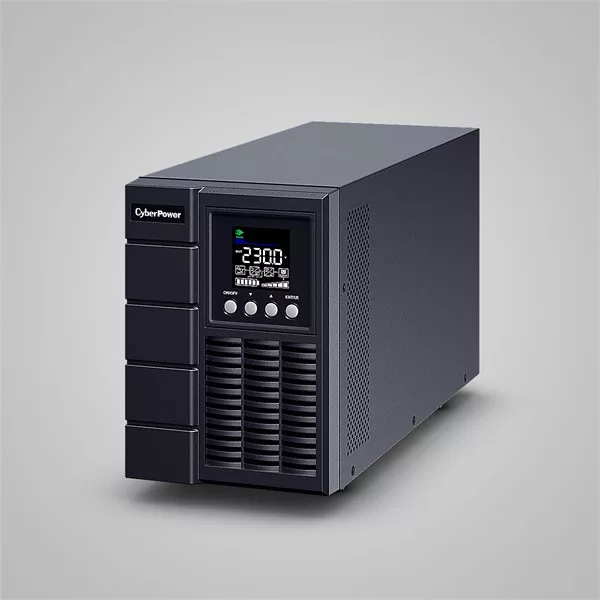

CYBERPOWER UPS OLS1500EA MainStream OnLine torony szünetmentes tápegység, kettős konverzió

CYBERPOWER UPS OLS1500EA MainStream OnLine torony szünetmentes tápegység, kettős konverzió

Name: CYBERPOWER UPS OLS1500EA MainStream OnLine torony szünetmentes tápegység, kettős konverzió
Brand: CYBERPOWER
SKU: CS_299219
Price: 247270 HUF
Availability: InStock

Központi készleten, szállítás 2-3 nap!

Cikkszám:

CS_299219

nettó: 194 701 Ft bruttó: 247 270 Ft

Raktárkészletek

Központi készleten 3 db

CYBERPOWER UPS OLS1500EA MainStream OnLine torony szünetmentes tápegység, kettős konverzió

Adatok

Gyártó:

CYBERPOWER

Gyártói cikkszám:

OLS1500EA-DE

EAN:

4711027790299

EAN:

4711027790299

Garancia:

24 hónap

Gyártó::

CYBERPOWER

Teljesítmény VA:

1500

Beépített adatvonal-védelem:

Van

Kapcsolási mód:

Online

Gyártó:

CYBERPOWER

Garancia (hónap):

Termék gyártója:

CYBERPOWER

Tömeg:

20 kg/db

Részletek

GENERAL

Phase

Single Phase

Form Factor

Tower

UPS Topology

Online Double Conversion

Energy Saving Technology

Online ECO Mode Efficiency > 95%

Active PFC Compatibility

Yes

INPUT

Generator Compatibility

Yes

Nominal Input Voltage ( Vac )

230 ± 10%

Input Voltage Range ( Vac )

190 ~ 300

Adjustable Voltage Range ( Vac )

0~50% Load for 110 ~ 300 Vac

0~60% Load for 120 ~ 300 Vac

0~80% Load for 140 ~ 300 Vac

0~100% Load for 160 ~ 300 Vac

Input Frequency ( Hz )

50 ± 10

60 ± 10

Input Frequency Detection

Auto-sensing

Rated Input Current ( A )

Input Power Factor

0.98

Input Connector Type

IEC C20

Detachable Power Cord Plug Type

Schuko x 1

Power Cord Length (ft.)

Power Cord Length (m.)

1.5

OUTPUT

Capacity (VA)

1500

Capacity (Watts)

1350

On Battery Waveform

Pure Sine Wave

On Battery Voltage(s) ( Vac )

208 ± 1%

220 ± 1%

230 ± 1%

240 ± 1%

Output Voltage Setting

Configurable

On Battery Frequency ( Hz )

50 ± 0.5%

60 ± 0.5%

Output Frequency Setting

Configurable

Power Factor

0.9

ECO Mode Voltage Tolerance

± 15 %

Overload Protection

Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)

110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)

110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)

>130% Load Immediately

Crest Factor

3 : 1

Harmonic Distortion (Linear Load)

THD<3%

Harmonic Distortion (Non-linear Load)

THD<5%

Internal Bypass

Automatic Bypass, Manual Bypass

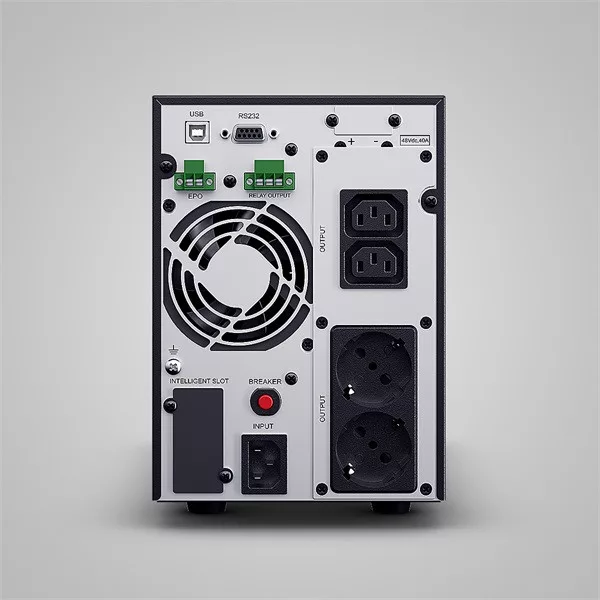

Outlet(s) - Total

Outlet Type

IEC C13 x 2
Schuko x 2

Outlet(s) - Battery & Surge Protected

Typical Transfer Time ( ms )

BATTERY

Runtime at Half Load ( min )

Runtime at Full Load ( min )

Typical Recharge Time ( Hours )

Maximum Charging Current ( A )

1.5

Start On Battery

Yes

Smart Battery Management (SBM)

Yes

User-replaceable

Battery Type

Sealed Lead-acid

Single Battery Capacity ( AH )

12 V 7 AH

Compatible Extended Battery Module (EBM)

BPSE48V40A

Max. EBM Quantity ( pcs )

SURGE PROTECTION & FILTERING

Surge Suppression ( Joules )

345

EMI/RFI Filtration

Yes

MANAGEMENT & COMMUNICATIONS

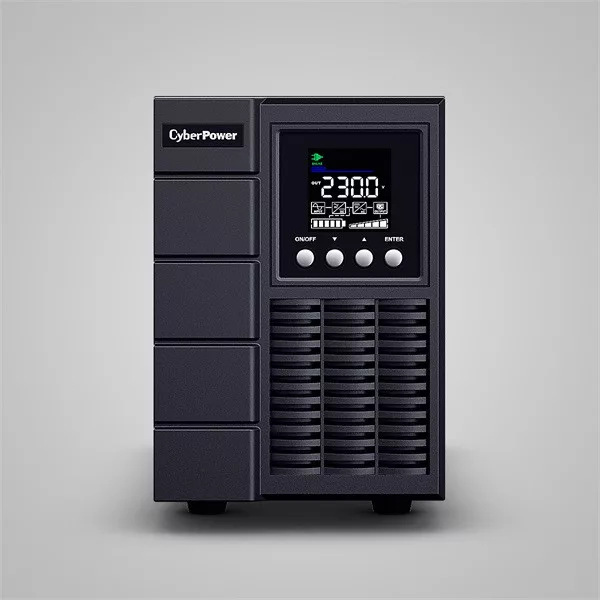

LCD Panel

Yes

Color LCD

Yes

LCD Information Display

Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control

Mode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s)

Dry Contact (with Relay)

Yes

Emergency Power Off (EPO) Port

Yes

Audible Alarms

Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )

USB Cable x1

Power Management Software

PowerPanel® Business (Recommended)

SNMP/HTTP Remote Monitoring

Yes - with optional RMCARD205

PHYSICAL

Enclosure Construction

Metal

Color

Black

PHYSICAL SIZE - UPS MODULE

Dimensions (WxHxD) (in.)

5.9 x 8.9 x 15.5

Dimensions (WxHxD) (mm.)

151 x 225 x 394

Weight (lbs.)

31.7

Weight (kg.)

14.4

ENVIRONMENTAL

Operating Temperature (°F)

32 ~ 104

Operating Temperature (°C)

0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

20 ~ 90

Operating Elevation ( feet/meters )

0-4,921 feet (0-1,500 meters)

Storage Temperature (°F)

-4 ~ 122

Storage Temperature (°C)

-20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

10 ~ 90

Storage Elevation ( feet/meters )

0-4,921 feet (0-1,500 meters)

Online Thermal Dissipation ( BTU/hr )

682

Variable Speed Fans

20 steps automatically

CERTIFICATIONS

Certifications

RoHS

Yes
