| Part No |
90NB11R1-M00C90 |
| Model Name |
UX3405MA-PP273W |
| TTV |
2023-12-28 |
| End of Production |
2024-12-31 |
| EAN Code |
4711387411650 |
| UPC Code |
197105411654 |
| WEEE |
1.05 |
| BASE UNIT |
VSNB11R1-BU2101 |
| |
|
| Marketing Name |

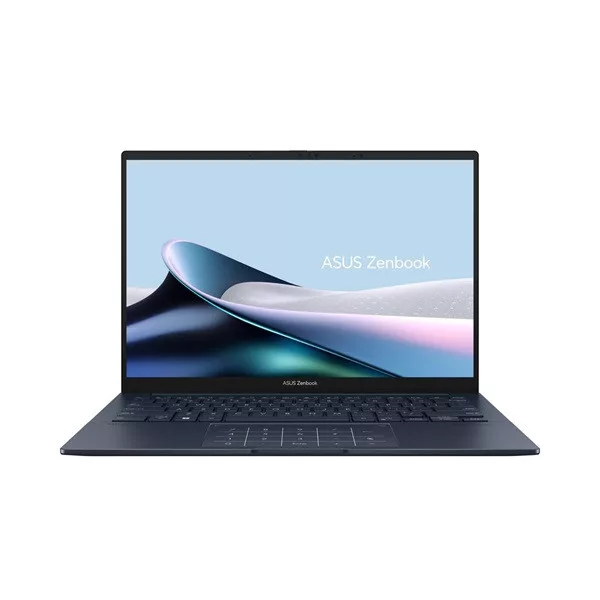

ASUS Zenbook 14 OLED |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Ponder Blue |
| Top case-material |
Aluminum |
| Top case-color |
Ponder Blue |
| Keyboard color |
Blue |
| Bottom case-material |
Aluminum |
| Bottom case-color |
Ponder Blue |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Non-touch screen |
| Panel Size |
14.0-inch |
| Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio |
| Backlit |
LED Backlit |
| Response time |
0.2ms response time |
| Refresh rate |
120Hz refresh rate |
| Brightness |
400nits |
| Peak Brightness |
600nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 600 |
| Color depth |
1.07 billion colors |
| Glare |
Glossy display |
| Low blue light |
70% less harmful blue light |
| T?V Rheinland-certified |
TÜV Rheinland-certified |
| SGS Eye Care Display |
SGS Eye Care Display |
| Intel Athena Program |
Intel® Evo™ Platform |
| Processor |
Intel® Core™ Ultra 9 Processor 185H 2.3 GHz (24MB Cache, up to 5.1 GHz, 16 cores, 20 Threads) |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
Intel® Arc™ Graphics |
| Disclaimer for Intel Iris Xe |
*Intel® Arc™ Graphics is only available in models with Intel® Core™ Ultra 9-185H/ Ultra 7-155H/ Ultra 5-125H processors and at least 16 GB of dual-channel memory. |
| VRAM |
N/A |
| Expansion Slot(includes used) |
N/A |
| On board memory |
32GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 32GB |
| Disclaimer for memory |
*Supports dual-channel memory. |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello ; With privacy shutter |
| on board Wireless |
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Touchpad |
Touchpad
support NumberPad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 3.2 Gen 1 Type-A
2x Thunderbolt™ 4 supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack |
| Audio |
Smart Amp Technology
Built-in speaker
Built-in array microphone
harman/kardon (Premium) |
| Voice control |
N/A |
| AC Adapter |
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100-240V AC 50/60GHz universal |
| Battery |
75WHrs, 2S2P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Keyboard type |
Backlit Chiclet Keyboard |
| Dimension (WxHxD) |
31.24 x 22.01 x 1.49 ~ 1.49 cm (12.30" x 8.67" x 0.59" ~ 0.59") |
| Weight (with Battery) |
1.20 kg (2.65 lbs) |
| Weight (without Battery) |
0.91 kg (2.01 lbs) |
| Antivirus |
McAfee® 30 days free trial |
| Security |
McAfee® 30 days free trial
IR webcam with Windows Hello support
McAfee®
Trusted Platform Module (TPM) 2.0 |
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
ASUS OLED Care
AI Noise Canceling |
| Built-in Apps |
MyASUS
ScreenXpert
GlideX |
| Adobe Creative Cloud Hard Bundle |
One-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2024. |
| Included in the Box |
USB-A to RJ45 gigabit ethernet adapter |
| Reparability Index (for France) |
8.3 |
| |
|
