| PERFORMANCE |
| Processor |
Intel® Core™ Ultra 7 155H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 4.8GHz, 24MB |
| AI PC Category |
AI PC |
| NPU |
Integrated Intel® AI Boost, up to 11 TOPS |
| Graphics |
Integrated Intel® Arc™ Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
2x 16GB SO-DIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5600 |
| Storage |
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB each |
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots |
| Card Reader |
SD Card Reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3287 codec |
| Speakers |
Stereo speakers, 2W x2, Dolby Audio™ |
| Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
| Microphone |
2x, Array |
| Battery |
Integrated 71Wh |
| Power Adapter |
100W USB-C® Slim (3-pin) |
| Special Features |
Modern Standby |
| DESIGN |
| Display |
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz |
| Touchscreen |
None |
| Color Calibration |
None |
| Keyboard |
Backlit, Hungarian |
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Case Color |
Arctic Grey |
| Surface Treatment |
Anodizing Sandblasting |
| Case Material |
Aluminium (Top), PC-ABS (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches) |
| Weight |
Starting at 1.7 kg (3.75 lbs) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| CONNECTIVITY |
| Ethernet |
100/1000M (RJ-45) |
| WLAN + Bluetooth |
Wi-Fi® 6E, 802.11ax 2x2 + BT5.3 |
| WWAN |
Non-WWAN |

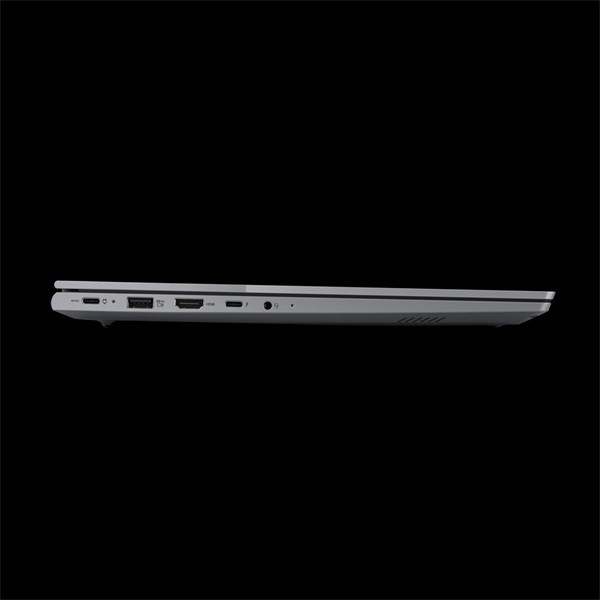

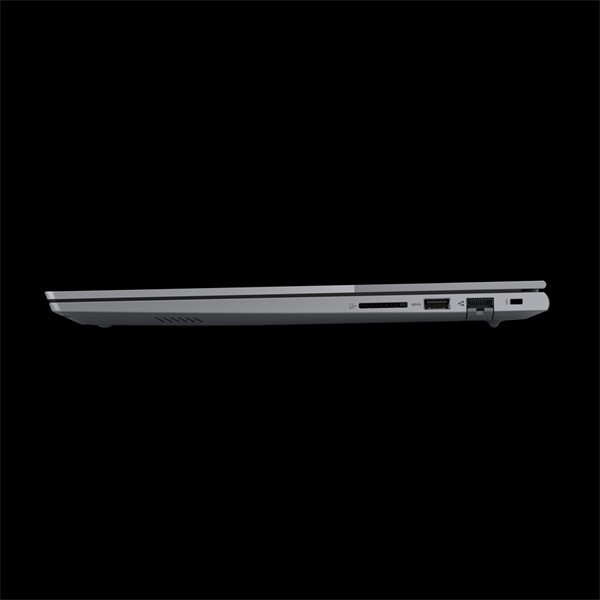

| Standard Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x SD card reader
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 16 G7 IML |
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 Enabled |
| Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
| Physical Locks |
Kensington® Nano Security Slot™, 2.5 x 6 mm |
| Other Security |
- Camera privacy shutter
- IR camera for Windows® Hello (facial recognition)
|
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in Windchill (CPN) |
| ACCESSORIES |
| Bundled Accessories |
None |
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 6/26
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
TÜV Rheinland® Low Blue Light (Software Solution) |
| Mil-Spec Test |
MIL-STD-810H military test passed |
| MODEL INFORMATION |
| Model |
21MS007NHV |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
197530801150 |
| Announce Date |
2024-02-18 |
| End of Support |
2030-09-26 |
