Connector(s)
Connector A
1 - USB-C (DP Alt-Mode)
Connector B
1 - HDMI
Environmental
Operating Temperature
0°C to 40°C (32F° to 104F°)
Storage Temperature
0°C to 75°C (32F° to 167F°)
Humidity
80% RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
AV Output
HDMI
Audio
Yes
Cable Jacket Material
PVC
Chipset ID
VMM7100
Packaging Information
Package Length
8.7 in [22.0 cm]
Package Width
7.9 in [20.0 cm]
Package Height
0.9 in [2.2 cm]
Shipping (Package) Weight
3.5 oz [98.7 g]
Package Quantity
1
Performance
Video Revision
HDMI 2.1 FRL
Maximum Digital Resolutions
8K 60Hz
Supported Resolutions
7680x4320 60Hz
5120x1440 60Hz
3840x2160 144Hz
3840x2160 120Hz
3840x2160 60Hz
2560x1440 60Hz
1920x1080 60Hz
Other resolutions and refresh rates may be available
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Space Gray
Product Length
6.6 ft [2.0 m]
Product Width
0.8 in [2.1 cm]
Product Height
0.4 in [1.1 cm]
Weight of Product
3.1 oz [87.0 g]
Accent Color
Black
Material
Plastic
PVC
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
System and Cable Requirements
The host USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications.
What's in the Box
Included in Package

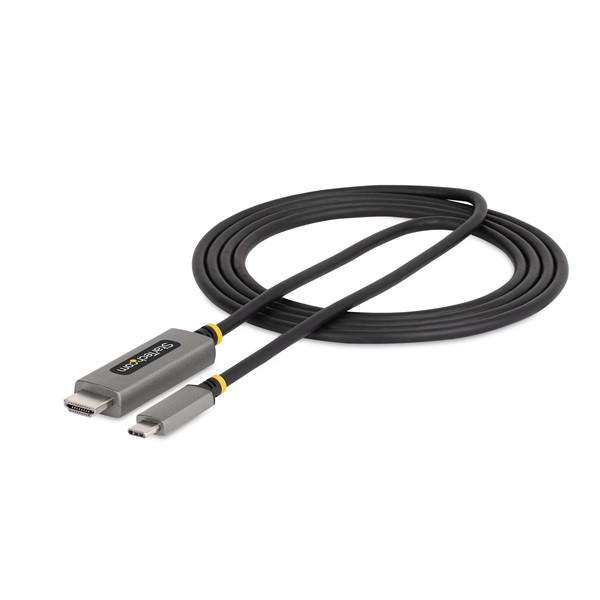

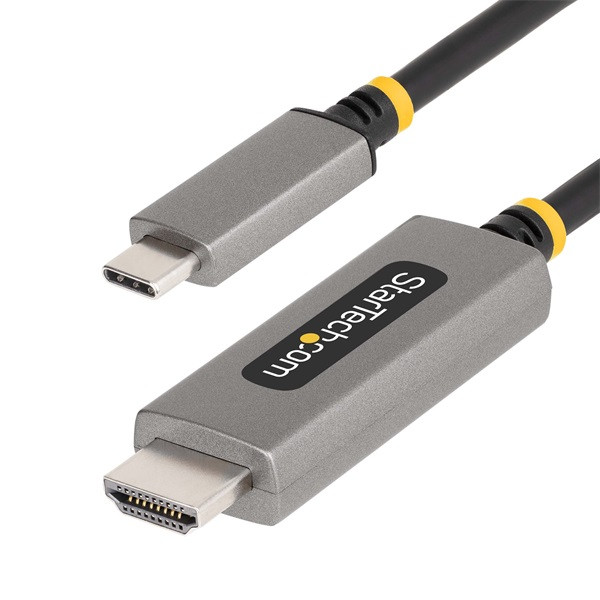

1 - USB-C to HDMI Adapter Cable
