| Mechanical |
| Dimensions |
220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89") |
Weight
With Mounting Hardware
Without Mounting Hardware |
830 g (1.83 lb)
700 g (1.54 lb) |
| Enclosure Characteristics |
Outdoor UV Stabilized Plastic |
| HARDWARE |
| Processor Specs |
Dual-core SMP Krait CPU at 1.4 GHz |
| Memory Information |
4GB DDR3 |
| Management Interface |
Ethernet or WiFi |
| Networking Interface |
(2) 10/100/1000 Ethernet Ports |
| Ports |

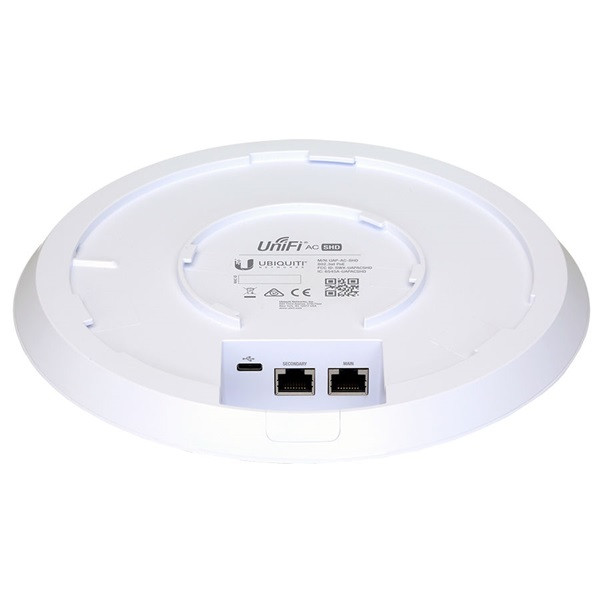

(2) Ethernet RJ45, (1) USB Type C |
| Radios |
2.4 GHz, 5 GHz, Security |
| Max. Power Consumption |
20W |
| Supported Voltage Range |
44VDC to 57VDC |
| Power Method |
802.3at PoE+ |
| Power Supply |
UniFi Switch (PoE) |
| Power Save |
Supported |
| Beamforming |
Supported |
| Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
802.11w (PMF) |
| BSSID |
Up to 8 per Radio |
| Buttons |
Reset |
| Wi-Fi Standards |
802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
Antennas
2.4 GHz
5 GHz |
(2) Dual-Port, Dual-Polarity Antennas, 6 dBi each
(2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
TX Power
2.4 GHz
5 GHz |
6-25 dBm
6-25 dBm |
MIMO
2.4 GHz
5 GHz |
4x4
4x4 |
Speeds
2.4 GHz
5 GHz |
800 Mbps
1.7 Gbps |
| Mounting |
Wall/Ceiling (Kits Included) |
| Operating Temperature |
-10 to 70° C (14 to 158° F) |
| Operating Humidity |
5 to 95% Noncondensing |
| Certifications |
CE, FCC, IC |
| Advanced Traffic Management |
| VLAN |
802.1Q |
| Advanced QoS |
Per-User Rate Limiting |
| Guest Traffic Isolation |
Supported |
| WMM |
Voice, Video, Best Effort, and Background |
| Concurrent Clients |
1000+ |
| Supported Data Rates (Mbps) |
| Standard |
Data Rates |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11b |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
