The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 802.11b/g/n wireless AP with antennas built in.
It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

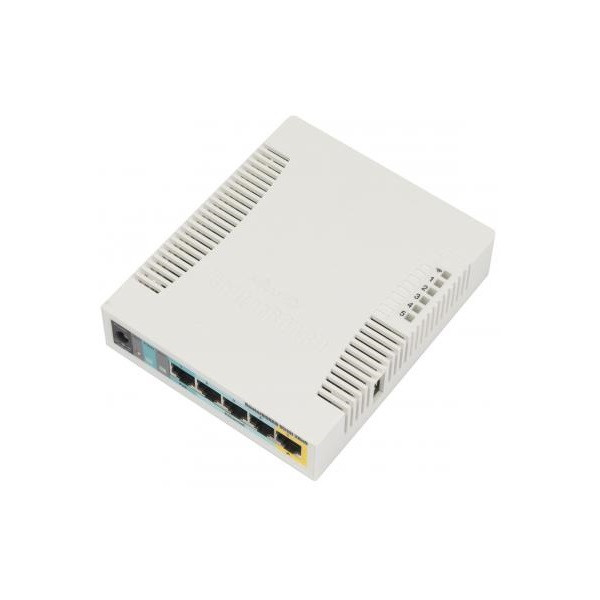

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.
Specifications
| Details |
| Product code |
RB951Ui-2HnD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
113x138x29mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-20C +50C |
| |
|
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
9-30 V |
| Max out per port output (input < 30 V) |
500 mA |
| Max total out (A) |
500 mA |
| Max power consumption |
6.5 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz chip model |
AR9344 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
30 |
-96 |
| 54MBit/s |
25 |
-80 |
| MCS0 |
30 |
-96 |
| MCS7 |
23 |
-78 |
Included parts
