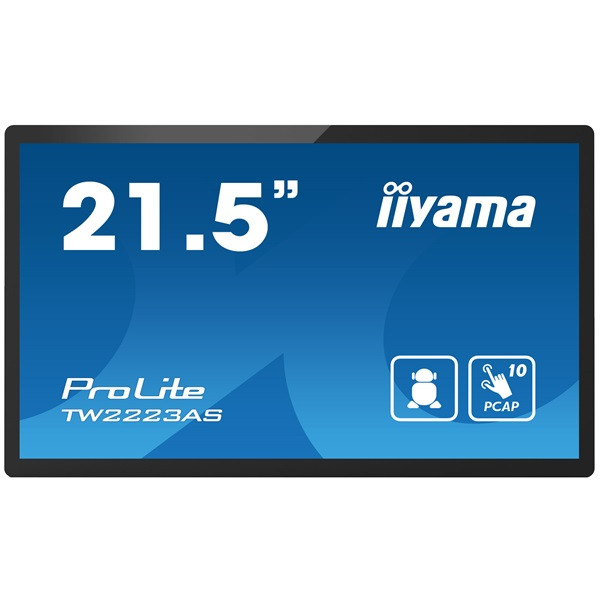

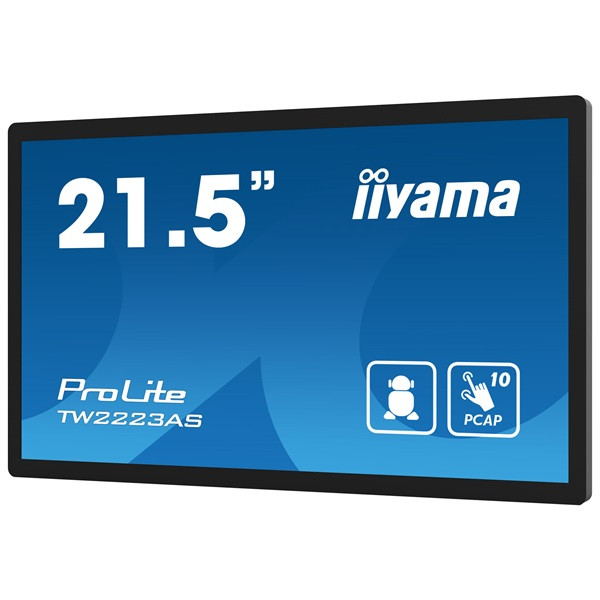

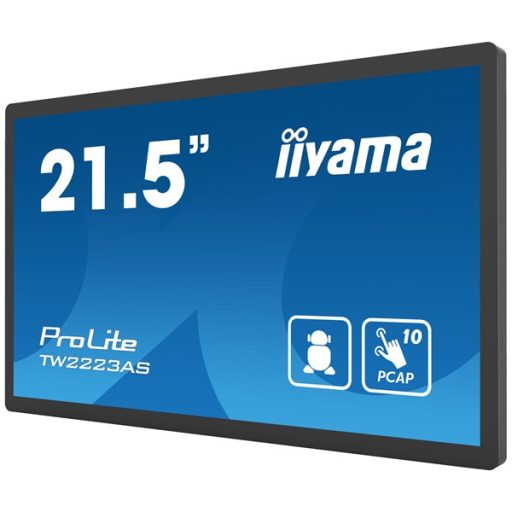

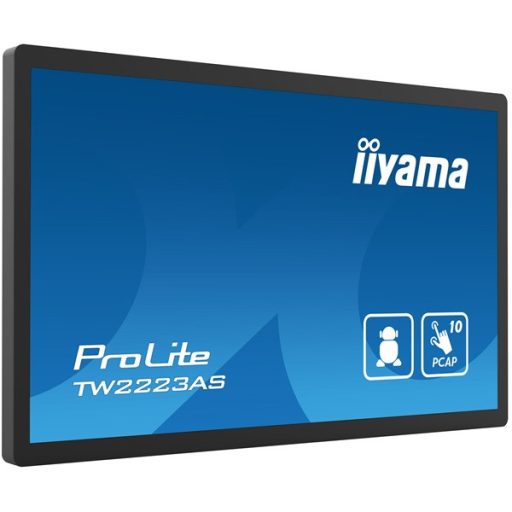

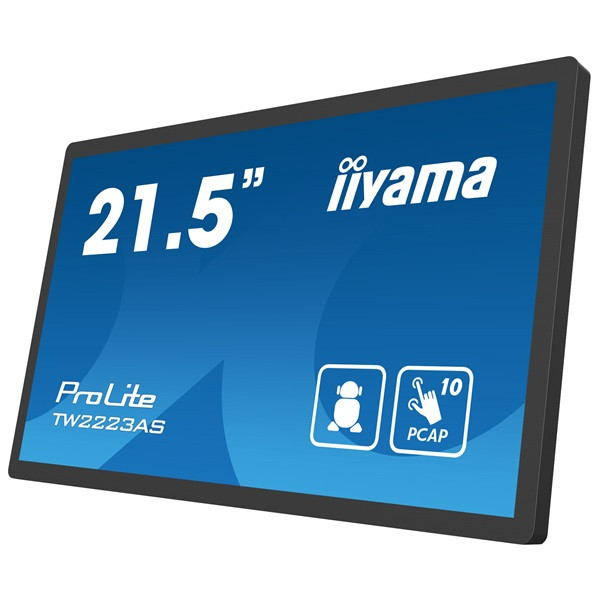

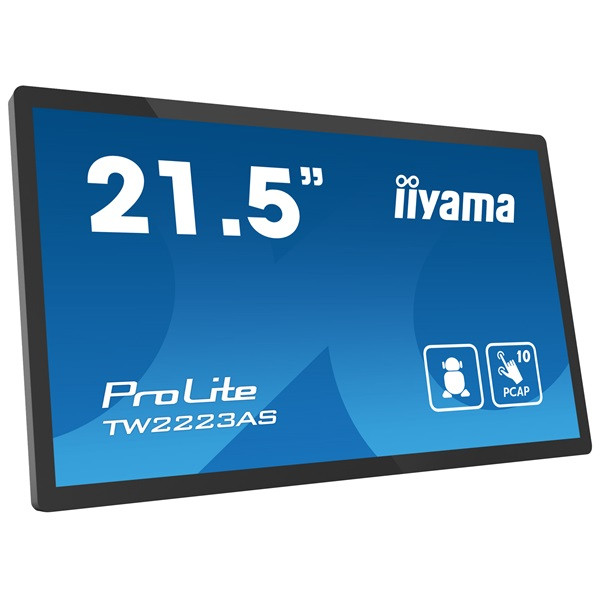

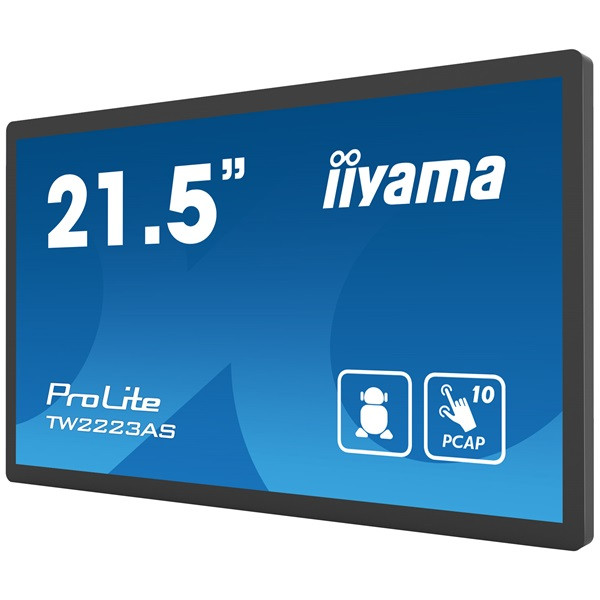

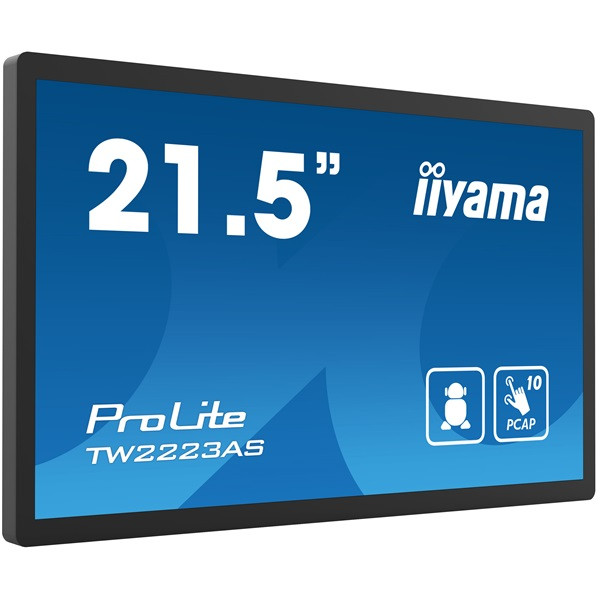

ProLite TW2223AS-B2 |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
21.5", 54.6cm |
| Panel |
VA |
| Native resolution |
1920 x 1080 (2 megapixel HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
400 cd/m² |
| Brightness |
345 cd/m² with touch |
| Light transmittance |
85% |
| Static contrast |
3000:1 with touch |
| Response time (GTG) |
18ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln |
| Horizontal Sync |
30. - 84.kHz |
| Viewable area W x H |
478 x 269.5mm, 18.8 x 11.8" |
| Pixel pitch |
0.248mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch accuracy |
+- 2mm |
| Touch method |
finger, glove (latex), capacitive stylus |
| Touch interface |
USB |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal output |
HDMI x1 (1920x1080 @60Hz) |
| Audio output |
Mini jack x1
Speakers 2 x 2W |
| HDCP |
yes |
| USB ports |
x5 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 2x serial port (for maintenance use), 1x USB OTG) |
| RJ45 (LAN) |
x1 (10M/100M/1000M) |
| Microphone |
x1 |
| |
|
| FEATURES |
|
| Integrated software |
Android 12 with GMS |
| CPU |
Rockchip RK3399 Hexa-core A72*2 + A53*4 |
| GPU |
T860 MP4 |
| Storage |
32Gb eMMC |
| Memory |
4Gb LPDDR4 |
| WiFi |
IEEE802.11a/b/g/n/ac |
| Bluetooth |
5,2 |
| Extra |
auto-rotation, SD card slot |
| Max. non-stop operating time |
24/7 |
| Anti image retention |
yes |
| Glass thickness |
2.9mm |
| Glass hardness |
6H |
| |
|
| GENERAL |
|
| Control buttons |
Power switch |
| Applications |
Lock applications, manage restart time, manage power on/off, calculator, calender, Chrome, alarm/ clock, Timer, Stopwatch, Manage files, orginize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos |
| Flicker free |
yes |
| |
|
| MECHANICAL |
|
| Orientation |
landscape, portrait, face-up |

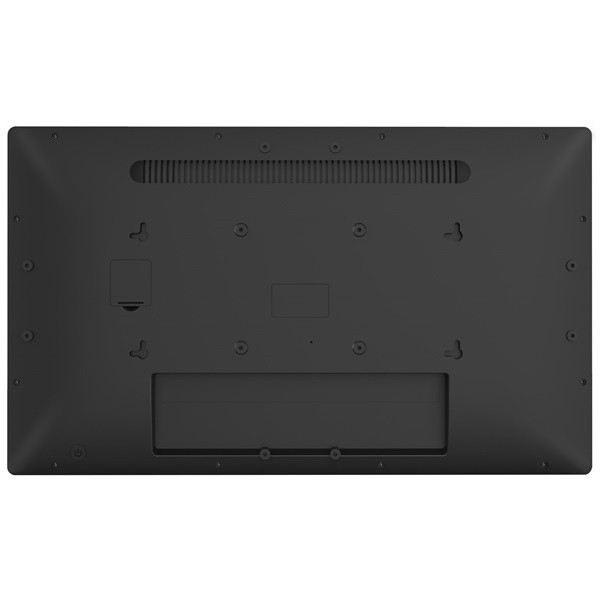

| VESA mounting |
100 x 100mm |
| Cable management system |
yes |
| MTBF |
50000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power |
| Guides |
quick start guide, safety guide |
| Other |
AC adapter |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
external |
| Power supply |
DC 12 V |
| Power usage |
23W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
504.5 x 302 x 32mm |
| Box dimensions W x H x D |
640 x 410 x 121mm |
| Weight (without box) |
3.61kg |
| Weight (with box) |
5.98kg |
| EAN code |
4948570124787 |
| |
|
