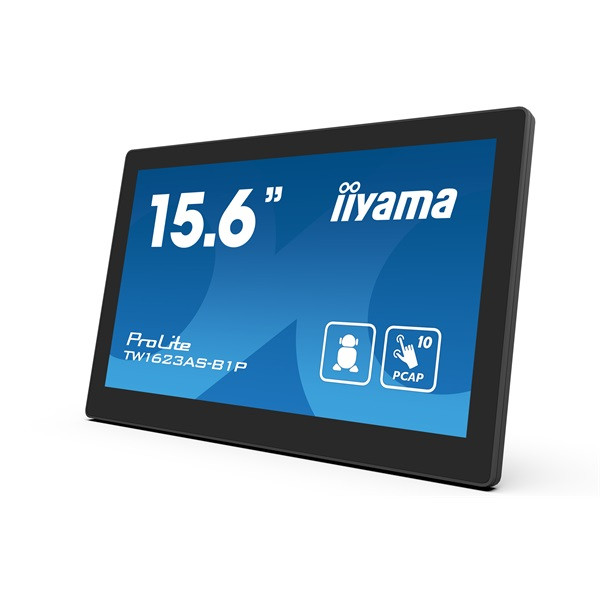

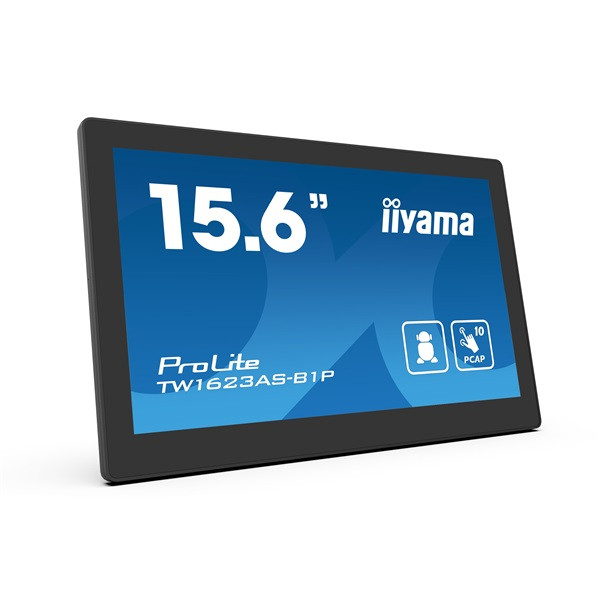

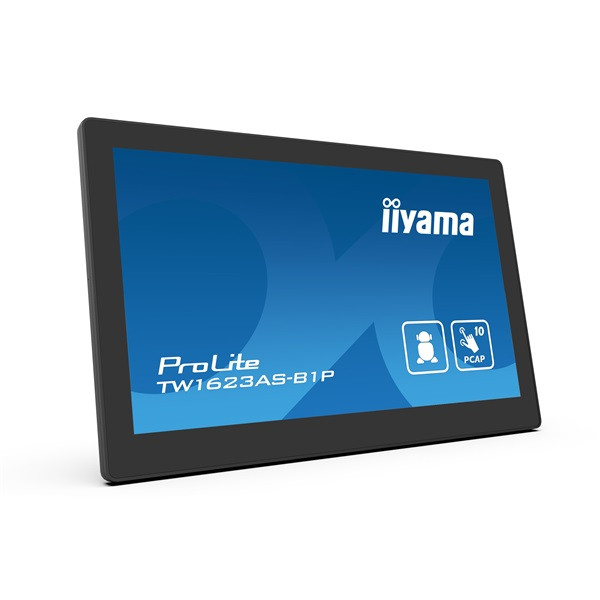

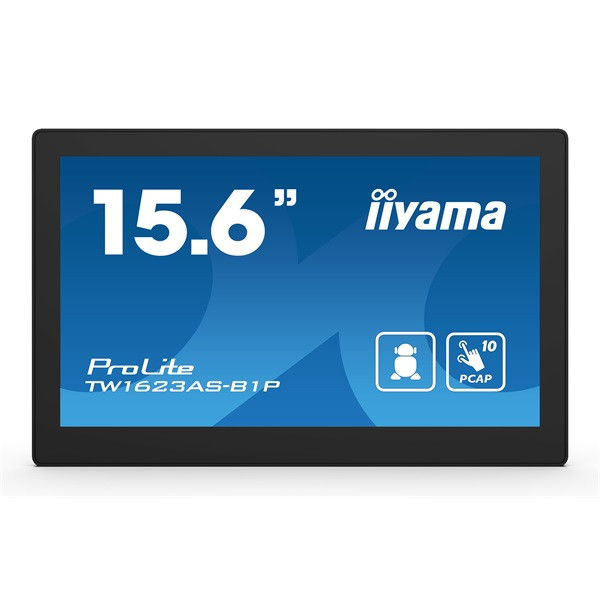

ProLite TW1623AS-B1P |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
15.6", 39.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 (2 megapixel HD) |
| Aspect ratio |
16:9 |
| Panel brightness |
450 cd/m² |
| Brightness |
385 cd/m² with touch |
| Light transmittance |
86% |
| Static contrast |
1000:1 with touch |
| Response time (GTG) |
30ms |
| Viewing zone |
horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85° |
| Colour support |
16.7mln 8bit |
| Viewable area W x H |
344.2 x 193.6mm, 13.5 x 7.6" |
| Pixel pitch |
0.17925mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch method |
finger, glove (latex), capacitive stylus |
| Touch interface |
USB |
| |
|

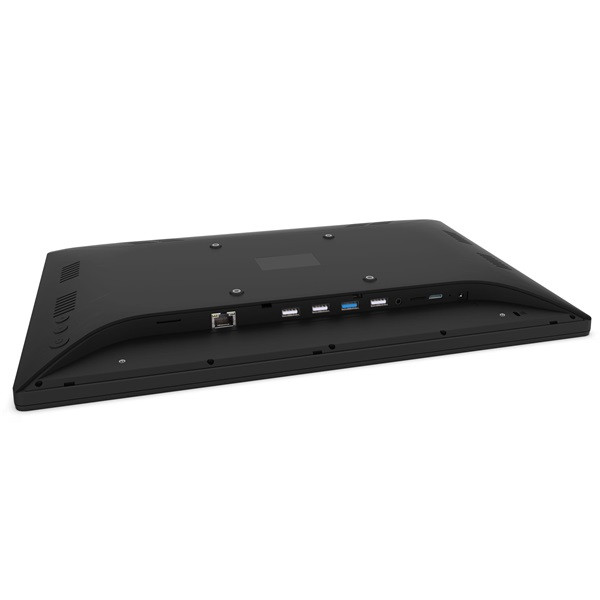

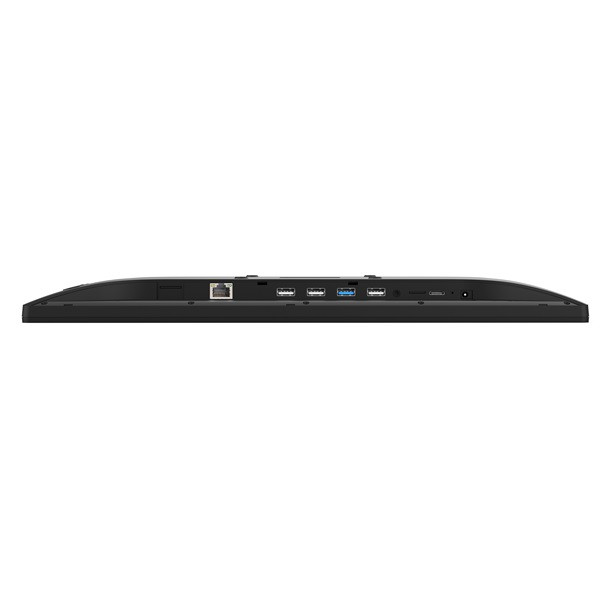

| INTERFACES / CONNECTORS / CONTROLS |
|
| Monitor control input |
RJ45 (LAN) x1 (PoE - IEEE802.3 at/Max. 30W) |
| Digital signal output |
HDMI x1 (mini HDMI, 1920x1080 @60Hz) |
| Audio output |
Mini jack x1
Speakers 2 x 2W |
| USB ports |
x3 (2.0 (DC5V, 500mA)) |
| Microphone |
x1 |
| |
|
| FEATURES |
|
| Integrated software |
Android 13 |
| CPU |
Rockchip RK3568 Quad-core A55*4 |
| GPU |
G52 MP2 |
| Storage |
32GB eMMC |
| Memory |
4GB DDR4 |
| WiFi |
IEEE802.11a/b/g/n/ac |
| Bluetooth |
5,2 |
| Extra |
auto-rotation, microphone, SD card slot, anti-fingerprint coating |
| Max. non-stop operating time |
24/7 |
| Anti image retention |
yes |
| Glass thickness |
1.8mm |
| Glass hardness |
6H |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| Control buttons |
Volume +, volume -, power |
| Applications |
Lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm / clock / timer, / stopwatch, manage files & folders, organize albums, Gmail, play audio files, Play store, search engine, system preferences, sound recorder, play video files |
| |
|
| MECHANICAL |
|
| Orientation |
landscape, portrait, face-up |

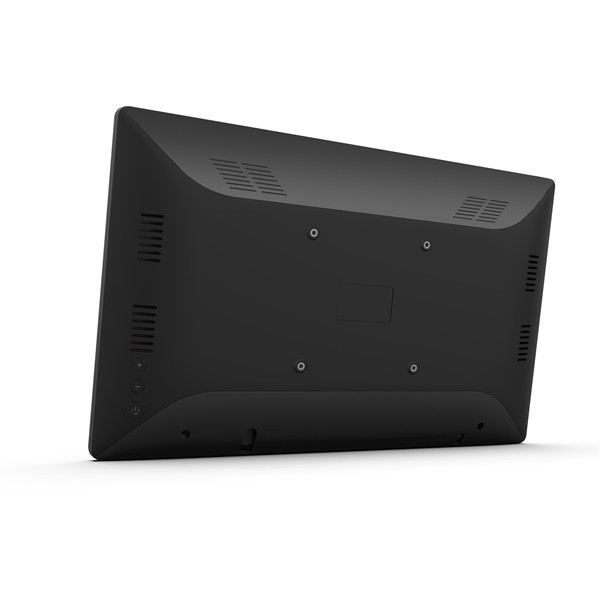

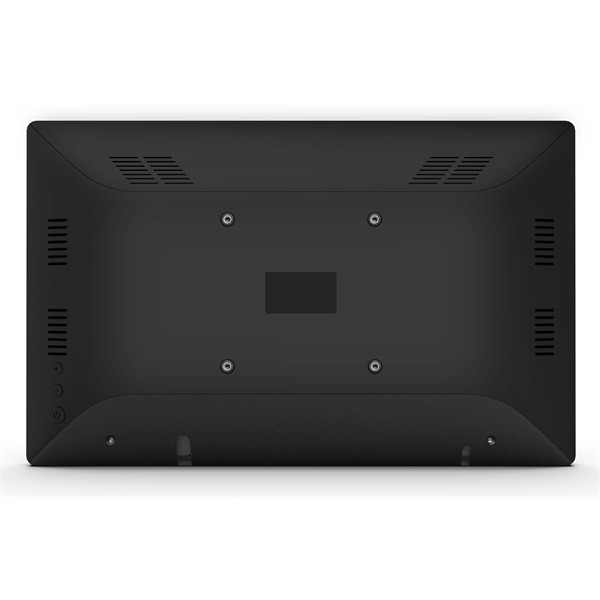

| VESA mounting |
100 x 100mm |
| |
|
| ACCESSORIES INCLUDED |
|
| Guides |
quick start guide, safety guide |
| Other |
AC adapter |
| Cable cover |
yes |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
external |
| Power supply |
DC 12 V |
| Power usage |
24W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
387 x 244 x 30.5mm |
| Box dimensions W x H x D |
477 x 295 x 75mm |
| Pallet volume |
150pcs |
| Pallet dimensions W x H x D |
1000 x 1200 x 1760mm |
| Weight (without box) |
1.5kg |
| Weight (with box) |
2.4kg |
| EAN code |
4948570124534 |
| |
|
