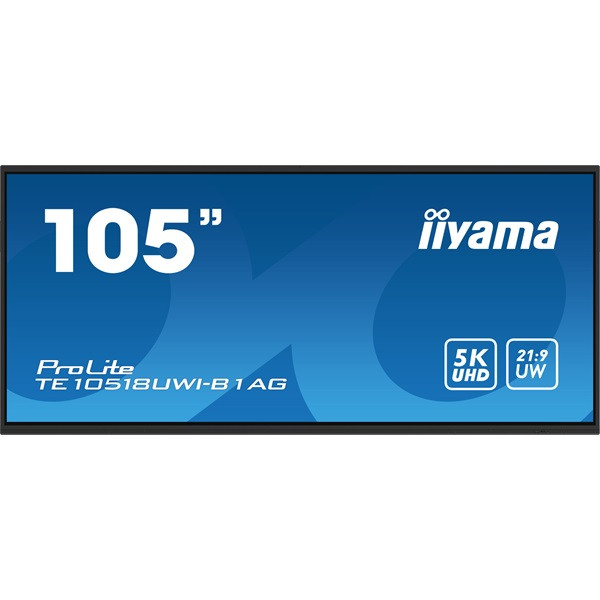

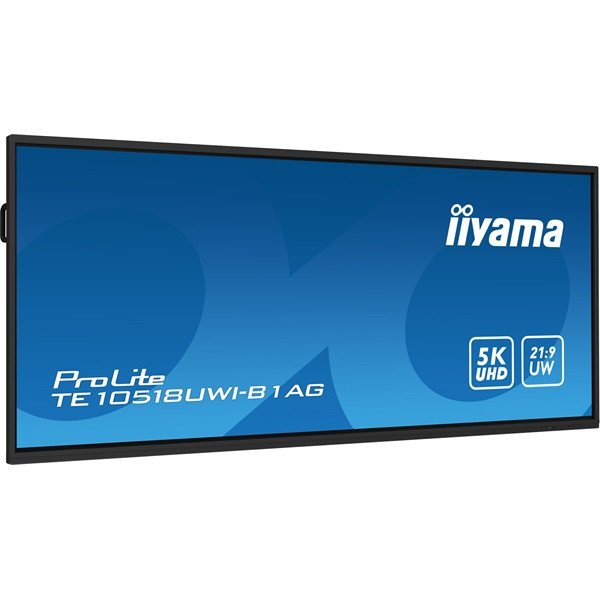

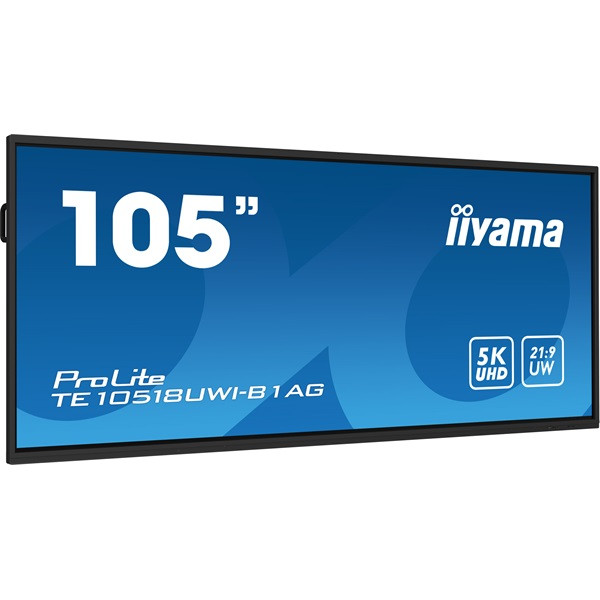

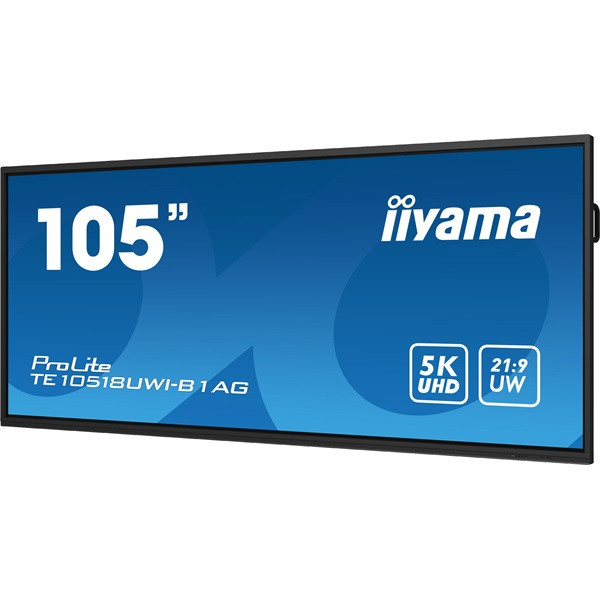

ProLite TE10518UWI-B1AG |
| |
|
| DISPLAY CHARACTERISTICS |
|
| Design |
Thin bezel |
| Diagonal |
104.6", 265.7cm |
| Panel |
VA |
| Touch Glass |
AG coated glass, zero bonding |
| Panel |
VA |
| Native resolution |
5120 x 2160 (14.75 megapixel, 5K UHD) |
| Aspect ratio |
21:9 |
| Panel brightness |
450 cd/m² |
| Light transmittance |
92% |
| Static contrast |
4000:1 |
| Dynamic contrast |
5000:1 |
| Response time (GTG) |
6.5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
1.07B 10bit (NTSC 90%) |
| Horizontal Sync |
30 - 135kHz |
| Viewable area W x H |
2450 x 1033.6mm, 96.5 x 40.7" |
| Pixel pitch |
0.479mm |
| Bezel colour and finish |
black, matte |
| |
|
| TOUCH |
|
| Touch technology |
PureTouch-IR? |
| Touch points |
40, 32pt writing (HID, only with supported OS) |
| Touch accuracy |
+- 1mm |
| Touch method |
stylus, finger, glove |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |
| |
|
| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x4 (1x 2.1, max. ?5120x?2160 @60Hz; 3x 2.0, max. 3840x2160 @60Hz, YUV444)
DisplayPort x1 (1.4, max. ?5120?x?2160 @60Hz)
USB-C x2 (3.2 Gen 1, 3840x2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD) |
| Audio input |
Mini jack x1 |
| Monitor control input |
RS-232c x1 |
| Digital signal output |
HDMI x1 (3840x2160 @60Hz, YUV/RGB444)
USB-C x1 (3.2 Gen 1, 3840x2160 @60Hz (DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display)) |
| Audio output |
S/PDIF (Optical) x1
Mini jack x1
Speakers 2 x 16W (Front + 16W Subwoofer) |
| HDCP |
HDMI, DP & USB-C: 2.3 |
| USB ports |
x8 (media playback / peripherals / storage – front: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 15W PD), back side: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 100W PD), top side: 2x 3.2 (Gen 1, 5Gbit)) |
| RJ45 (LAN) |
x2 (IN/OUT, Auto switch for PC & Android, 1000MB) |
| Microphone |
8-Array (8m voice pick-up, Front facing) |
| |
|
| FEATURES |
|
| Integrated software |
iiWare 11 (Android 13 OS) featuring iiyama DMS, iiyama OS, iiyama Class, Note, web browser, file manager, cloud drives, WPS office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices |
| WiFi |
yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0) |
| Hardware |
CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB |
| Extra |
WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen |
| Kiosk mode |
yes |
| Max. non-stop operating time |
16/7 |
| Anti image retention |
yes |
| Media playback |
yes |
| Glass thickness |
3mm |
| Glass hardness |
7H |
| Housing (bezel) |
metal |
| OSD key lock |
yes |
| |
|
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB |
| Control buttons |
Power, Power Indicator, Remote Sensor, Ambient Light Sensor, USB-C Connector (3.2), USB Connector (3.2), Microphone Indicator |
| User controls |
common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless & networks, personal, input & output, application, system) |
| Blue light reducer |
yes |
| Plug&Play |
DDC2B |
| Warranty |
5 years (for details and eligible countries please check the Warranty section of our website) |
| |
|
| MECHANICAL |
|
| Orientation |
landscape |
| Fanless design |
yes |

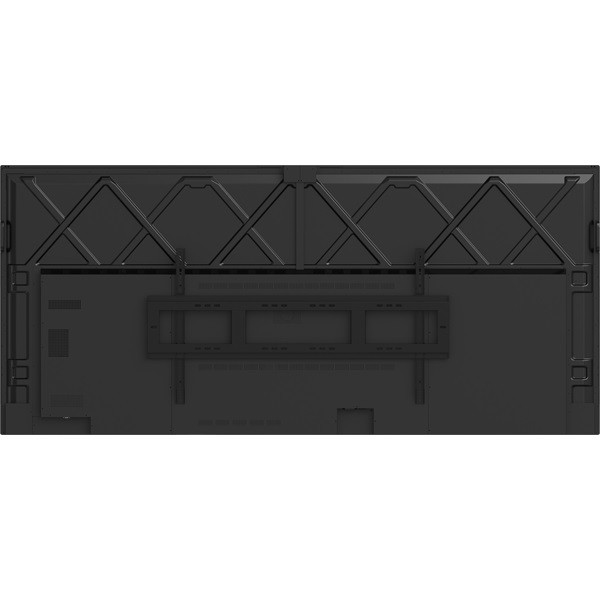

| VESA mounting |
1000 x 400mm |
| Operation temperature range |
0°C - 40°C |
| Storage temperature range |
- 20°C - 60°C |
| MTBF |
50.000 hours (excluding backlight) |
| |
|
| ACCESSORIES INCLUDED |
|
| Cables |
power, USB, HDMI |
| Touch pen |
x4 (Dual function tips, Anti-Bacterial) |
| Guides |
quick start guide, safety guide |
| Other |

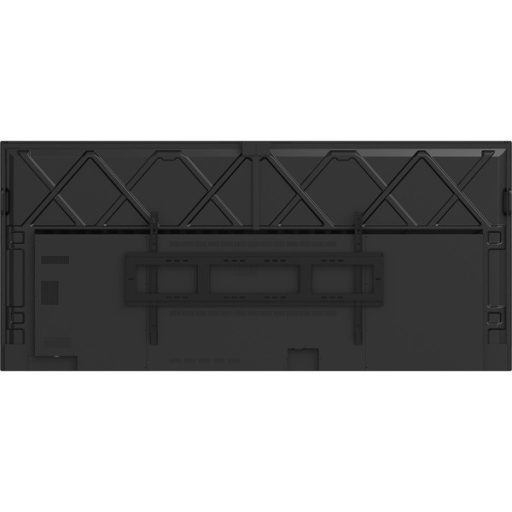

WiFi Module (OWM002), Wall Mounting Bracket (VESA 1000x400mm), Mounting bracket for NUC, Mounting bracket for webcam |
| Remote control |
yes (batteries included) |
| |
|
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
282W typical, 0.5W stand by, 0.3W off mode |
| |
|
| SUSTAINABILITY |
|
| Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS) |
| REACH SVHC |
above 0.1%: Lead |
| |
|
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
2507.2 x 1130.1 x 103mm |
| Box dimensions W x H x D |
2668 x 1305 x 280mm |
| Weight (without box) |
91.4kg |
| Weight (with box) |
119.5kg |
| EAN code |
4948570122011 |
| |
|
