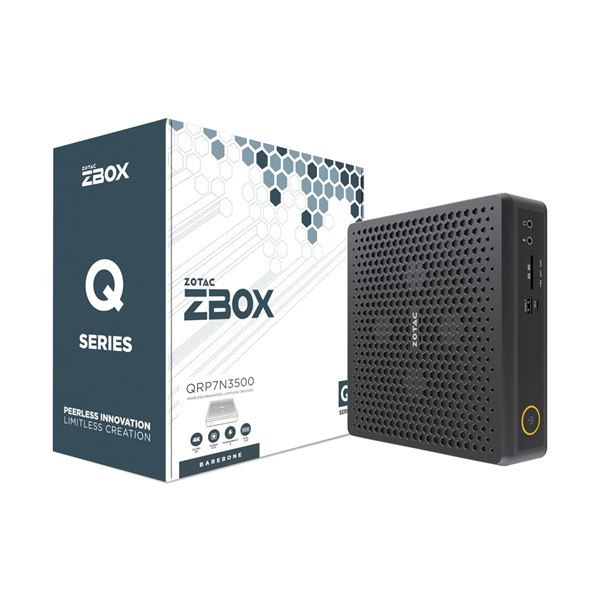

ZOTAC PC ZBOX, Intel Core i7 13700HX 5GHz, 2xHDMI, 2xDisplayport, 2xLAN, 5xUSB, 1xTB, Wifi, BT, RTX 3500 Ada

 Computing System

• Processor

  Intel Core i7-13700HX (16-core 2.1 GHz, up to 5.0 GHz)

• Chipset

  Intel, NVIDIA

• System Memory

  2 x DDR5-4800 SO-DIMM Slots (up to 64GB)

 Graphics

• Graphics Engine

  NVIDIA RTX 3500 (12GB GDDR6 192-bit)

• Video Output

  2 x HDMI® Connector*
  2 x DisplayPort 1.4a (up to 7680x4320@60Hz)
  Up to Quad Display Support
  *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification

 Storage

• Hard Drive

  N/A

• Mass Storage

  N/A

• Optical Drive

  N/A

• mSATA

  N/A

• M.2

  1 x M.2 NVMe PCIe 4.0 x4 slot (2230, 2242, 2280, 22110), 1 x NVMe M.2 PCIe 4.0 x4 / SATA SSD slot (2230, 2242, 2280, 22110)

• Card Reader

  3-in-1 (SD/SDHC/SDXC)

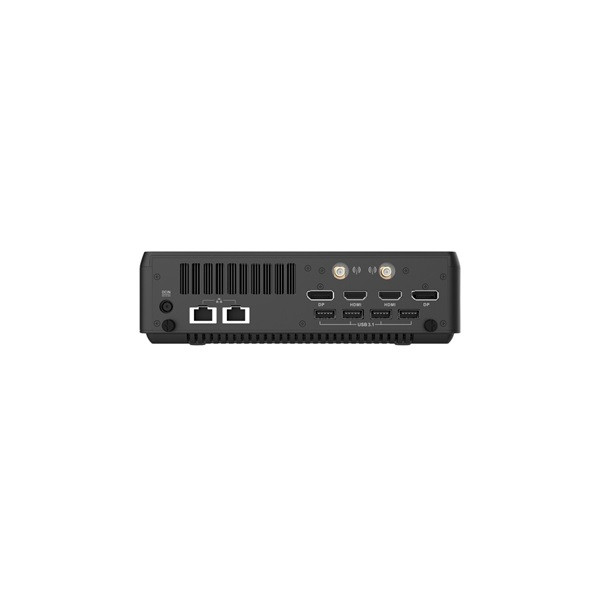

 I/O Ports

• Audio

  Microphone, Headphone, HDMI

• USB Port

  5 x USB 3.1 GEN 2

• LAN

  Dual LAN (2.5Gbps Ethernet)

• Antenna

  Dual WiFI SMA connetor

• Wifi

  WiFi 6

• Bluetooth

  Bluetooth 5.2

• Legacy I/O

  N/A

• CIR Infrared Port

  N/A

• Thunderbolt

  1 x Thunderbolt 4 (data only)

• USB

  N/A

• IDE

  N/A

• VGA

  N/A

 Mechanical

• Kensington Lock

  Yes

• LED Indicators

  Power, HDD, WiFi

• Power Supply

  AC Adapter
  O/P: DC 19.5V/330W

• Cooling system

  Fan + Heatsink

• ZBOX Dimensions

  210mm x 203mm x 62.2mm (8.27in x 7.99in x 2.45in)

• Case Mounting

  None

 Miscellaneous

• Supported OS

  Windows 11 ready

• Accessories

  2 x WiFi antenna
  AC Adapter
  Power Cord (bundled cable type dependent on region)
  Warranty Card
  Quick Install Guide
  Flash drive with O/S driver
