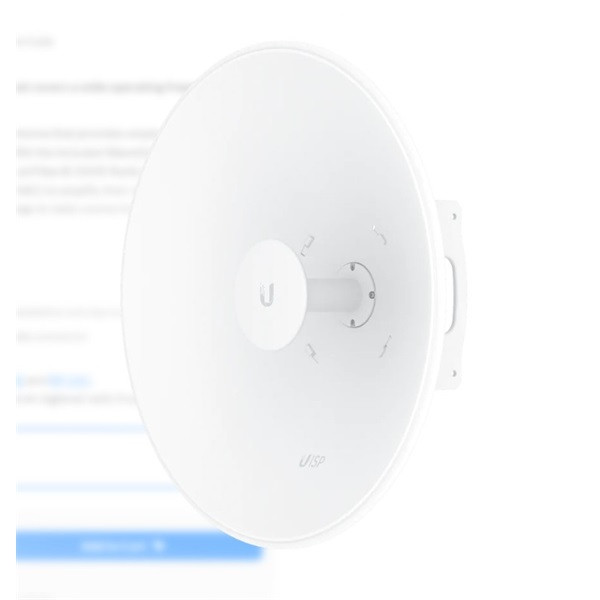

Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

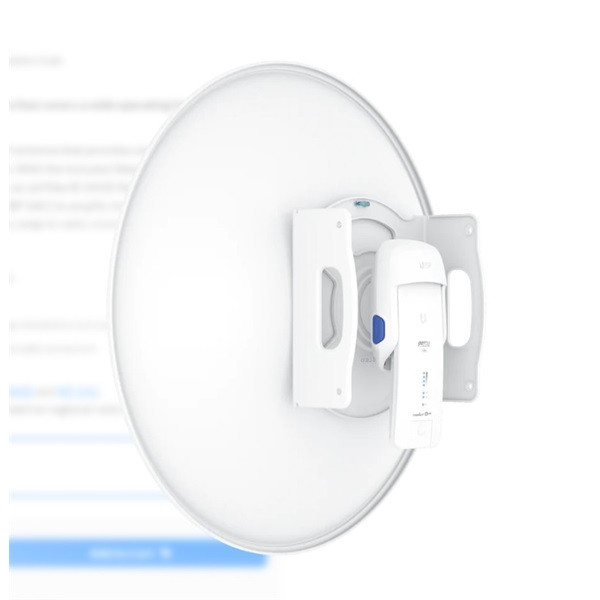

The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.
Features:
Notes: Compatible with the AF 5XHD and RP 5AC.
Operation frequency may vary based on regional radio frequencies and regulations.
-
- Frequency range: 5.15 - 6.875 GHz
- 30+ km PtP link range

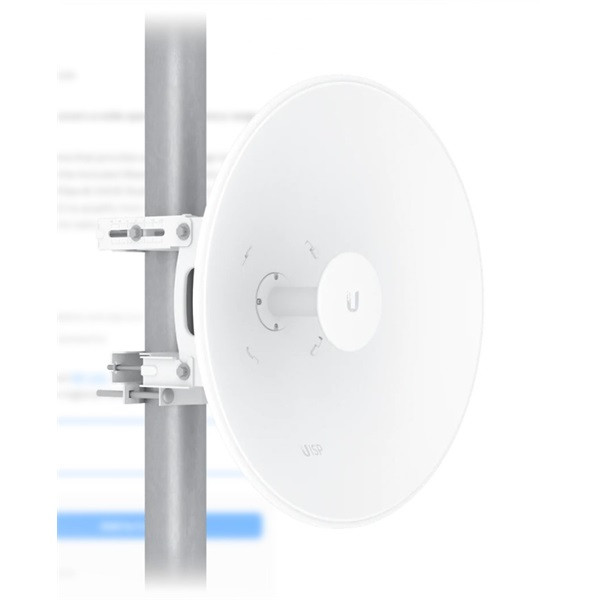

- Precision mounting bracket for easy installation and alignment
- Two side latches for secure, snap-in radio connection
-
| Mechanical |
| Dimensions |
O 650 x 200 mm (O 25.6 x 7.9") |
| Weight |
Device: 4.54 kg (10 lb)
Mount: 3.1 kg (6.8 lb) |
| Enclosure materials |
Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind survivability |
Up to 200 km/h (124 mph) |
| Wind loading |
860 N at 200 km/h |
| Mounting |
Alignment mounting kit (included)
Mechanical adjustment: ±15° elevation
Pole compatibility: O40 to 90mm (O1.57 to 3.5") |
| Weatherproofing |
IPX6 |
| Hardware |
| Frequency range |
5.15 to 6.875 GHz |
| Gain |
30 dBi |
| Beamwidth |
Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical downtilt |
0° |
| Maximum VSWR |
2:1 |
| Polarization |
Dual-linear |
| Cross-pol isolation |
20 dB |
