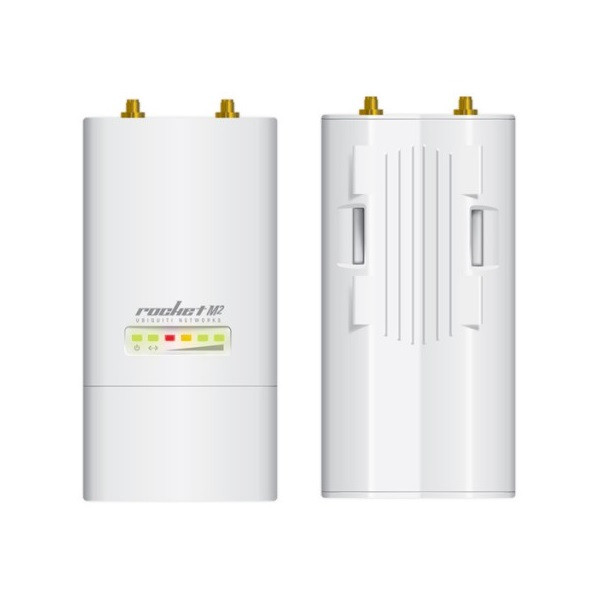

| ROCKETM2 |
| Dimensions |
160 x 80 x 30 mm
(6.30 x 3.15 x 1.18") |
| Weight |
500 g
(1.1 lb) |
| Port |
(1) 10/100 Ethernet Port |
| RF Connectors |
(2) RP-SMA (Waterproof) |
| Enclosure |
Outdoor UV Stabilized Plastic |
| Max. Power Consumption |
6.5W |
| Power Supply |
24V, 0.5A PoE Adapter (Included) |
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Certifications |
CE, FCC, IC |
| Operating Temperature |
-30 to 75° C
(-22 to 167° F) |
| Operating Humidity |
5 to 95% Noncondensing |
| Shock and Vibration |
ETSI300-019-1.4 |
| Operating Frequency (Mhz) |
2402 - 2462 |
| Processor |
MIPS 24Kc |
| Memory |
128 MB SDRAM, 8 MB Flash |
| Networking Interface |
(1) 10/100 Mbps |
| RF Connections |
(2) RP-SMA (Waterproof ) |
| LEDs |
Power, Ethernet, (4) Signal Strength |
| Enclosure Characteristics |
Outdoor UV Stabilized Plastic |
| ESD/EMP Protection |
± 24KV Air / Contact |
| Wireless Approvals |
FCC, IC, CE |
| RoHS Compliance |
Yes |
| Modes |
Access Point, Station |
| Services |
Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities |
Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment |
Dynamic Ack and Ackless Mode |
| Power Adjustment |
Software Adjustable UI or CL |
| Security |
WPA2 AES Only |
| QoS |
Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting |
Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other |
Remote Reset Support, Software Enabled/Disabled, VLAN Support,64QAM,
5/8/10/20/30/40 MHz Channel Width Support |
| Ubiquiti Specific Features |
airMAX Mode, Traffic Shaping with Burst Support,
Discovery Protocol, Frequency Band Offset, Ackless Mode |
