| Mechanical |
| Dimensions |

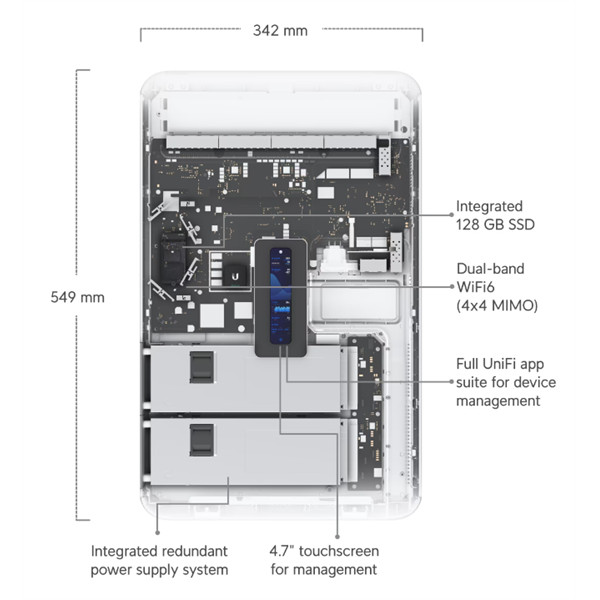

549 x 342 x 62 mm (21.6 x 13.5 x 2.4") |
| Weight |
8.6 kg (19 lb) |
| Enclosure materials |
Polycarbonate, galvanized steel, aluminum alloy |
| Mount material |
Stainless steel |
| Hardware |
| Processor |
Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System memory |
4 GB DDR4 |
| On-board storage |
16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card |

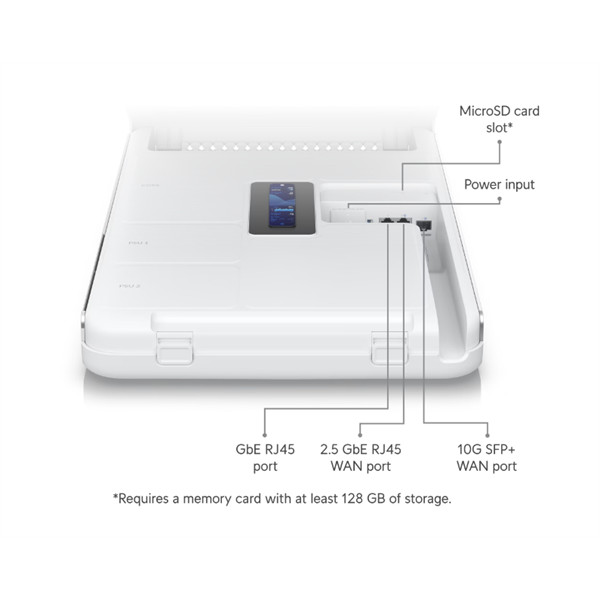

| Expansion slot |
Micro SD memory card*
*Requires a memory card with at least 128 GB of storage. |
| Management interface |
Ethernet
Bluetooth
WiFi |

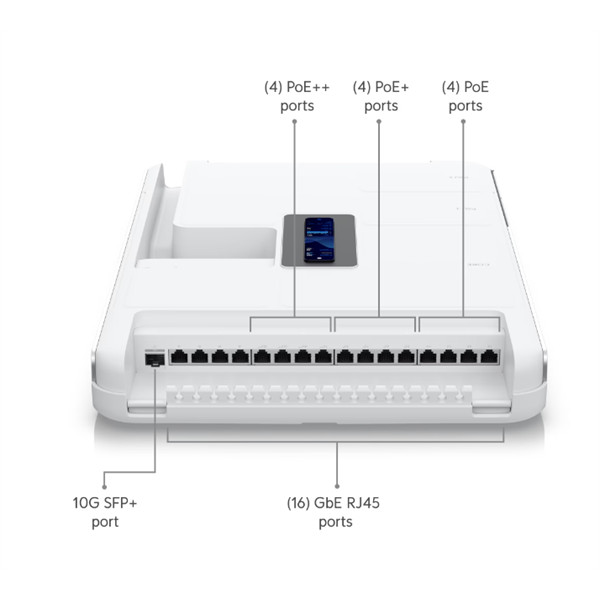

| Networking interface |
(17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface |
(1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port |
| PoE interface |
(4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Power method |
Universal AC input 100—240V AC, 7A Max., 50/60Hz |
| Power supply |
(2) Hot-Swappable AC/DC 550W PSU*
*Comes with (1) pre-installed PSU. |
| Max. power consumption |
532W |
| Max. PoE wattage per port by PSE |
PoE: 15.4W
PoE+: 30W
PoE++: 60W |
| Voltage range PoE mode |
PoE: 44—57V
PoE+/PoE++: 50—57V |
Max. TX power
2.4 GHz
5 GHz |
23 dBm
26 dBm |
MIMO
2.4 GHz
5 GHz |
2 x 2
4 x 4 |
Throughput rate
2.4 GHz
5 GHz |
300 Mbps
2.4 Gbps |
Antenna gain
2.4 GHz
5 GHz |
5.9 dBi
6 dBi |
| ESD/EMP protection |
Air: ± 8kV, contact: ± 4kV |
| LCM display |
(1) 4.7" touchscreen |
| Button |
Factory reset |
| Mounting |
Wall mount (included) |
| Operating temperature |
-10 to 40° C (14 to 104° F) |
| Operating humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Software |
| WiFi standards |
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 |
| Wireless security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID |
8 per radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
300+ |
| LEDs |
| Ethernet |
White: link/activity |
| SFP+ |
White: link/activity |
| PSU |
Blue: ready
Amber: failure |
| Supported Data Rates |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
