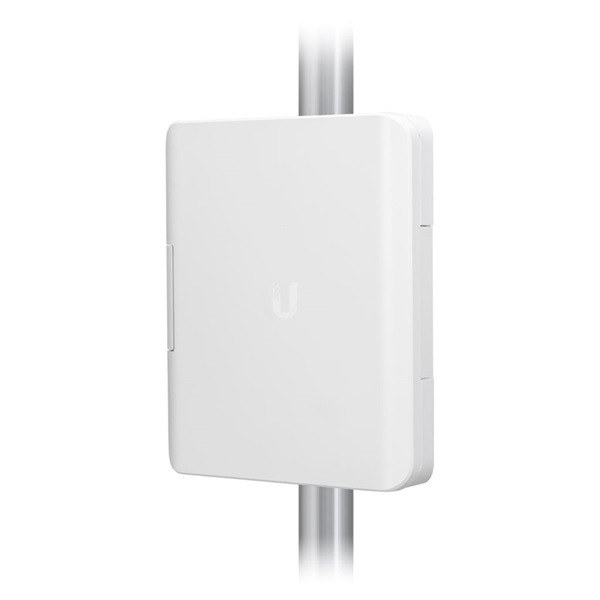

| USW-Flex-Utility |
| Dimensions (with Mount) |
249 x 218 x 60 mm (9.80 x 8.58 x 2.36") |
| Weight (with Mount) |
740 g (26.10 oz) |
| USW-Flex-Utility 60W PoE Adapter |
| Dimensions |
118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36") |
| Weight |
206 g
(7.27 oz) |
| Output Voltage |
54V, 1.11A |
| Rated Voltage |
100-240VAC |
| Input Current |
1.5A (Max.) |
| Efficiency |
> 86% |
| Output Ripple |
200mVpp |
| Line Regulation |
< 1% |
| Load Regulation |
< 3% |
| 4-Pair Powering |
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8- |
| Operating Temperature |
-20 to 60 ° C (-4 to 140 ° F) |
| Storage Temperature |
-30 to 70 ° C (-22 to 158 ° F) |
| Operating Humidity |
5 to 90%, Noncondensing |
| Surge Immunity |
4kV Difference and Common Mode |
* To enable PoE output power, select Power Source PoE Injector in UniFi Application.
