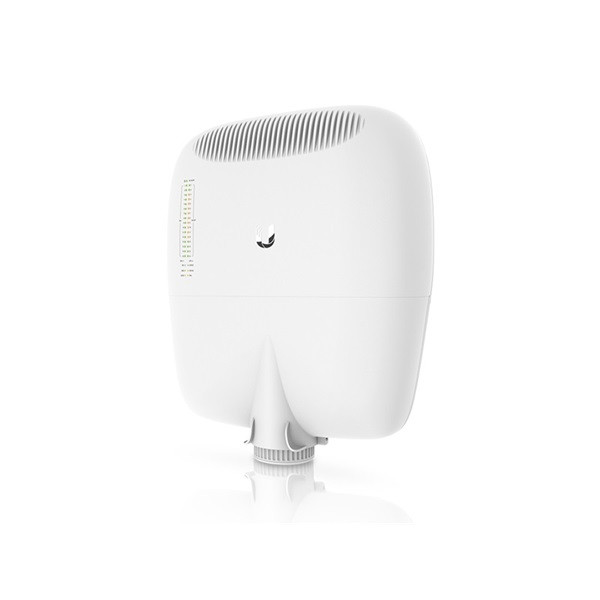

| EP-S16 |
Dimensions
With Wall-Mount |
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
Weight
With Wall-Mount |
3.4 kg (7.50 lb)
3.8 kg (8.38 lb) |
| Max. Power Consumption |
40W (Excludes PoE Output) |
| Power Input |
(1) DC Terminal Block or (2) RJ45 (Ports 1 and 2)
(Self-Correcting Polarity Protection on DC Terminal Block Only,
Diode ORed Protection on All Power Inputs) |
| Power Supply |
Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input |
54V / 6A |
| Passive PoE Input |
(2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2
(Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.) |
| Passive PoE Output |
(4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8)
Passive PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8)
Passive PoE, Ports 5 to 16 |
| Power Monitoring |
(1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power |
| Supported Voltage Range |
+42 to +56VDC (-48V is NOT Supported) |
| Button |
Reset |
LEDs
System
PoE In 1 to 16
SFP |
Power
PoE
Speed/Link/Activity, PoE
Speed/Link/Activity |

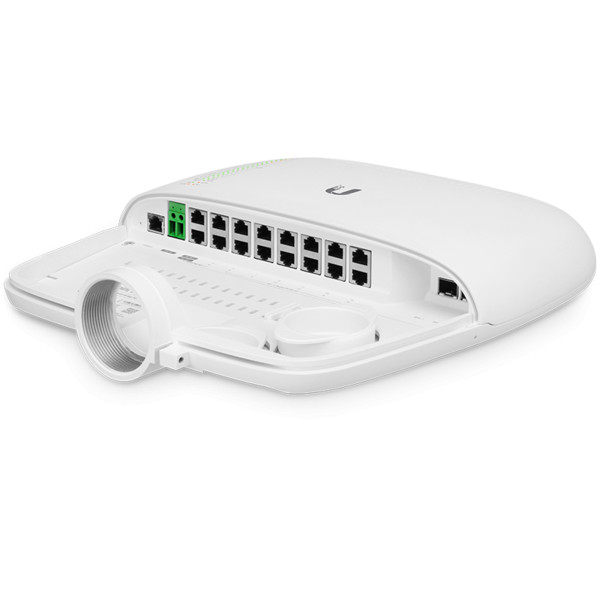

Ports
Serial Console Port
Data Ports |
(1) RJ45 Serial Port
(16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports |

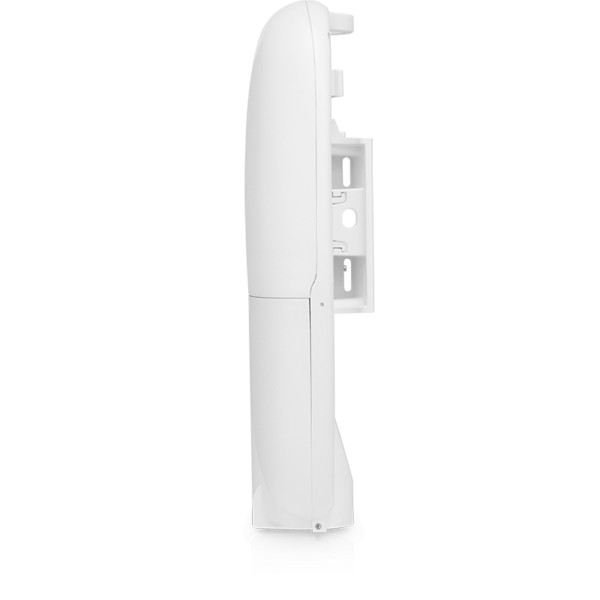

| Pole/Wall Mount |
Yes |
| Operating Temperature |
-40 to 65° C (-40 to 149° F) |
| Operating Humidity |
10 - 90% Noncondensing |
| Certifications |
CE, FCC, IC |
