| EP-R8 |
Dimensions
With Wall-Mount |
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
Weight
With Wall-Mount |
3.4 kg (7.50 lb)
3.8 kg (8.38 lb) |
| Enclosure Characteristics |
Diecast Aluminum Alloy and Polycarbonate with UV Resistance |
| Max. Power Consumption |
40W (Excludes PoE Output) |
| Power Input |
(1) DC Terminal Block
or
(2) RJ45 (PoE In and eth0)
(Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs) |
| Power Supply |
Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input |
54VDC, 6A |
| Passive PoE Input |
(2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In
(PoE In is DC Only, No Data) |
| Passive PoE Output |
(2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7 |
| Power Monitoring |
(1) DC Terminal Block, Input Power
(2) RJ45, PoE In and eth0, Input Power |
| Supported Voltage Range |
56 to 42VDC |
| Button |
Reset |
LEDs
System
eth0
eth1 to eth7
SFP |
Power
Speed/Link/Activity
Speed/Link/Activity, PoE
Speed/Link/Activity |

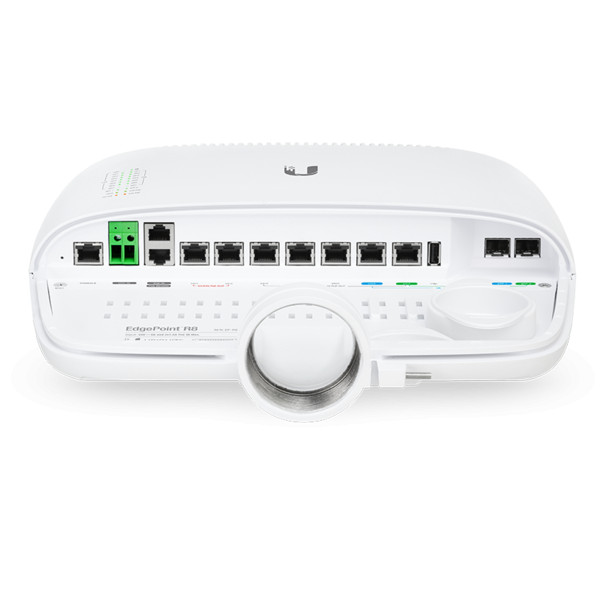

Ports
Serial Console Port
PoE In Port
Data Ports |
(1) RJ45 Serial Port
(1) RJ45 Port
(6) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports |
| Processor |
Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory |
2 GB DDR3-1600 RAM |
| Code Storage |
4 GB |
| Certifications |
CE, FCC, IC |

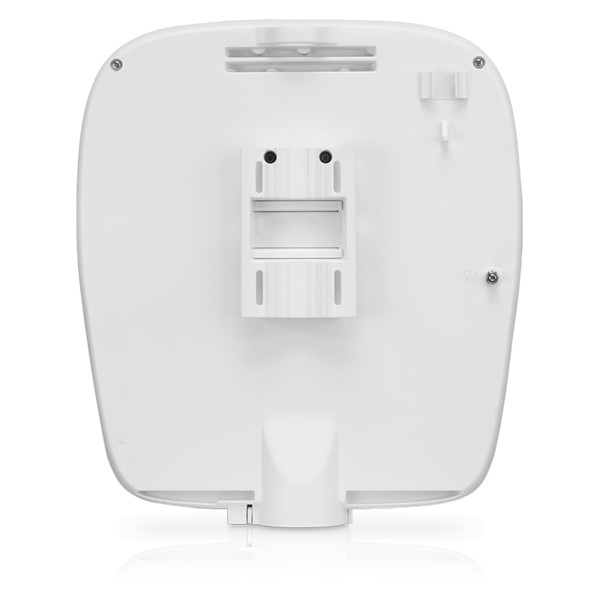

| Pole/Wall Mount |
Yes |
| Wind Loading |
153 N @ 200 km/h (34 lbf @ 125 mph) |
| Wind Survivability |
200 km/h (125 mph) |
| Operating Temperature |
-40 to 65° C (-40 to 149° F) |
| Operating Humidity |
10 to 90% Noncondensing |
