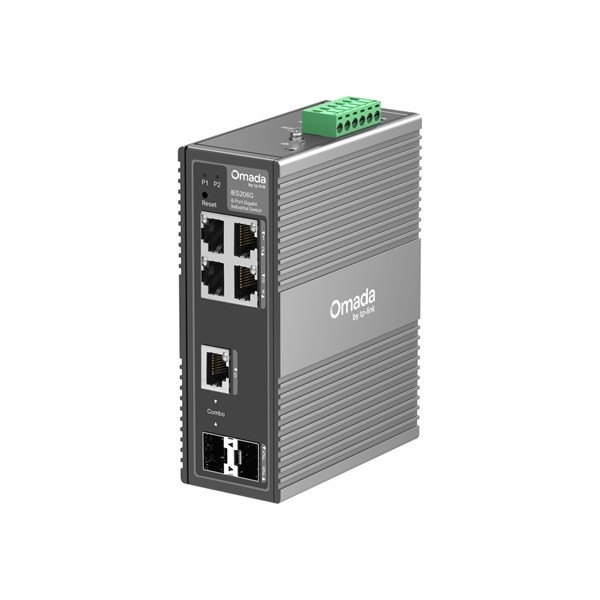

TP-LINK Switch Ipari 4x1000Mbps + 1xGigabit SFP + 1xGigabit kombó SFP Fémházas, IES206G

Name: TP-LINK Switch Ipari 4x1000Mbps + 1xGigabit SFP + 1xGigabit kombó SFP Fémházas, IES206G
Brand: TP-LINK
SKU: CS_380849
Price: 111640 HUF
Availability: InStock

Cikkszám:

CS_380849

TP-LINK Switch Ipari 4x1000Mbps + 1xGigabit SFP + 1xGigabit kombó SFP Fémházas, IES206G

Rendelhető

111 640 Ft

Részletek

CARATTERISTICHE HARDWARE
Interfaccia	• 4× 10/100/1000 Mbps RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Numero ventole	Fanless
Installation	• DIN-rail mounting • Wall mounting

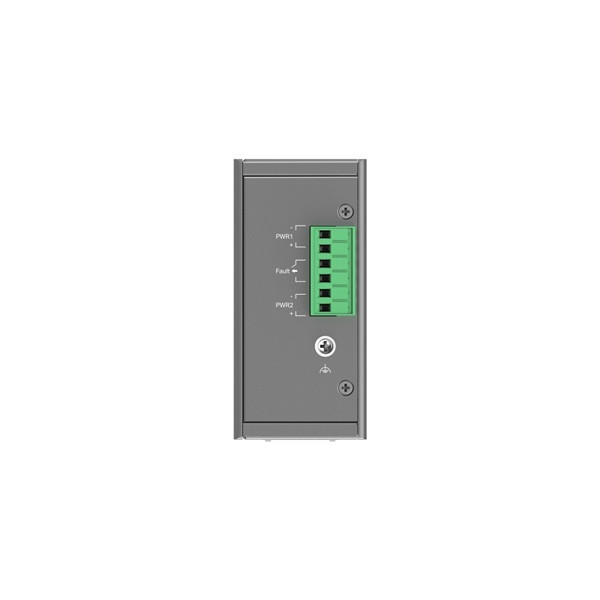

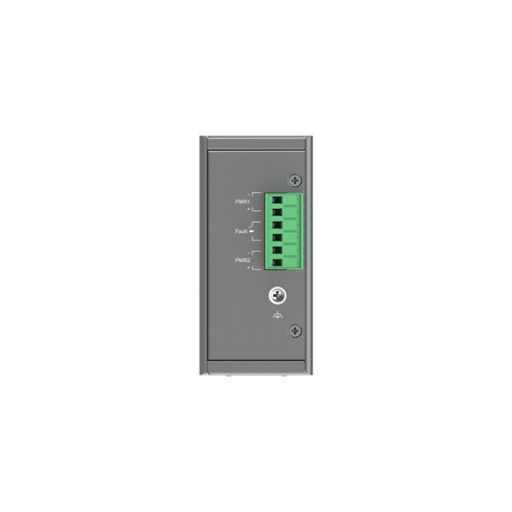

Alimentazione	9.6-60V 1+1 Redundant DC Power Input
Dimensioni ( L x P x A )	5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports

PRESTAZIONI
Capacita di switching	12 Gbps
Packet Forwarding Rate	8.93 Mpps
Tabella ARP	8K
Buffer (pacchetti)	4 Mbit
Jumbo frame	15 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service)	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
Funzionalita L2	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Metodo di trasmissione	Store-And-Forward

GESTIONE
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

ALTRO
Certificazione	FCC, CE, RoHS
Contenuto della confezione	• IES206G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Ambiente	• Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing

Adatok

Gyártó:

TP-LINK

Gyártói cikkszám:

IES206G

Garancia:

60 hónap

Gyártó:

TP-LINK

Rack-be szerelhető:

Van

Switch típus:

Fixed port

Menedzselhetőség:

Web

Portok száma:

Menedzselhető:

Van

PoE (Power over Ethernet):

Nincs

SFP port:
