Connector(s)
Connector Type(s)
8 - USB Type-A (9 pin, 5 Gbps)
2 - USB 3.2 Type-A (9 pin, Fast-Charge)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% ~ 90% RH (Non-condensing)
Hardware
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
Yes
Ports
10
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Industry Standards
USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0/1.1
Chipset ID
VIA/VLI - VL812
Indicators
LED Indicators
10 - Port status (Blue)
Packaging Information
Package Height
6.8 cm [2.7 in]
Package Length
29.0 cm [11.4 in]
Shipping (Package) Weight
0.6 kg [1.4 lb]
Package Width
19.4 cm [7.6 in]
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
Physical Characteristics
Form Factor
Desktop
Weight of Product
144.0 g [5.1 oz]
Color
Black
Material
Plastic
Product Length
20.1 cm [7.9 in]
Product Width
6.0 cm [2.4 in]
Product Height
2.4 cm [0.9 in]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.0 A
Output Voltage
12V DC
Output Current
4 A
Center Tip Polarity
Positive
Plug Type
N
Power Consumption (In Watts)
48
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Host computer with an available USB 3.0 port
Note
If connected to a USB 2.0 host port, performance may be limited
Charge and sync port(s) with a fast-charge icon:
If your host computer is turned off, in sleep mode, or disconnected, the hub will disable data sync mode and enable fast-charge mode automatically
If your host computer is turned on, a charge and sync port will provide a standard charge to a connected device plus simultaneous data sync capabilities

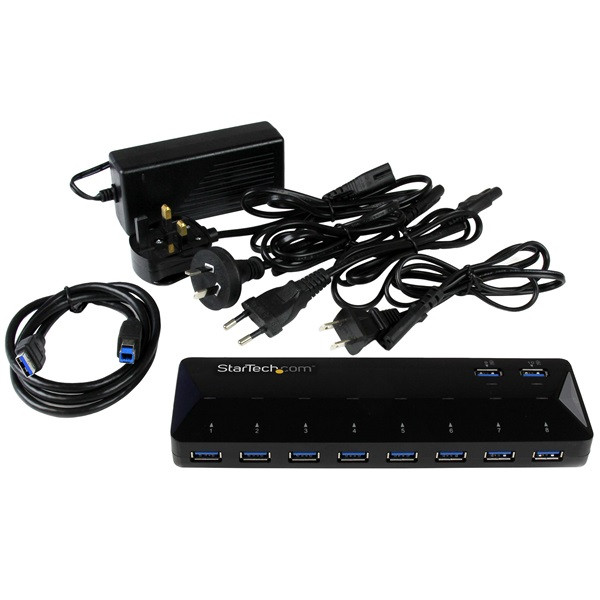

What's in the Box
Included in Package
1 - 10-port USB 3.0 hub with charge & sync ports
1 - USB 3.0 host cable [80 cm/31.5 in.]
1 - universal power adapter
4 - universal power adapter (NA/JP, UK, EU, ANZ)
