Connector(s)
External Ports
2 - HDMI (19 pin)
2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - RJ-45
1 - SD Slot
1 - MicroSD
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 45°C (32°F to 133°F)
Storage Temperature
-10°C to 70°C (14°F to 185°F)
Humidity
10~90% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
2
Interface
USB 3.2 Gen 1
Bus Type
USB-C
Industry Standards
HDMI 2.0
HDR10
DisplayPort 1.4
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Chipset ID
VIA - VL102
VIA - VL817
NOREL Systems - NS1081
ASIX - AX88179A
Synaptics - VMM6210
Indicators
LED Indicators
1 - Connection state/activity LEDs under GbE port.
Packaging Information
Package Length
5.6 in [14.2 cm]
Package Width
6.9 in [17.5 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
6.3 oz [179.0 g]
Performance
Maximum Data Transfer Rate
5 Gbps
Maximum Digital Resolutions
Up to dual 4K (3840 x 2160p) 60Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gray
Product Length
2.3 in [5.9 cm]
Product Width
5.7 in [14.5 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
5.8 oz [165.0 g]
Material
Aluminum
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Output Voltage
5 DC
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Chrome OS™
Special Notes / Requirements
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode).
For a multi-monitor configuration, the computer must support MST
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
A 4K-capable computer is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
What's in the Box
Included in Package

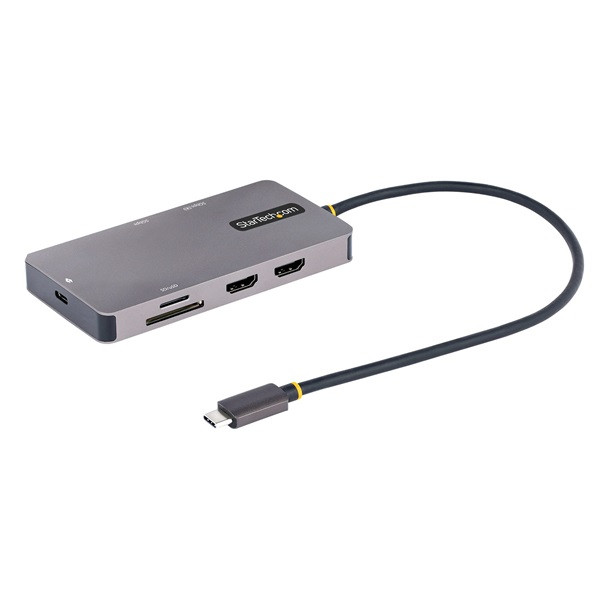

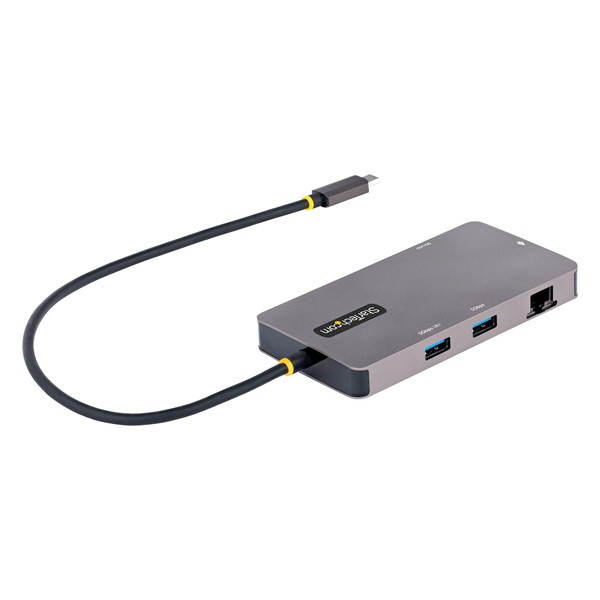

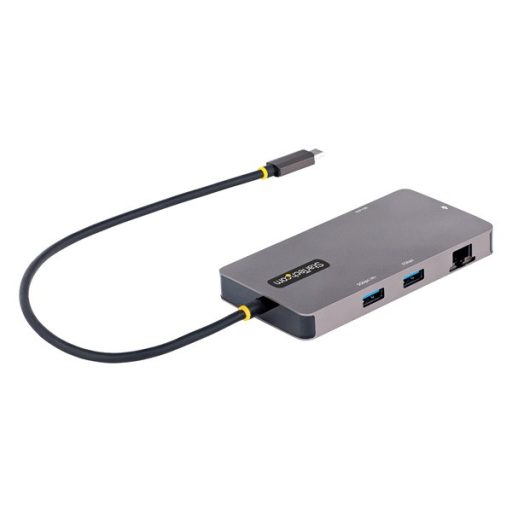

1 - USB-C Multiport Adapter
1 - Quick-Start Guide
