Connector(s)

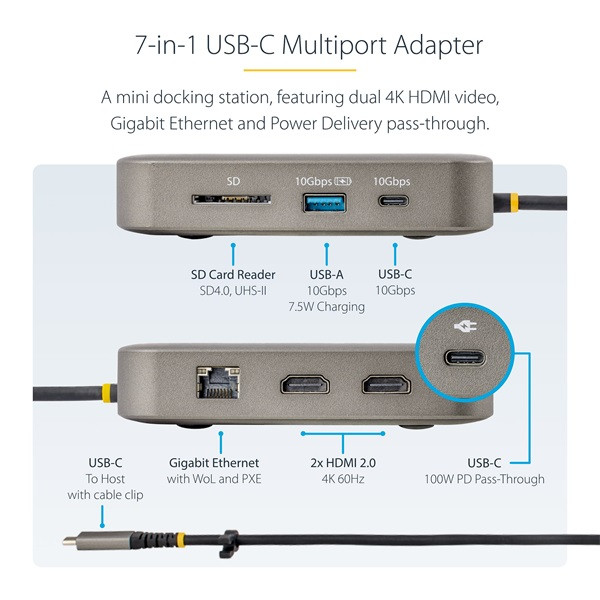

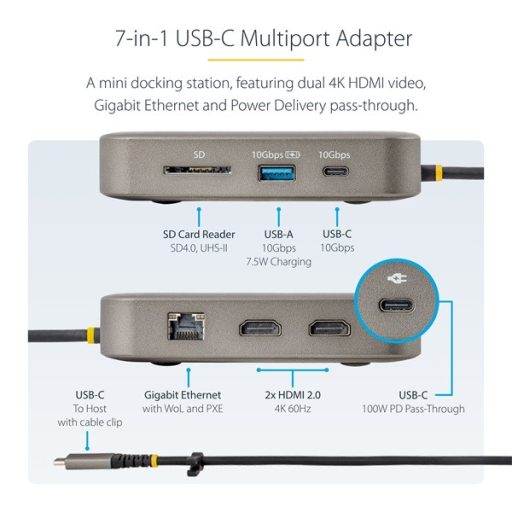

External Ports
2 - HDMI (19 pin)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)
1 - SD / MMC Slot
1 - RJ-45
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
0°C to 35°C (32°F to 95°F)
Storage Temperature
-25°C to 65°C (-13°F to 149°F)
Humidity
0~95% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
2
Interface
USB 3.2 Gen 2 - 10 Gbit/s
Bus Type
USB-C
Industry Standards
HDMI 2.0
USB 3.2 Gen 2 (10Gbps)
USB Power Delivery Specification Rev. 3.0
Chipset ID
VIA - VL103R-Q4
VIA - VL822-Q8
ASMedia - ASM1541
Genesys Logic - GL3232S
Realtek - RTL8211F
DisplayLink - DL-6950
Packaging Information
Package Height
1.8 in [4.5 cm]
Package Length
5.5 in [14.0 cm]
Shipping (Package) Weight
11.2 oz [318.0 g]
Package Width
6.7 in [17.0 cm]
Performance
Maximum Data Transfer Rate
10Gbps
Maximum Digital Resolutions
Dual 4K (4096x2160) 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
General Specifications
Maximum Laptop Charging: 82 W
MTBF
184,713 Hours
Physical Characteristics
Color
Space Gray
Product Height
1.0 in [2.5 cm]
Product Length
4.7 in [12.0 cm]
Weight of Product
8.8 oz [250.0 g]
Product Width
4.7 in [12.0 cm]
Material
Plastic
Cable Length
21.7 in [55 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Output Voltage
5 DC
Power Consumption (In Watts)
18W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™
Special Notes / Requirements
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
