Connector(s)
Connector A
1 - Mini-DisplayPort (20 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10%-85%
Hardware
Active or Passive Adapter
Passive
AV Input
Mini DisplayPort - 1.2
AV Output
HDMI - 1.4
Audio
Yes
Industry Standards
DPCP (DisplayPort Content Protection)
HDCP (High Definition Content Protection)
DisplayPort 1.2
HDMI 1.4
Packaging Information
Shipping (Package) Weight
120 g [4,2 oz]
Package Quantity
1
Package Length
22 cm [8,7 in]
Package Width
41 mm [1,6 in]
Package Height
15 mm [0,6 in]
Performance
Audio Specifications
HDMI - 7.1 Channel Audio
Maximum Digital Resolutions
4K x 2K @ 30 Hz
Supported Resolutions
4k x 2K (Ultra HD)
1920x1200
1920x1080 (1080p)
1280x720 (720p)
Wide Screen Supported
Yes
MTBF
2,183,131 hours
Physical Characteristics
Weight of Product
75,2 g [2,7 oz]
Color
Black
Cable Length
2 m [6,6 ft]
Product Length
2 m [6,6 ft]
Product Width
4,1 cm [1,6 in]
Product Height
1,5 cm [0,6 in]
What's in the Box
Included in Package

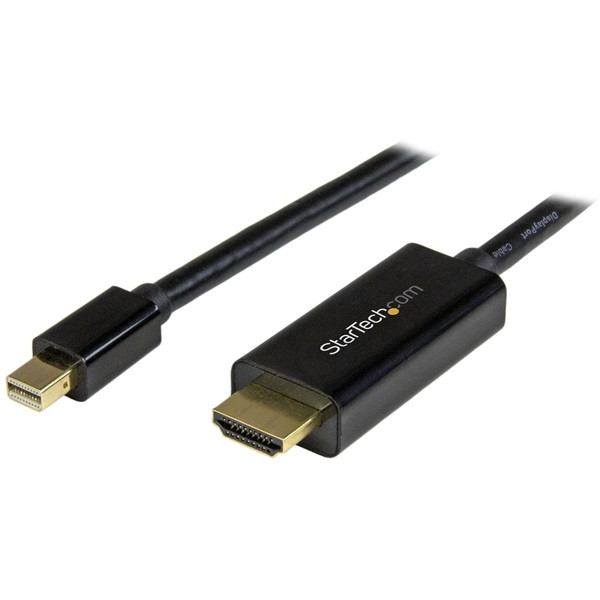

1 - mDP to HDMI adapter cable
